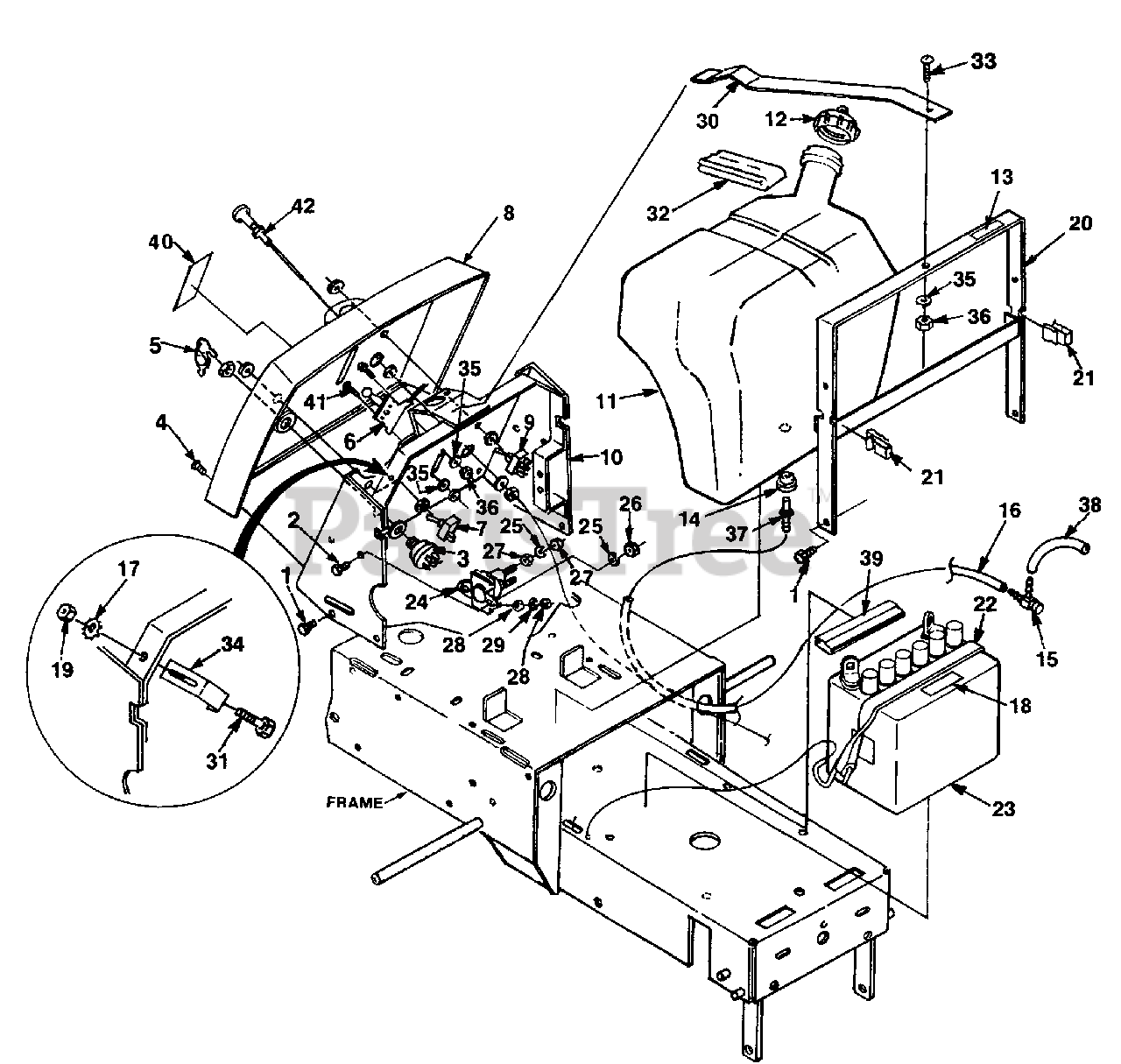

YT 12 (UT-33009) - Homelite Yard Tractor Control Panel, Battery And Gas Tank Parts Diagram

Yard Tractor

Control Panel, Battery And Gas Tank Parts Diagram

  • Title

1

Homelite JA375978

BOLT- 1/4-14 x .44

$

$

Not available

2

Homelite JA400104

SCREW- 1/4-20 x 1/2 hex
(Superseded to UP03379)

$

$

Not available

3

Homelite JA992128

SWITCH- Key

$

$

Currently unavailable

4

Homelite JA409036

SCREW- #10 x 3/4

$

$

Currently unavailable

5

Homelite JA343060

KEY

$

$

Not available

6

Homelite JA992098

CONTROL (12HP)

$

$

Currently unavailable

Homelite JA992177

CONTROL (14HP)

$

$

Currently unavailable

7

Homelite JA158992

SWITCH

$

$

Currently unavailable

8

Homelite JA992179

PANEL- Dash (12HP)

$

$

Currently unavailable

Homelite JA992233

PANEL- Dash (14HP)

$

$

Currently unavailable

9

Homelite JA990135

SWITCH- PTO
(Superseded to UP06659)

$

$

Not available

10

Homelite JA992178

CONTROL TOWER ASSY

$

$

Currently unavailable

11

Homelite JA992011

TANK- Gas

$

$

Not available

12

Homelite JA992212

CAP- Fuel

$

$

Currently unavailable

13

Homelite 00305

DECAL- Gasohol

$

$

Currently unavailable

14

Homelite JA361117

BUSHING

$

$

Currently unavailable

15

Homelite JA992129

VALVE- Needle

$

$

Currently unavailable

16

Homelite JA992196

TUBING- Rubber (YT-12)

$

$

Currently unavailable

Homelite JA991073

TUBING- Rubber (YT-14)

$

$

Currently unavailable

17

Homelite JA447302

WASHER- 5/16

$

$

Currently unavailable

18

Homelite JA992352

DECAL- Battery

$

$

Currently unavailable

19

Homelite JA443106

NUT- 5/16-18
(Superseded to 81018)

$

$

Not available

20

Homelite JA992286

BRACKET

$

$

Currently unavailable

21

Homelite JA352496

CLIP

$

$

Currently unavailable

22

Homelite JA158959

STRAP- Hold down

$

$

Currently unavailable

23

Homelite JA376088

BATTERY (12HP)

$

$

Not available

Homelite JA992202

BATTERY (14HP)

$

$

Currently unavailable

24

Homelite JA995590

SOLENOID

$

$

Currently unavailable

25

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

26

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

27

Homelite JA443802

NUT- 1/4-20

$

$

Currently unavailable

28

Homelite JA444306

NUT- Hex 8-32

$

$

Currently unavailable

29

Homelite JA446112

WASHER- Lock #8

$

$

Currently unavailable

30

Homelite JA992287

STRAP- Upper PTO

$

$

Currently unavailable

31

Homelite JA400182

SCREW- 5/16-18 x 5/8

$

$

Not available

32

Homelite JA992235

PAD- Rubber

$

$

Currently unavailable

33

Homelite JA403910

SCREW- #10-24 x 1/2

$2.49

$

Usually ships in 3-7 days

0

34

Homelite JA992444

BRACKET- Gas Tank

$

$

Currently unavailable

35

Homelite JA452002

WASHER

$

$

Not available

36

Homelite JA444782

NUT- Hex Lock 10-24

$

$

Not available

37

Homelite JA992162

FITTING- Gas Tank

$

$

Currently unavailable

38

Homelite JA992195

TUBING- Rubber

$

$

Currently unavailable

39

Homelite JA992309

CUSHION- Rubber

$

$

Currently unavailable

40

Homelite JA992224

DECAL- Throttle (12HP)

$

$

Currently unavailable

Homelite JA992223

DECAL- Throttle (14HP)

$

$

Currently unavailable

41

Homelite JA403908

SCREW- #10-24 x 3/8

$

$

Currently unavailable

42

Homelite JA992191

CONTROL- Choke

$

$

Currently unavailable
