YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Drive Group (Part 1) Parts Diagram

Yard Tractor

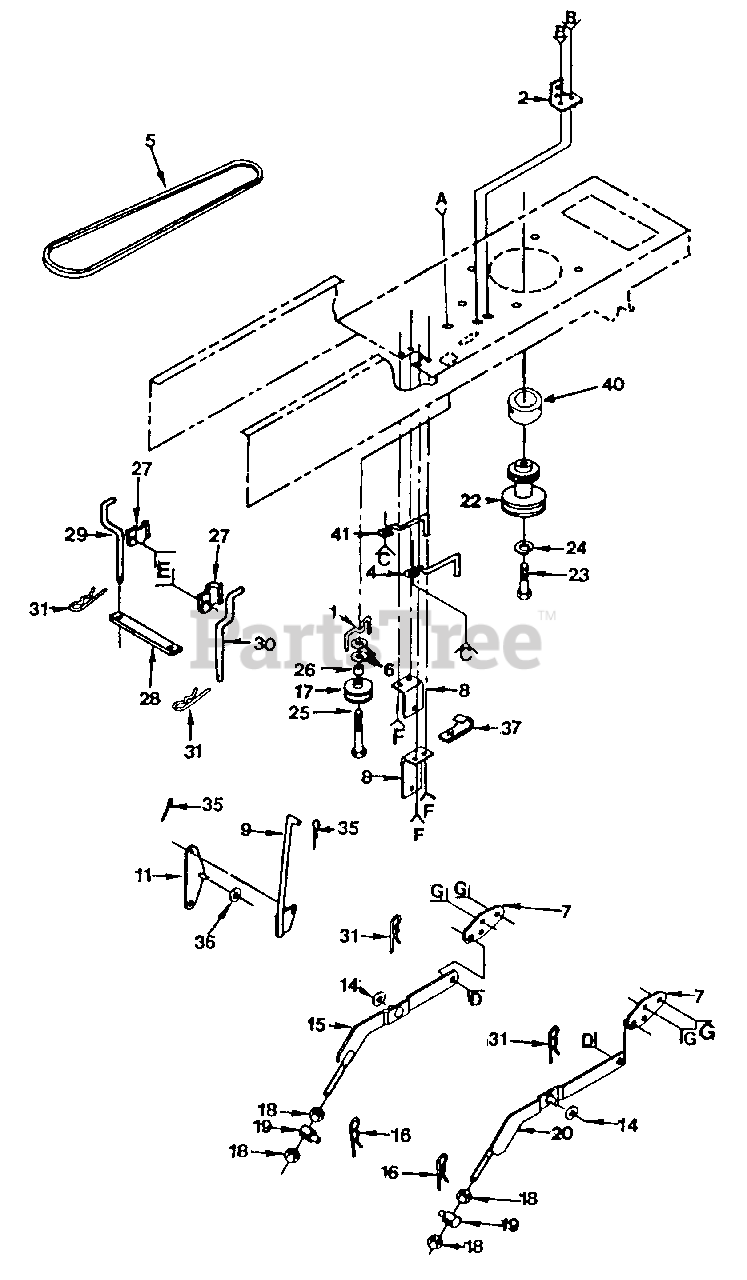

Drive Group (Part 1) Parts Diagram

  • Title

1

Husqvarna 532109070

Keeper, Belt

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532125907

V-Belt, Drive

$36.99

$

In Stock, Qty 20+

0

6

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532105864

Bracket, Suspension

$

$

Not available

8

Husqvarna 532106444

Bracket, Bellcrank

$

$

Not available

9

Husqvarna 532108451

Rod Assembly, Clutch Primary

$

$

Not available

11

Husqvarna 532109728

Bellcrank Assembly

$

$

Not available

14

Husqvarna 819171516

Washer 17/32 x 15/16 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

15

Husqvarna 532121599

Arm Assembly, Suspension, L.H.

$

$

Not available

16

Husqvarna 532009135

Retainer, Spring

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532123674

Idler, Flat

$31.99

$

In Stock, only 2 left!

0

18

Husqvarna 873220800

Nut, Hex 1/2-13
(Superseded to 873350800)

$

$

Not available

19

Husqvarna 532106308

Trunnion, Lift Lower
(Superseded to 532175689)

$

$

Not available

20

Husqvarna 532121598

Arm Assembly, Suspension R.H.

$

$

Not available

22

Husqvarna 532105731

Pulley, Engine
(Superseded to 532136004)

$

$

Not available

23

Husqvarna 874770728

Bolt, Hex 7/16-20 x 1-3/4

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 810040700

Washer, Lock
(Superseded to 539990247)

$

$

Not available

25

Husqvarna 874760644

Bolt, Hex 3/8-16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532106190

Clamp

$

$

Not available

28

Husqvarna 532123770

Strap, Locator

$

$

Not available

29

Husqvarna 532123662

Keeper, Belt, L.H.

$

$

Not available

30

Husqvarna 532123663

Keeper, Belt, R.H.

$

$

Not available

31

Husqvarna 532004921

Spring, Retainer

$6.49

$

In Stock, only 1 left!

0

35

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

36

Husqvarna 819131410

Washer, 13/32 x 7/8 x 10 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532124898

Clip, Insulated
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532124915

Spacer

$

$

Not available

41

Husqvarna 532121218

Keeper, Belt Engine

$

$

Not available
