YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Engine B&S Model 281707, Type 0412-01 (Part 1) Parts Diagram

Yard Tractor

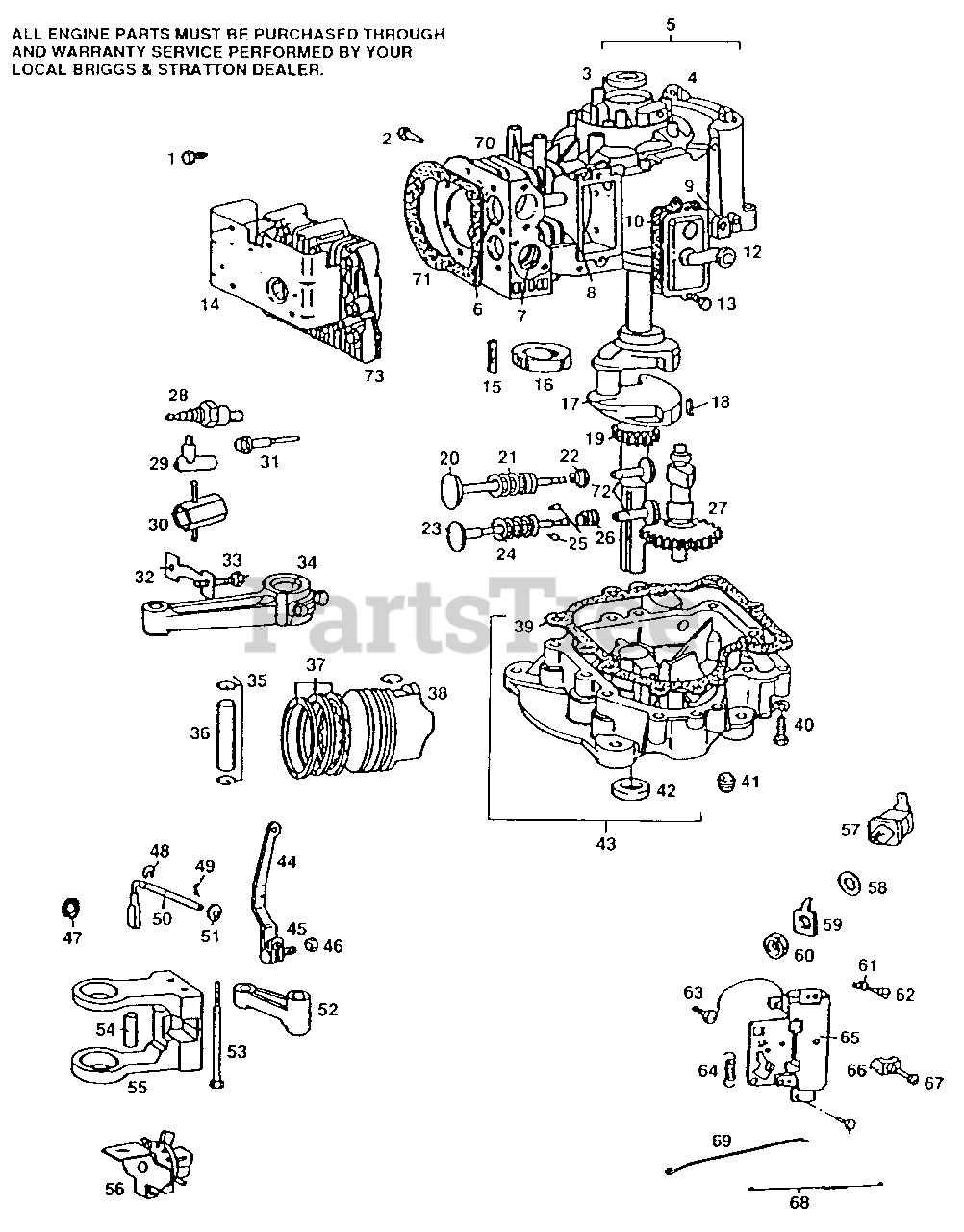

Engine B&S Model 281707, Type 0412-01 (Part 1) Parts Diagram

  • Title

1

Husqvarna 93158

Screw, Blower Housing Mounting Sem

$

$

Not available

2

Husqvarna 93163

Screw, Cylinder Shield Mtg. Sem

$

$

Not available

3

Husqvarna 399265

Bearing, Cylinder

Note: Requires special tools for installation

$

$

Not available

4

Husqvarna 391086

Seal, Oil

$

$

Currently unavailable

5

Husqvarna 490450

Cylinder Assembly

$

$

Not available

6

Husqvarna 261463

Seat, Intake Valve (Standard)

$

$

Not available

7

Husqvarna 210940

Seat, Exhaust Valve (Standard)

$

$

Not available

8

Husqvarna 261961

Guide, Exhaust Valve

Note: 231218 Guide - Intake Valve (Brass)

$

$

Not available

9

Husqvarna 231597

Bushing, Governor Crank (1/4" ID)

$

$

Not available

10

Husqvarna 27803

Gasket, Valve Cover

$

$

Not available

11

Husqvarna 391406

Breather Assembly

$

$

Not available

12

Husqvarna 280100

Tube, Breather

$

$

Not available

13

Husqvarna 93394

Screw, Sem

$

$

Not available

14

Husqvarna 491490

Cover, Cylinder Head

$

$

Not available

15

Husqvarna 94160

Pin, Eccentric

$

$

Not available

16

Husqvarna 262243

Eccentric

$

$

Not available

17

Husqvarna 490466

Crankshaft

Note: Order Part Number 94196 for Timing Gear Key

$

$

Not available

18

Husqvarna 222698

Key, Flywheel

$

$

Not available

19

Husqvarna 262135

Gear, Timing

$

$

Not available

20

Husqvarna 262247

Valve, Intake

$

$

Not available

21

Husqvarna 65906

Spring, Intake Valve

$

$

Not available

22

Husqvarna 221596

Retainer, Intake Valve

$

$

Not available

23

Husqvarna 262246

Valve, Exhaust

$

$

Not available

24

Husqvarna 26828

Spring, Exhaust Valve

$

$

Not available

25

Husqvarna 93630

Retainer, Exhaust Valve Rotocoil (2)

$

$

Not available

26

Husqvarna 292260

Rotocoil, Exhaust Valve

$

$

Not available

27

Husqvarna 212897

Gear, Cam

$

$

Not available

28

Husqvarna 293918

Plug, Spark (1 1/2" high - 37-42mm)

$

$

Not available

29

Husqvarna 66538

Elbow, Spark Plug

$

$

Not available

30

Husqvarna 89838

Wrench, Spark Plug

$

$

Not available

31

Husqvarna 93723

Screw, Cylinder Head (3" long)

$

$

Not available

32

Husqvarna 222299

Lock, Connecting Rod Screw

$

$

Not available

33

Husqvarna 92909

Screw, Connecting Rod

$

$

Not available

34

Husqvarna 490348

Rod Assembly, Connecting

Note: For Connecting Rod with .020" undersize Crankpin Bore - Order No. 490469

$

$

Not available

35

Husqvarna 260924

Lock, Piston Pin

$

$

Not available

36

Husqvarna 299691

Pin Assembly, Piston-Standard

$

$

Not available

36

Husqvarna 391286

Pin Assembly, Piston-.005 O.S.

$

$

Not available

37

Husqvarna 394665

Ring Set, Piston-Standard

$

$

Not available

37

Husqvarna 391781

Ring Set, Piston-.010" O.S.

$

$

Not available

37

Husqvarna 391782

Ring Set, Piston-.020" O.S.

$

$

Not available

37

Husqvarna 391783

Ring Set, Piston-.030" O.S.

$

$

Not available

38

Husqvarna 394661

Piston Assembly Standard

$

$

Not available

38

Husqvarna 394662

Piston Assembly-.010 O.S.

$

$

Not available

38

Husqvarna 394663

Piston Assembly-.020" O.S.

$

$

Not available

38

Husqvarna 394664

Piston Assembly-.030" O.S.

Note: Piston Ring Sets; For Chrome Ring Set - Standard size - Order No. 392331

$

$

Not available

39

Husqvarna 271916

Gasket, Crankcase Cover (1/64" thick)

$

$

Not available

40

Husqvarna 94305

Screw, Base Mounting Sem

$

$

Not available

41

Husqvarna 91084

Plug, Oil Drain

$

$

Not available

42

Husqvarna 291675

Seal, Oil

$

$

Not available

43

Husqvarna 490452

Base, Engine

$

$

Not available

44

Husqvarna 490927

Lever Assembly, Governor (For 1/4" dia. Crank)

$

$

Not available

45

Husqvarna 92613

Bolt, Governor Lever

$

$

Not available

46

Husqvarna 231082

Nut, Hex 10-24

$

$

Not available

47

Husqvarna 491323

Seal, Oil

$

$

Not available

48

Husqvarna 93307

Retainer, E-Ring

$

$

Not available

49

Husqvarna 93306

Cotter, Hairpin

$

$

Not available

50

Husqvarna 231058

Crank, Governor (1/4" dia.)

$

$

Not available

51

Husqvarna 222450

Washer, Governor Crank (1/4" I.D.)

$

$

Not available

52

Husqvarna 212359

Link, Counterweight

$

$

Not available

53

Husqvarna 93875

Screw, Counterweight (1)

$

$

Not available

54

Husqvarna 298909

Pin, Counterweight (1)

$

$

Not available

55

Husqvarna 399891

Counterweight Assembly

$

$

Not available

56

Husqvarna 490815

Oil Slinger, Governor

$

$

Not available

57

Husqvarna 398525

Insulator Assembly

$

$

Not available

58

Husqvarna 92791

Washer, Lock, Shake-proof

$

$

Not available

59

Husqvarna 93722

Terminal, Spade

$

$

Not available

60

Husqvarna 90576

Nut, Hex 8-32

$

$

Not available

61

Husqvarna 26157

Spring, Throttle Adjustment

$

$

Not available

62

Husqvarna 90200

Screw, Machine Fill. Hd. 8-32 x 1/2"

$

$

Not available

63

Husqvarna 93572

Screw, Carburetor

$

$

Not available

64

Husqvarna 260695

Spring, Governor

$

$

Not available

65

Husqvarna 390784

Plate, Governor Control (Choke-A-Matic)

$

$

Not available

66

Husqvarna 221535

Clamp, Casing

$

$

Not available

67

Husqvarna 93496

Screw, Sem

$

$

Not available

68

Husqvarna 260584

Spring, Governor Link

$

$

Not available

69

Husqvarna 262348

Link, Governor

$

$

Not available

70

Husqvarna 223715

Shield, Cylinder

$

$

Not available

71

Husqvarna 271866

Gasket, Cylinder Head

$

$

Not available

72

Husqvarna 262248

Tappet Valve

$

$

Not available

73

Husqvarna 491491

Head, Cylinder

$

$

Not available
