YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Steering, Front Axle And Wheels Parts Diagram

Yard Tractor

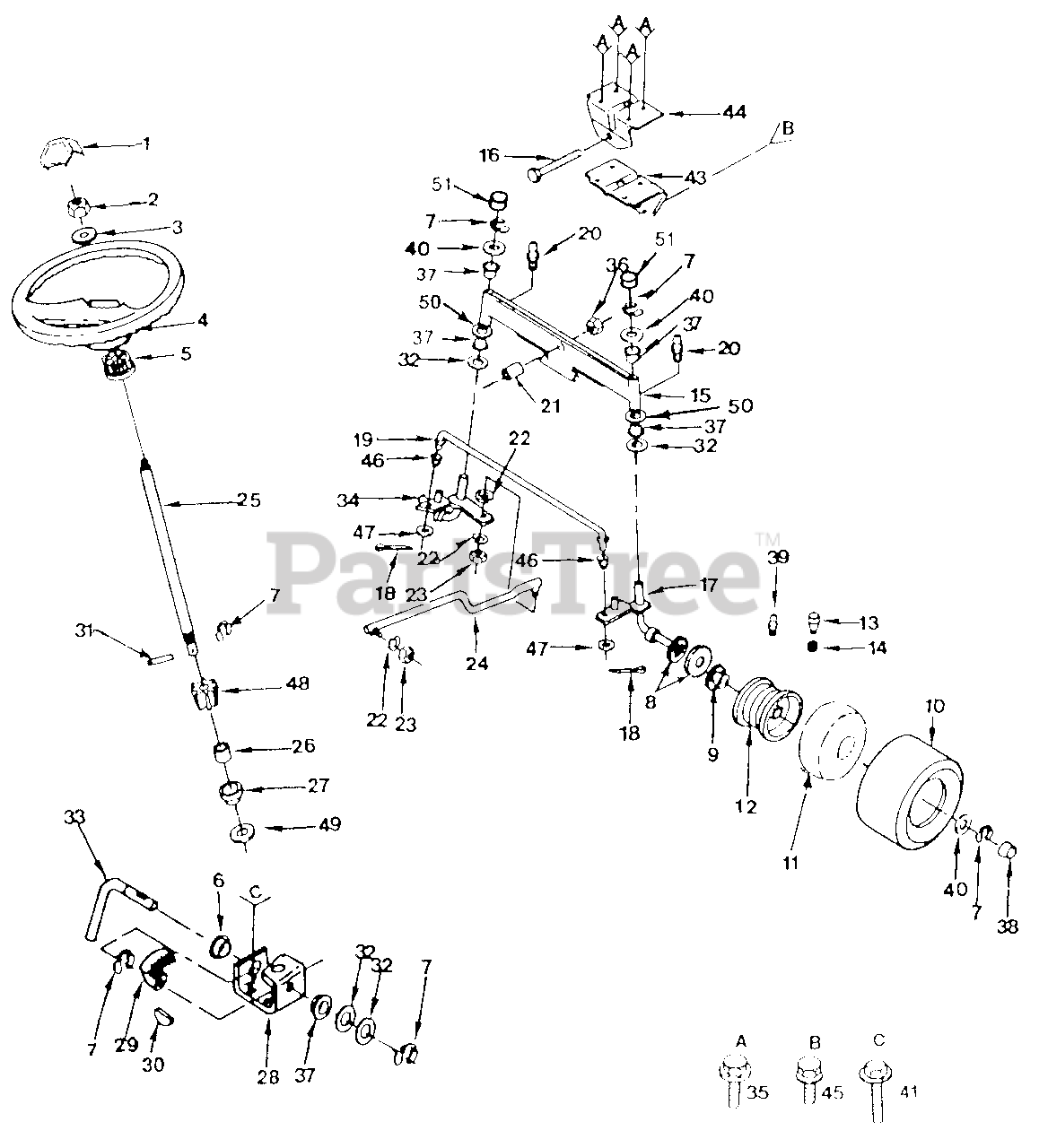

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

Insert, Steering Wheel

$

$

Not available

2

Husqvarna 873940800

Nut, Hex Jam Toplock 1/2-20

$7.49

$

In Stock, Qty 10

0

3

Husqvarna 532100712

Washer 17/32 x 2-1/4 x .160

$

$

Not available

4

Husqvarna 532124415

Steering Wheel

$

$

Not available

5

Husqvarna 532110711

Adapter, Steering Wheel
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109816

Nyliner, Snap-in

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 812000029

Klipring

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 532009040

Bearings, Wheel, Front

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 532106222

Tire, 15 x 6.00-6 (Tubeless)
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532059904

Tube, Tire

Note: (Not furnished with Tractor)

$37.99

$

In Stock, Qty 20+

0

12

Husqvarna 532124801

Rim Assembly - 6" Front
(Superseded to 532106732)

Note: (Inc. 2 each Key No. 9)

$87.99

$

In Stock, Qty 20+

0

13

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532108075

Axle Assembly, Front

$

$

Not available

16

Husqvarna 874761060

Bolt, Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532105654

Spindle Assembly, R.H.
(Superseded to 532130524)

$

$

Not available

18

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 532105715

Tie Rod
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

20

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

21

Husqvarna 532110438

Spacer Bearing, Front Axle
(Superseded to 532155134)

$

$

Not available

22

Husqvarna 810040600

Lockwasher 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105727

Drag Link

$

$

Not available

25

Husqvarna 532109556

Shaft, Steering

$

$

Not available

26

Husqvarna 532074580

Spacer

$

$

Not available

27

Husqvarna 532071208

Bushing, Steering Rod

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532109432

Bracket Assembly, Steering
(Superseded to 532110150)

$

$

Not available

29

Husqvarna 532108684

Gear, Sector

$

$

Not available

30

Husqvarna 532106126

Woodruff Key 3/16 x 3/4

$

$

Not available

31

Husqvarna 532002882

Drive Pin 3/16 x 1
(Superseded to 532001572)

$6.99

$

In Stock, Qty 5

0

32

Husqvarna 532124931

Bearing Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

33

Husqvarna 532108683

Rod, Steering

$

$

Not available

34

Husqvarna 532105656

Spindle Assembly, L.H.
(Superseded to 532156483)

$26.99

$

In Stock, only 1 left!

0

35

Husqvarna 532122819

Screw, Hex Washer Hd. Thread Forming Type TT 3/8-16 x 3/4

$

$

Not available

36

Husqvarna 873901000

Nut, Flange 5/8-11
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532003366

Bearing

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532104757

Cap, Hub

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532000278

Grease Fitting

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 817490612

Screw, Hex Washer Thrdl 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532105663

Support, Saddle, Rear

$

$

Not available

45

Husqvarna 817490508

Screw, Hex Washer Thd. Rolling 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532120754

Bushing
(Superseded to 532126847)

$4.99

$

In Stock, Qty 11

0

47

Husqvarna 819131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 4 left!

0

48

Husqvarna 532108685

Gear, Pinion

$

$

Not available

49

Husqvarna 532101930

Washer, Hardened

$

$

Not available

50

Husqvarna 819272016

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 4 left!

0

51

Husqvarna 532121232

Spindle Cap

$3.99

$

In Stock, Qty 20+

0
