YT 120 (HVYT120AR) - Husqvarna Yard Tractor (1990-03) Drive Group (Part 1) Parts Diagram

Yard Tractor

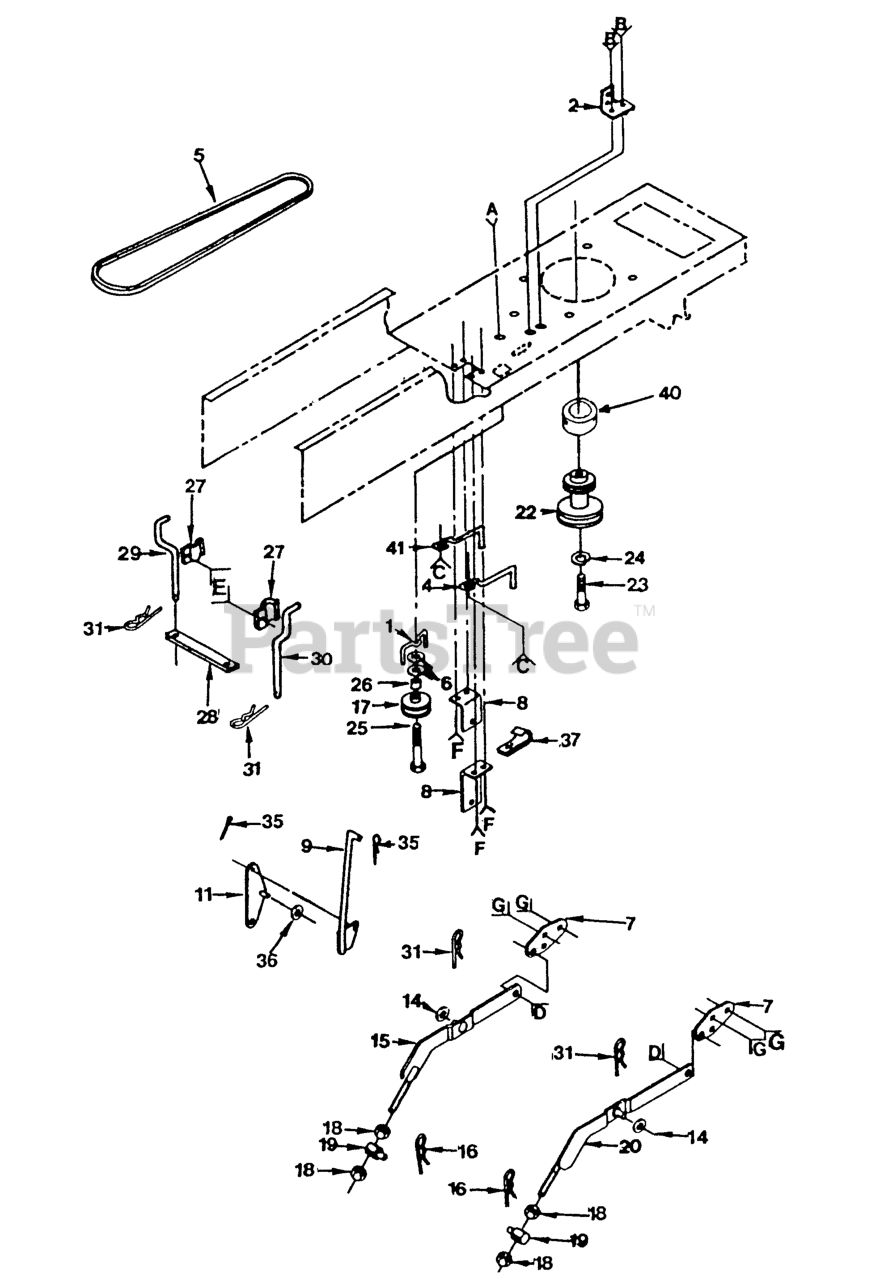

Drive Group (Part 1) Parts Diagram

  • Title

1

Husqvarna 532109070

BELT KEEPER LT NLA

$

$

Not available

2

Husqvarna 532108236

BRACKET LT

$

$

Not available

4

Husqvarna 532105730

KEEPER,BLT ENG LT

$

$

Not available

5

Husqvarna 532125907

BELT

$43.99

$

In Stock, Qty 20+

0

6

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532105864

BRACKET,SUSPEN LT

$

$

Not available

8

Husqvarna 532106444

BRKT,BELLCRANK LT

$

$

Not available

9

Husqvarna 532108451

ROD ASSEM YT

$

$

Not available

11

Husqvarna 532109728

BELLCRANK T

$

$

Not available

14

Husqvarna 819171516

WASHER T
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

15

Husqvarna 532121599

LH SUSP ARM ASM

$

$

Not available

16

Husqvarna 532009135

SPRING H

$

$

Not available

17

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

18

Husqvarna 873220800

NUT 1/2 X 13
(Superseded to 596433401)

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 532106308

TRUNION LFT LR LT
(Superseded to 532175689)

$

$

Not available

20

Husqvarna 532121598

RH SUSP ARM ASM

$

$

Not available

22

Husqvarna 532105731

PULLEY, ENGINE LT
(Superseded to 532136004)

$

$

Not available

23

Husqvarna 874770728

Bolt, Hex 7/16 - 20 x 1 - 3/4

$

$

Not available

24

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

25

Husqvarna 874760644

BOLT

$

$

Not available

26

Husqvarna 532004470

SPACER T
(Superseded to 532124965)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532106190

CLAMP LT

$

$

Not available

28

Husqvarna 532123770

STRAP LOCATOR

$

$

Not available

29

Husqvarna 532123662

KEEPER BELT LH NLA

$

$

Not available

30

Husqvarna 532123663

KEEPER BELTRH NLA

$

$

Not available

31

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532124898

INSUL CLIP T
(Superseded to 532005320)

$

$

Not available

40

Husqvarna 532124915

SPACER T

$

$

Not available

41

Husqvarna 532121218

KEEPER BELT ENGLH

$

$

Not available
