YT 120 (HVYT120AR) - Husqvarna Yard Tractor (1990-03) Engine B&S Model 281707 Type 0412-01 (Part 3) Parts Diagram

Yard Tractor

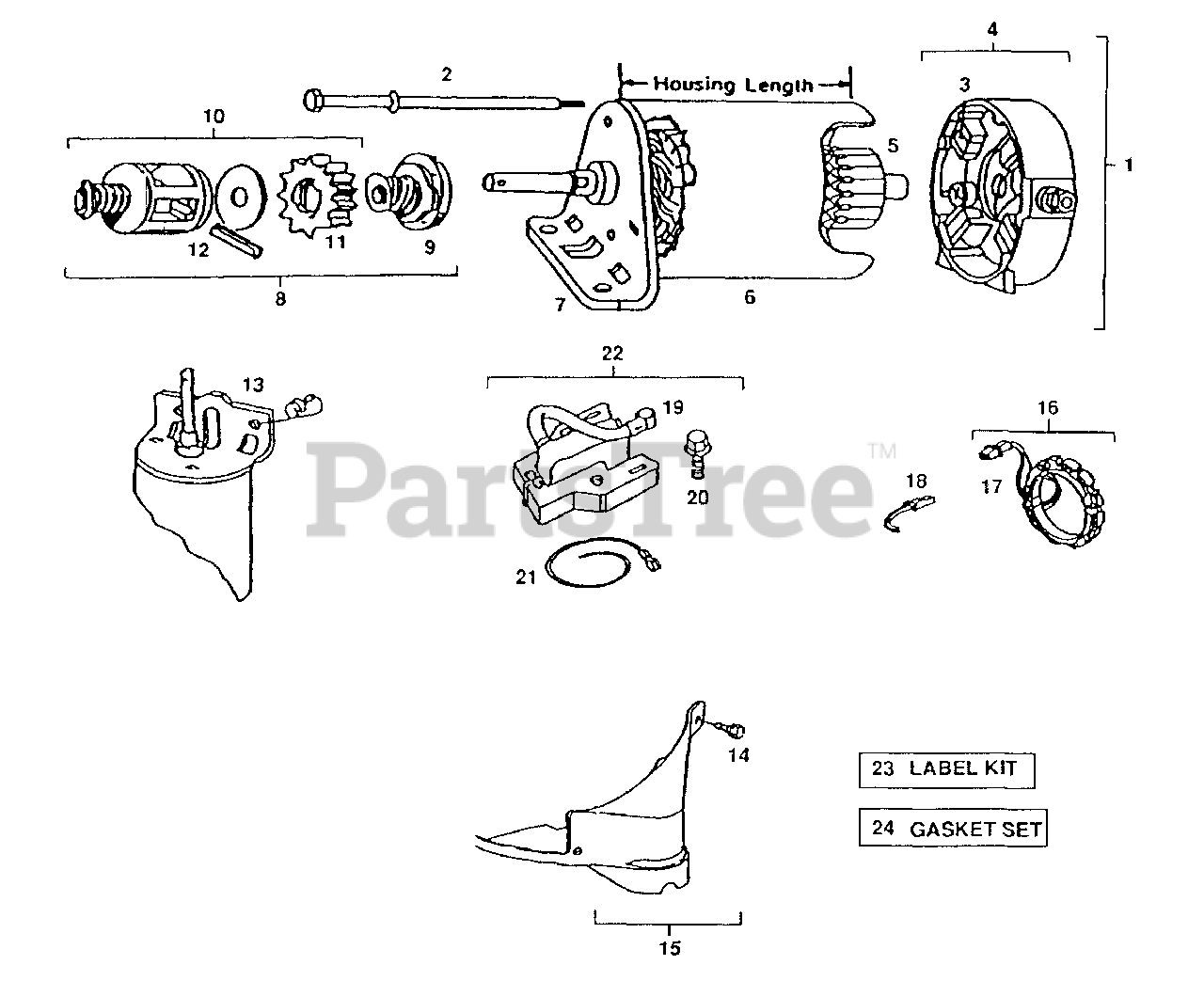

Engine B&S Model 281707 Type 0412-01 (Part 3) Parts Diagram

  • Title

1

Husqvarna 394805

Motor and Drive Assembly 12V, 4 3/8" Housing Length

$

$

Not available

2

Husqvarna 94003

Thru Bolt Assembly

$

$

Not available

3

Husqvarna 395538

Brush Assembly

$

$

Not available

4

Husqvarna 395537

End Cap Assembly Commutator

Note: Includes Brush Set

$

$

Not available

5

Husqvarna 390837

Armature Assembly

$

$

Not available

6

Husqvarna 393825

Housing Assembly

$

$

Not available

7

Husqvarna 394857

Drive End Cap Assembly

$

$

Not available

8

Husqvarna 490421

Drive Assembly

$

$

Not available

9

Husqvarna 398003

Clutch Assembly

$

$

Not available

10

Husqvarna 490467

Retainer and Pin

$

$

Not available

11

Husqvarna 280104

Gear

$

$

Not available

12

Husqvarna 94288

Roll Pin

$

$

Not available

13

Husqvarna 93535

Screw, Sem

$

$

Not available

14

Husqvarna 93984

Screw, Sem

$

$

Not available

15

Husqvarna 490324

Cover, Starter

Note: (Includes Mounting Screws)

$

$

Not available

16

Husqvarna 393474

Stator, Alternator (Dual Circuit)

$

$

Not available

17

Husqvarna 393456

Diode and Connector Assembly (Dual Circuit)

$

$

Not available

18

Husqvarna 393362

Alternator Harness Assembly (Dual Circuit)

$

$

Not available

19

Husqvarna 221798

Terminal, Ignition

$

$

Not available

20

Husqvarna 93381

Screw, Armature Mounting Sem

$

$

Not available

21

Husqvarna 398808

Wire, Ground

$

$

Not available

22

Husqvarna 492341

Armature, Magneto

$

$

Not available

23

Husqvarna 491252

Decal, Label Kit

$

$

Not available

24

Husqvarna 490525

Gasket Set

$

$

Not available
