YT 120 (HVYT120AR) - Husqvarna Yard Tractor (1990-03) Mower (Part 1) Parts Diagram

Yard Tractor

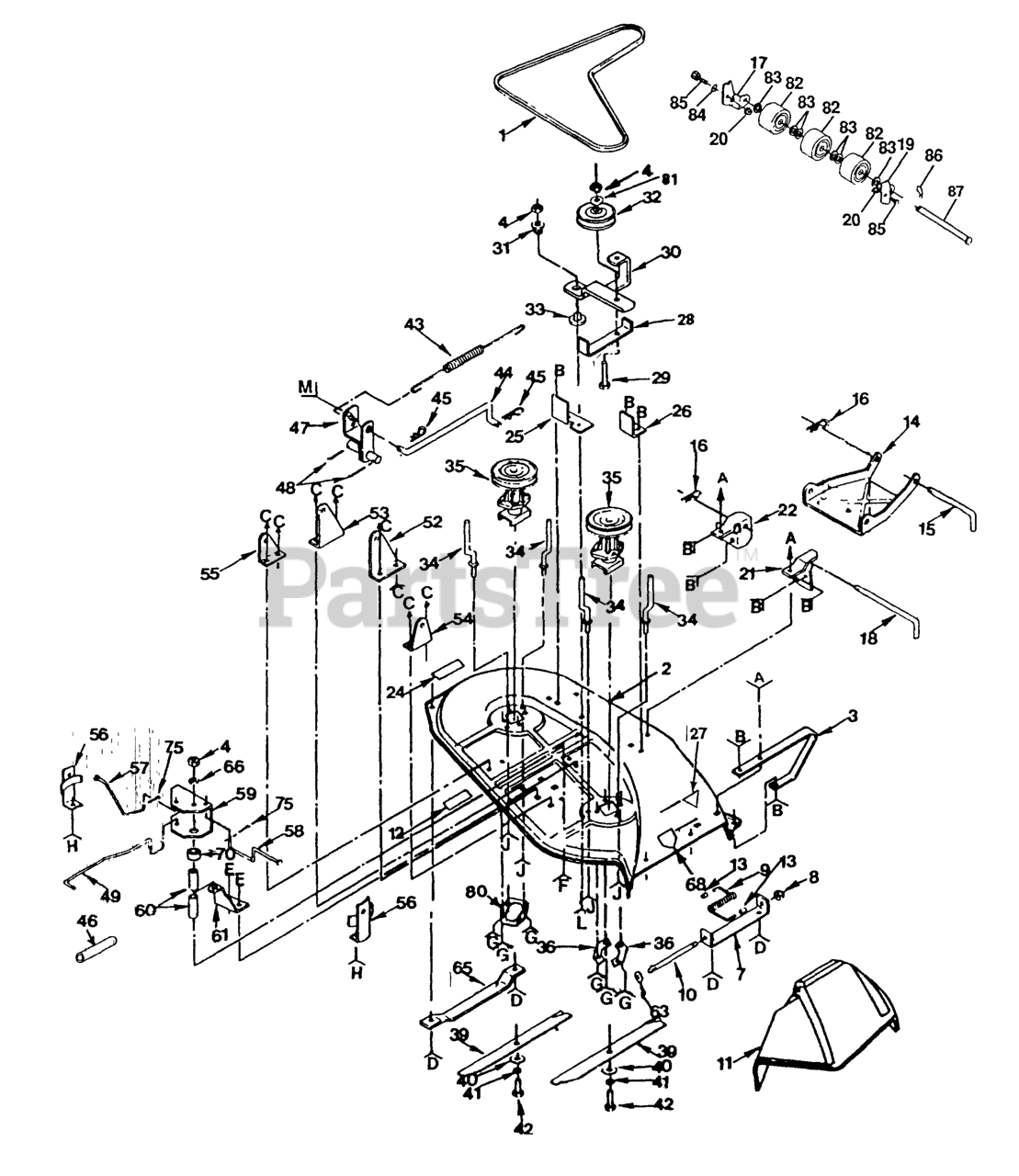

Mower (Part 1) Parts Diagram

  • Title

1

Husqvarna 532106085

V-BELT T

$51.99

$

In Stock, only 1 left!

0

2

Husqvarna 532121259

HOUSING
(Superseded to 532144725)

$

$

Not available

3

Husqvarna 532008417

RUNNER RH LT
(Superseded to 532128772)

$

$

Not available

4

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532105896

DEFLECTOR BRKT LT
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, Qty 17

0

10

Husqvarna 532106735

ROD-HINGE T

$11.99

$

In Stock, only 1 left!

0

11

Husqvarna 532106736

SHIELD.DEFLECTOR.MOWER.38.BL

$

$

Not available

12

Husqvarna 532105814

DECAL LT NLA

$

$

Not available

13

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532105662

LINK,PARALLEL

$

$

Not available

15

Husqvarna 532105744

ROD,FRT PARALL LT

$

$

Not available

16

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 532190646

BRACKET LH T
(Superseded to 532109646)

$

$

Not available

18

Husqvarna 532109835

HINGE PIN T

$

$

Not available

19

Husqvarna 532109647

BRACKET RH T NLA

$

$

Not available

20

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

21

Husqvarna 532109598

BRACKET RH LT NLA

$

$

Not available

22

Husqvarna 532109597

BRACKET LH T

$

$

Not available

24

Husqvarna 532109820

DECAL YT

$

$

Not available

25

Husqvarna 532109503

SUPPORT ARM T

$

$

Not available

26

Husqvarna 532109504

STOP T

$

$

Not available

27

Decal, Safety Standard

Note: Not Serviced

$

$

Not available

28

Husqvarna 532126756

GUIDE BELT

$

$

Not available

29

Husqvarna 874760632

BOLT
(Superseded to 874930632)

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532123553

ARM IDLER
(Superseded to 532127163)

$

$

Not available

31

Husqvarna 532106902

SPACER RETAINER

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 532121316

PULLEY.IDLER.FLAT.MOWER.BLK.PT

$56.99

$

In Stock, only 4 left!

0

33

Husqvarna 532106513

WASHER, WEAR LT (1 2)

$6.99

$

In Stock, only 4 left!

0

34

Husqvarna 532102669

BELT KEEPER LT

$

$

Not available

35

Husqvarna 532121687

JACKSHAFT.38"LT

$

$

Not available

36

Husqvarna 532100668

SUPPORT PLATE LT

$

$

Not available

39

Husqvarna 532121263

BLADE
(Superseded to 532143978)

$31.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 874610624

BOLT.3/8-24X1-1/2

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532108250

SPRING LT

$

$

Not available

44

Husqvarna 532108235

ROD LT NLA

$

$

Not available

45

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

46

Husqvarna 532124915

SPACER T

$

$

Not available

47

Husqvarna 532124066

ROCKSHAFT T
(Superseded to 532109892)

$

$

Not available

48

Husqvarna 876020616

Pin, Cotter 3/16 x 1

$

$

Not available

49

Husqvarna 532108247

ROD BRAKE LT

$

$

Not available

52

Husqvarna 532108243

BRACKET LT NLA

$

$

Not available

53

Husqvarna 532108241

BRACKET LT

$

$

Not available

54

Husqvarna 532105857

BRKT, SUSP RH LT

$

$

Not available

55

Husqvarna 532108673

BRKT,SUSP REAR LH

$

$

Not available

56

Husqvarna 532106578

BRAKE LT

$45.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532106463

ROD, BRAKE LH LT

$

$

Not available

58

Husqvarna 532108249

ROD BRAKE LT

$

$

Not available

59

Husqvarna 532106456

BRK,BRAKE,PVT LT

$

$

Not available

60

Husqvarna 532100672

SPACER BRAKE LTV

$

$

Not available

61

Husqvarna 532100673

BRACKET SUPT LTV NLA

$

$

Not available

63

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

65

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 8

0

66

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

68

Husqvarna 532121349

DECAL WARNING

$

$

Not available

70

Husqvarna 532122314

SPACER

$

$

Not available

75

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532110445

SUPPORT T

$

$

Not available

81

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

82

Husqvarna 532109729

ROLLER T

$

$

Not available

83

Husqvarna 819151610

WASHER T
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

84

Husqvarna 819161616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

85

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

86

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532109776

PIVOT PIN T

$

$

Not available

Husqvarna 532109820

DECAL YT

$

$

Not available

Husqvarna 532123928

MOWER ASSY NLA

$

$

Not available
