YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) 38" Mower (Part 1) Parts Diagram

Yard Tractor

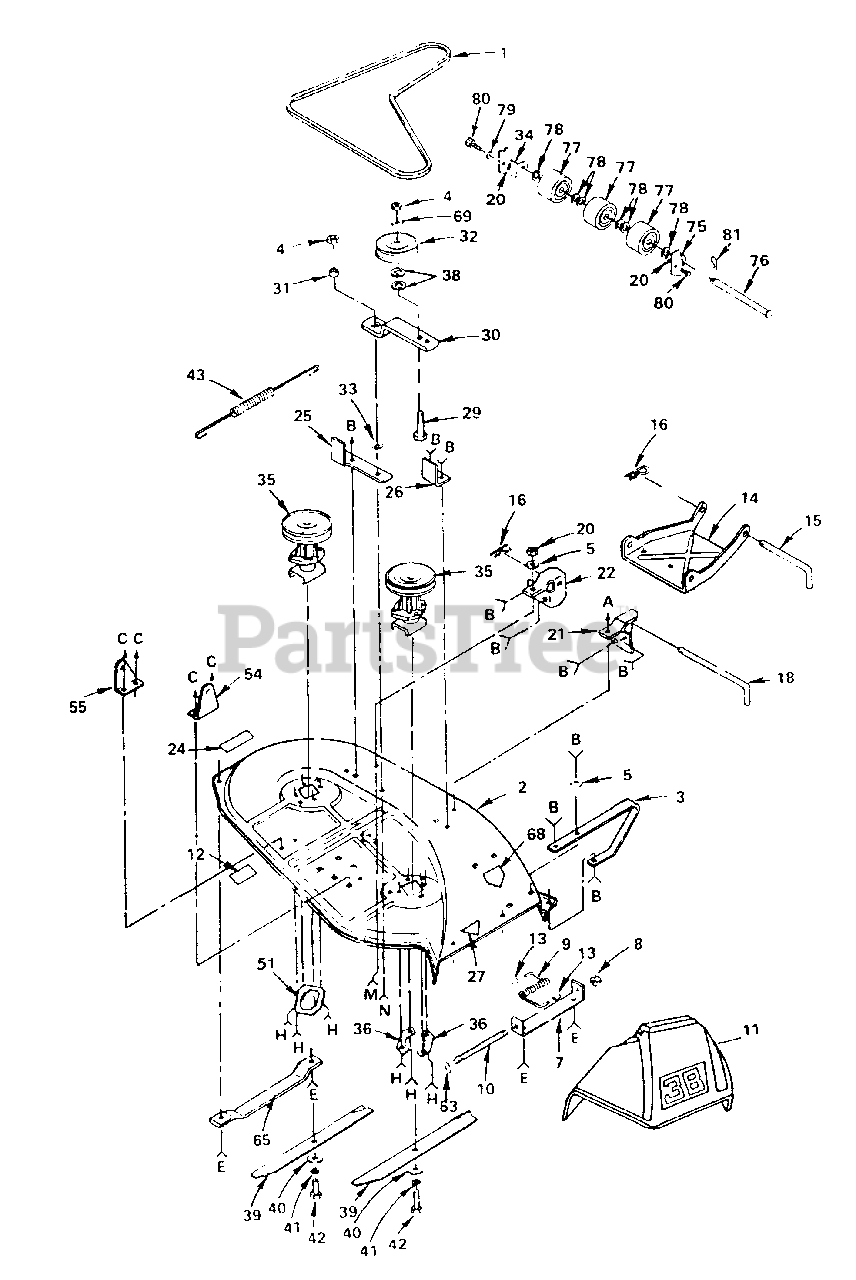

38" Mower (Part 1) Parts Diagram

  • Title

1

Husqvarna 532106085

V-Belt

$36.99

$

In Stock, only 1 left!

0

2

Husqvarna 532121458

Housing Assembly, Mower
(Superseded to 532144726)

$

$

Not available

3

Husqvarna 532008417

Runner, R.H.
(Superseded to 532128772)

$

$

Not available

4

Husqvarna 873680600

Nut, Lock, 3/8-16

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819111216

Washer, 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 872140505

Bolt, Carr., 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532105896

Bracket, Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 532110452

Nut

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532106734

Spring, Deflector
(Superseded to 532123713)

$5.99

$

In Stock, Qty 9

0

10

Husqvarna 532106735

Rod, Hinge

$8.99

$

In Stock, only 1 left!

0

11

Husqvarna 532106736

Deflector, Shield

$

$

Not available

12

Husqvarna 532108682

Decal, V-Belt Schematic

$

$

Not available

13

Husqvarna 532105304

Cap

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532105662

Link, Parallel

$

$

Not available

15

Husqvarna 532105744

Pin, Hinge,Front

$

$

Not available

16

Husqvarna 532004921

Spring, Retainer

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 532109835

Pin, Hinge, Rear

$

$

Not available

20

Husqvarna 873680500

Nut, Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532109598

Bracket, Lift, R.H.

$

$

Not available

22

Husqvarna 532109597

Bracket, Lift, L.H.

$

$

Not available

23

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532109820

Decal, Instruction, Caution

$

$

Not available

25

Husqvarna 532109503

Support, Arm

$

$

Not available

26

Husqvarna 532109504

Stop, Deck, Front

$

$

Not available

27

Husqvarna 532109984

Decal, Safety Standard serviced)

$

$

Not available

29

Husqvarna 874760636

Bolt - 3/8-16 x 2 1/4

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532123552

Arm, Idler

$

$

Not available

31

Husqvarna 532106902

Spacer

$2.99

$

In Stock, only 2 left!

0

32

Husqvarna 532121316

Pulley, Idler

$37.99

$

In Stock, only 4 left!

0

33

Husqvarna 532106513

Washer, Wear, 1/16

$3.99

$

In Stock, only 3 left!

0

34

Husqvarna 532109646

Bracket, Nose Roller, L.H.

$

$

Not available

35

Husqvarna 532121687

Mandrel Assembly

$

$

Not available

36

Husqvarna 532100668

Plate, Support, Mandrel

$

$

Not available

37

Husqvarna 817490620

Screw - Hex Washer Hd. 3/8-16 x 1 1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

38

Husqvarna 819131210

Washer, 13/32 x 3/4 x 10 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 532121263

Blade, 38"
(Superseded to 532143978)

$24.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819132012

Washer, 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 810030600

Washer, Lock, 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 874610624

Bolt, Hex 3/8-24 x 1-1/2 Gr.5

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532102727

Spring, Extension

$

$

Not available

50

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

51

Husqvarna 532110445

Plate, Support

$10.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532105857

Bracket, Susp., Rear, R.H.

$

$

Not available

55

Husqvarna 532108673

Bracket, Susp., Rear, L.H.

$

$

Not available

63

Husqvarna 819111016

Washer, 11/32 x 5/8 x 16 Ga.

$0.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532125074

Runner, L.H.
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

67

Husqvarna 872140610

Bolt, Carr. 3/8-16 x 1-1/4
(Superseded to 583611601)

$

$

Not available

68

Husqvarna 532121349

Decal, Warning

$2.99

$

Usually ships in 3-10 days

0

69

Husqvarna 819131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

75

Husqvarna 532109647

Bracket, Nose Roller, R.H.

$

$

Not available

76

Husqvarna 532109776

Pin, Pivot

$8.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532109729

Roller, Nose

$

$

Not available

78

Husqvarna 819151610

Washer, 15/32 x 1 x 10 Ga.
(Superseded to 734117801)

$

$

Not available

79

Husqvarna 819161616

Washer, 1/2 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

80

Husqvarna 874760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 876020412

Cotter Pin, 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

Husqvarna 532123928

Mower Assembly, Complete

$

$

Not available
