YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) Chassis And Enclosures (Part 1) Parts Diagram

Yard Tractor

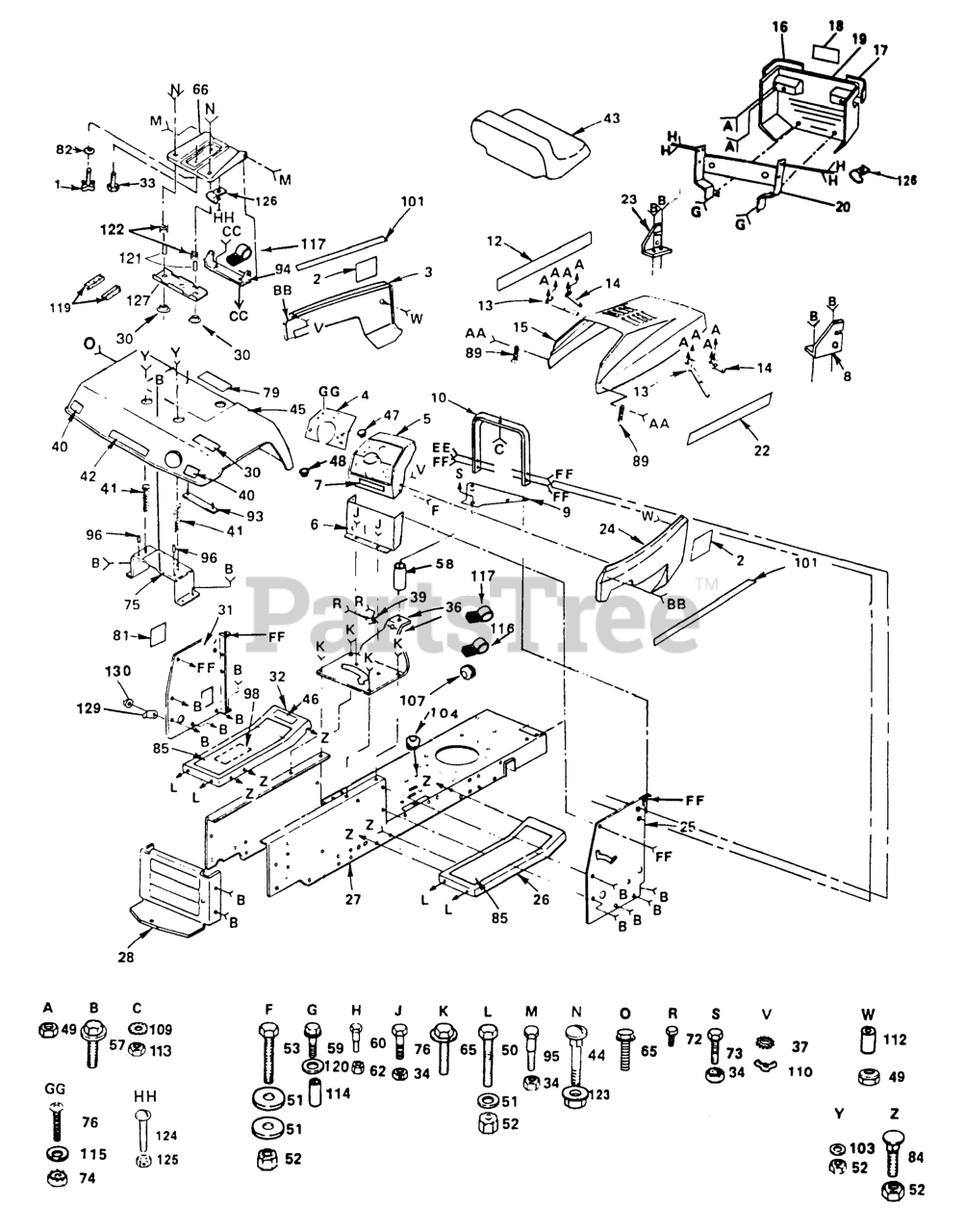

Chassis And Enclosures (Part 1) Parts Diagram

  • Title

1

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$7.99

$

In Stock, only 1 left!

0

2

Husqvarna 532124485

DECAL,SIDE PANEL

$

$

Not available

3

Husqvarna 532124905

PANEL,SIDE LH

$

$

Not available

4

Husqvarna 532124991

DASH PLATE

$

$

Not available

5

Husqvarna 532124182

DASHBOARD
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104783

DASH ASSY LT NLA

$

$

Not available

7

Husqvarna 532109821

DECAL YT

$

$

Not available

8

Husqvarna 532110853

SUPPORT RH YTH

$

$

Not available

9

Husqvarna 532106965

PLATE SUPPORT T NLA

$

$

Not available

10

Husqvarna 532124130

SUPPORT ASS'Y

$

$

Not available

12

Husqvarna 532124480

DECAL,HOOD LH NLA

$

$

Not available

13

Husqvarna 532106784

STRAP ASSY LT

$

$

Not available

14

Husqvarna 532104618

STRAP ASSY LT

$

$

Not available

15

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

16

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

$

$

Not available

17

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

$

$

Not available

18

Husqvarna 532124483

DECAL,GRILL HUSKY

$

$

Not available

19

Husqvarna 532126689

GRILL
(Superseded to 532157236)

$

$

Not available

20

Husqvarna 532126025

SUPT, ASS'Y GRILL

$

$

Not available

22

Husqvarna 532124481

DECAL,HOOD RH

$

$

Not available

23

Husqvarna 532110852

SUPPORT LH YTH

$

$

Not available

24

Husqvarna 532125063

PANEL,SIDE RH

$

$

Not available

25

Husqvarna 532110828

PANEL LT NLA

$

$

Not available

26

Husqvarna 532125036

FOOTREST RH

$

$

Not available

27

Husqvarna 532121277

CHASSIS ASSY NLA

$

$

Not available

28

Husqvarna 532121306

DRAWBAR
(Superseded to 532145009)

$

$

Not available

30

Husqvarna 532121248

BUSHING

$

$

Not available

31

Husqvarna 532124118

PANEL DASH LH NLA

$

$

Not available

32

Husqvarna 532124722

FOOTREST LH
(Superseded to 532147203)

$

$

Not available

33

Husqvarna 532121144

BOLT, SHOULDER**
(Superseded to 532127018)

$5.99

$

In Stock, only 1 left!

0

34

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

36

Husqvarna 532124800

SADDLE

$

$

Not available

37

Husqvarna 811030400

LOCKWASHER GT
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532124720

BUSHING LT
(Superseded to 532155108)

$7.99

$

In Stock, Qty 11

0

40

Husqvarna 532106202

REFLECTOR-TAIL YT

$

$

Not available

41

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532124484

DECAL,FENDER HUSQ

$

$

Not available

43

Husqvarna 532124186

SEAT
(Superseded to 532401043)

$

$

Not available

44

Husqvarna 872170410

Bolt, Carriage 1/4 - 20 x 11/4

$

$

Not available

45

Husqvarna 532124974

FENDER

$

$

Not available

46

Husqvarna 532101892

DECAL

$

$

Not available

47

Husqvarna 532005479

PLUG BUTTON T

$9.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532008022

PLUG-DASH T

$

$

Not available

49

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

51

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

52

Husqvarna 873680600

LOCKNUT

$

$

Not available

53

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

57

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

Rolling 3/8 - 16 x 3/4 Type TT

$

$

Not available

58

Husqvarna 532121236

SPACER

$

$

Not available

59

Husqvarna 874760440

BOLT

$

$

Not available

60

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$

$

Not available

62

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532124294

PAN SEAT

$

$

Not available

69

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

72

Husqvarna 817431008

SCREW LT
(Superseded to 817211008)

$

$

Not available

73

Husqvarna 874760532

Bolt, Hex 5/16-18 x 2 Gr 2

$

$

Not available

74

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

75

Husqvarna 532105509

BRACKET-FENDER YT
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874180512

Screw, Mach. 5/16-18 x 3/4

$

$

Not available

79

Husqvarna 532120822

DECAL

$

$

Not available

81

Husqvarna 532121794

COVER ACCESS

$

$

Not available

82

Husqvarna 819171912

WASHER

$4.99

$

In Stock, Qty 11

0

84

Husqvarna 872270606

BOLT
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532108256

PAD FOOTREST T

$

$

Not available

89

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

93

Husqvarna 532105511

STRAP-FENDER YT
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532105513

BRKT,SEAT PIVOT**
(Superseded to 532126656)

$

$

Not available

95

Husqvarna 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

96

Husqvarna 532105531

NUT-PUSH YT

$

$

Not available

98

Husqvarna 532109199

DECAL

$

$

Not available

101

Husqvarna 532124485

DECAL,SIDE PANEL

$

$

Not available

103

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

104

Husqvarna 532124934

SNAP BUSHING T

$

$

Not available

107

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

109

Husqvarna 811050400

Lockwasher, 1/4 Int. Ext.
(Superseded to 810040400)

$3.49

$

Usually ships in 3-10 days

0

110

Husqvarna 873490400

NUT.WING.LCK.NYL.NOTCH.1/4-20
(Superseded to 532146525)

$

$

Not available

112

Husqvarna 532001260

SPACER NLA

$

$

Not available

113

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

114

Husqvarna 532121235

SPACER

$

$

Not available

115

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

116

Husqvarna 532005320

INSUL CLIP T

$

$

Not available

117

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

119

Husqvarna 532121251

STRIP FORM

$

$

Not available

120

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

121

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

122

Husqvarna 532121250

SPRING

$4.99

$

Usually ships in 3-10 days

0

123

Husqvarna 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

124

Husqvarna 874641008

SCREW **

$

$

Not available

125

Husqvarna 873951000

Nut, Keps, #10-32 UNF

$

$

Not available

126

Husqvarna 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

127

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

128

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

129

Husqvarna 532124763

POINTER HGT INDAT
(Superseded to 532123933)

$

$

Not available

130

Husqvarna 532120529

WASHER T

$

$

Not available

132

Husqvarna 532120992

DECAL,GRILL NLA

$

$

Not available

133

Husqvarna 819131210

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0
