YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) Power And Mechanical Controls Group Parts Diagram

Yard Tractor

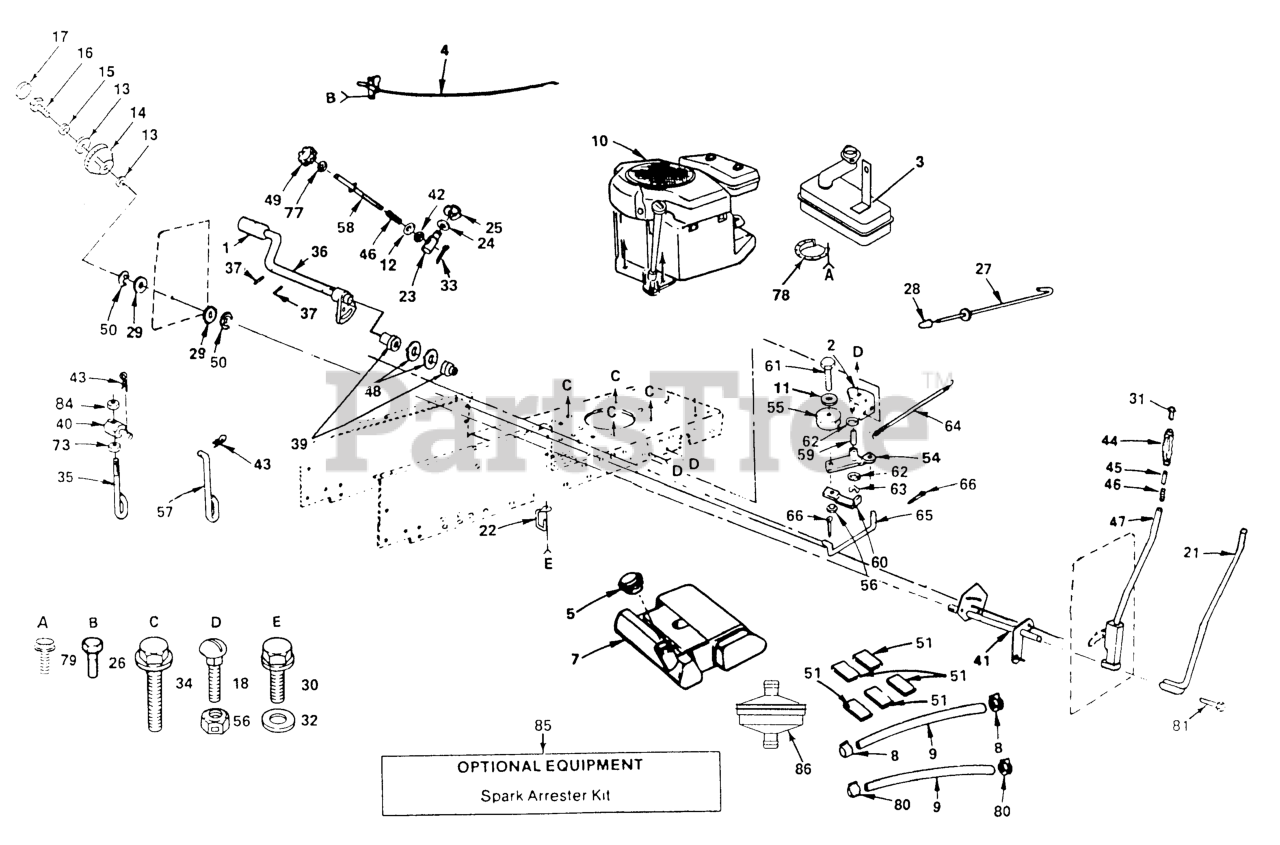

Power And Mechanical Controls Group Parts Diagram

  • Title

1

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 532123102

BRKT ASM

$

$

Not available

3

Husqvarna 532123816

MUFFLER
(Superseded to 532125799)

$

$

Not available

4

Husqvarna 532124055

CONTROL
(Superseded to 532132752)

$

$

Not available

5

Husqvarna 532124462

FUEL CAP ASS'Y

$

$

Not available

7

Husqvarna 532106020

FUEL TANK LT

$

$

Not available

8

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

9

Husqvarna 532101335

FUEL LINE T
(Superseded to 532008548)

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532123817

Engine 12.5 HP

$

$

Currently unavailable

11

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

13

Husqvarna 819112410

WASHER

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

15

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

17

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

18

Husqvarna 872140606

Bolt, Carriage, 3/8-16 x 3/4

$

$

Not available

21

Husqvarna 532121006

LEVER ROD LT

$

$

Not available

22

Husqvarna 532104777

RETAINER-BELT LT
(Superseded to 532136715)

$

$

Not available

23

Husqvarna 532110810

TRUNION LT

$

$

Not available

24

Husqvarna 819151216

Washer, 15/32 x 3/4 x 16 Ga.

$

$

Not available

25

Husqvarna 812000037

Klip Ring

$

$

Not available

26

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532125637

ROD BRAKE PARK
(Superseded to 532133261)

$

$

Not available

28

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 819292016

Washer, 29/32 x 1 - 1/4 x 16 Ga

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

32

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532125006

SCREW

$

$

Not available

35

Husqvarna 532110448

LINK ADJ T

$

$

Not available

36

Husqvarna 532122424

SHAFT FOOT PEDAL

$

$

Not available

37

Husqvarna 532001572

PIN.ROLL.3/16 X 1"

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

40

Husqvarna 532110447

TRUNNION T
(Superseded to 532132793)

$

$

Not available

41

Husqvarna 532124516

SHAFT LIFT

$

$

Not available

42

Husqvarna 532110807

NUT T

$

$

Not available

43

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

44

Husqvarna 532109413

GRIP

$

$

Not available

45

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

46

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532121002

LIFT LEVER KIT
(Superseded to 532123096)

Note: (Include Key No. 21)

$

$

Not available

48

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, Qty 15

0

49

Husqvarna 532121891

HDLE ADJ LIFT

$

$

Not available

50

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

51

Husqvarna 532006431

PAD-SPACER T

$

$

Not available

54

Husqvarna 532123789

ARM IDLER

$

$

Not available

55

Husqvarna 532123766

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

56

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

57

Husqvarna 532110029

LIFT LINK LT

$

$

Not available

58

Husqvarna 532110729

ROD LIFT LT

$

$

Not available

59

Husqvarna 532105706

BEARING LT (2 2)

$6.99

$

In Stock, Qty 14

0

60

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

62

Husqvarna 532110812

WASHER LT

$

$

Not available

63

Husqvarna 812000039

KLIP RING

$

$

Not available

64

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

65

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

66

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

73

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$6.99

$

In Stock, Qty 20+

0

77

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

78

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

79

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

80

Husqvarna 532006999

REPL BY 532 12 34-87
(Superseded to 532123487)

$3.99

$

In Stock, Qty 12

0

81

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

84

Husqvarna 873710700

NUT LOCK YTH
(Superseded to 873610700)

$6.99

$

In Stock, Qty 20+

0

85

Husqvarna 532123110

SPARK ARREST KIT

$

$

Not available

86

Husqvarna 532126819

FILTER,FUEL

$

$

Not available
