YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) Steering, Front Axle And Wheels Parts Diagram

Yard Tractor

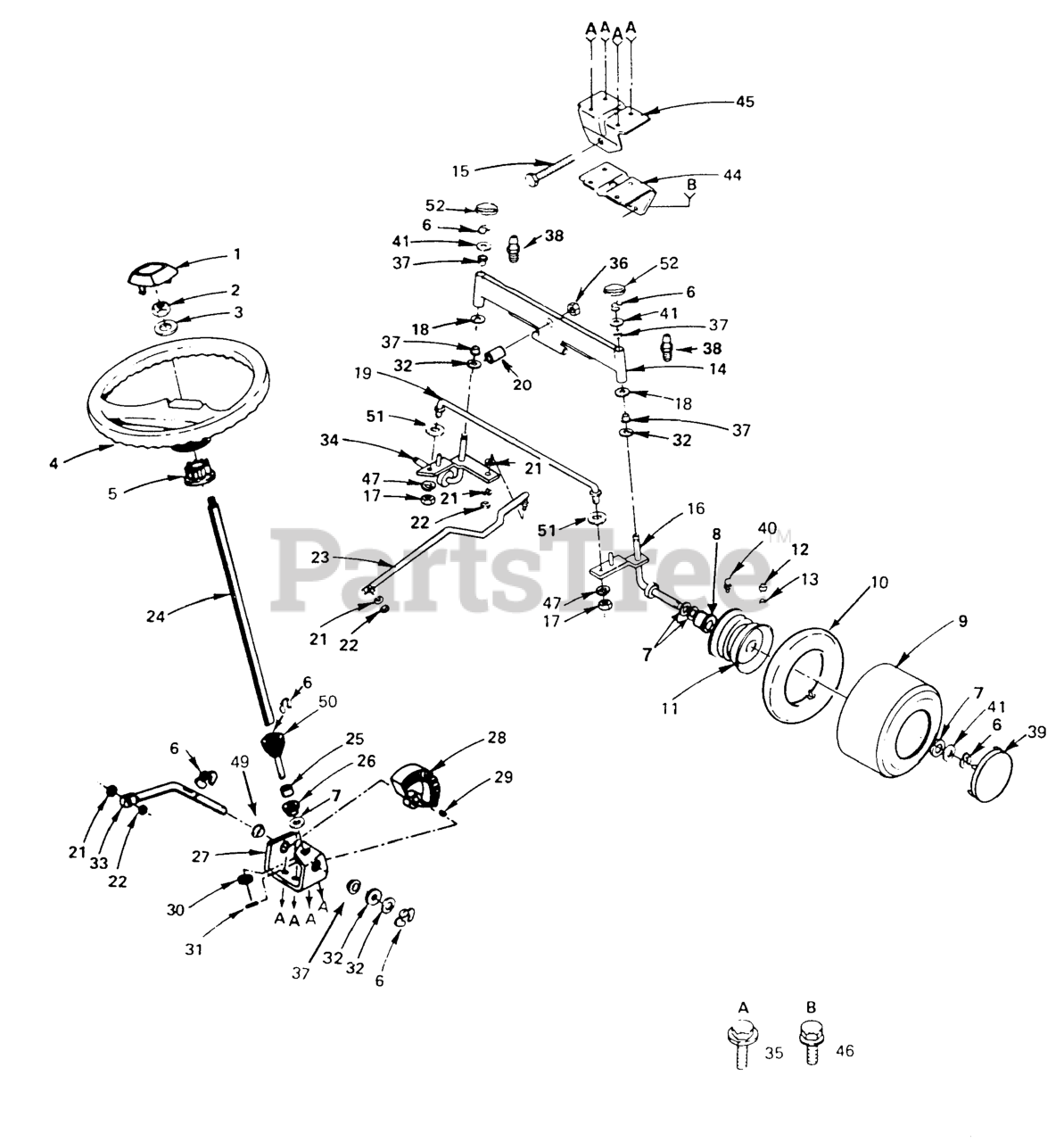

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

2

Husqvarna 873940800

NUT.HEX.1/2-20

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 532100712

WASHER

$

$

Not available

4

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

5

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

6

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

7

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532009040

BEARING.FLANGE

$9.49

$

In Stock, Qty 20+

0

9

Husqvarna 532106222

TIRE HEAVY DUTY
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532059904

TUBE.5.3/4.5/6

Note: (Not furnished with Tractor)

$22.99

$

In Stock, Qty 8

0

11

Husqvarna 532124801

RIM.ASM.6X4.5.FRONT.SILVER
(Superseded to 532106732)

Note: (Inc. 2 each Key No. 8)

$102.99

$

In Stock, Qty 20+

0

12

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 17

0

13

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 7

0

14

Husqvarna 532108075

AXLE ASSY T

$

$

Not available

15

Husqvarna 874761060

BOLT LT

$

$

Not available

16

Husqvarna 532105654

SPINDLE-RH LT
(Superseded to 532130524)

$

$

Not available

17

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

18

Husqvarna 819272016

WASHER

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 532121334

ROD TIE
(Superseded to 532170162)

$102.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

21

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

23

Husqvarna 532105727

LINK-DRAG LT

$

$

Not available

24

Husqvarna 532109556

SHAFT ASM T

$

$

Not available

25

Husqvarna 532074580

SHAFT SPACER LT

$

$

Not available

26

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$

$

Not available

27

Husqvarna 532109432

KIT STEERING LT
(Superseded to 532110150)

$

$

Not available

28

Husqvarna 532108684

SECTOR GEAR HYT

$

$

Not available

29

Husqvarna 532106126

KEY-WOODRUFF LT

$

$

Not available

30

Husqvarna 532101930

WASHER YTV

$

$

Not available

31

Husqvarna 532002882

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532108683

ROD STEERING T

$

$

Not available

34

Husqvarna 532105656

SPINDLE-LH LT
(Superseded to 532156483)

$26.99

$

In Stock, only 2 left!

0

35

Husqvarna 532122819

SCREW SPECIAL

$

$

Not available

36

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$

$

Not available

37

Husqvarna 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

39

Husqvarna 532124577

COVER.FRONT.WHEEL

$

$

Not available

40

Husqvarna 532000278

FITTING LT.

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532105664

SUP-SADDLE FRT LT

$

$

Not available

45

Husqvarna 532105663

SUPPORT-SADDLE LT NLA

$

$

Not available

46

Husqvarna 817490508

Screw, Hex Washer Thd. Rolling - 5/16-18 X 1/2
(Superseded to 539990858)

$

$

Not available

47

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 532109816

NYLINER T (7283A)

$5.99

$

In Stock, Qty 7

0

50

Husqvarna 532108685

GEAR PINION T

$

$

Not available

51

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

52

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0
