YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) Transaxle Parts Diagram

Yard Tractor

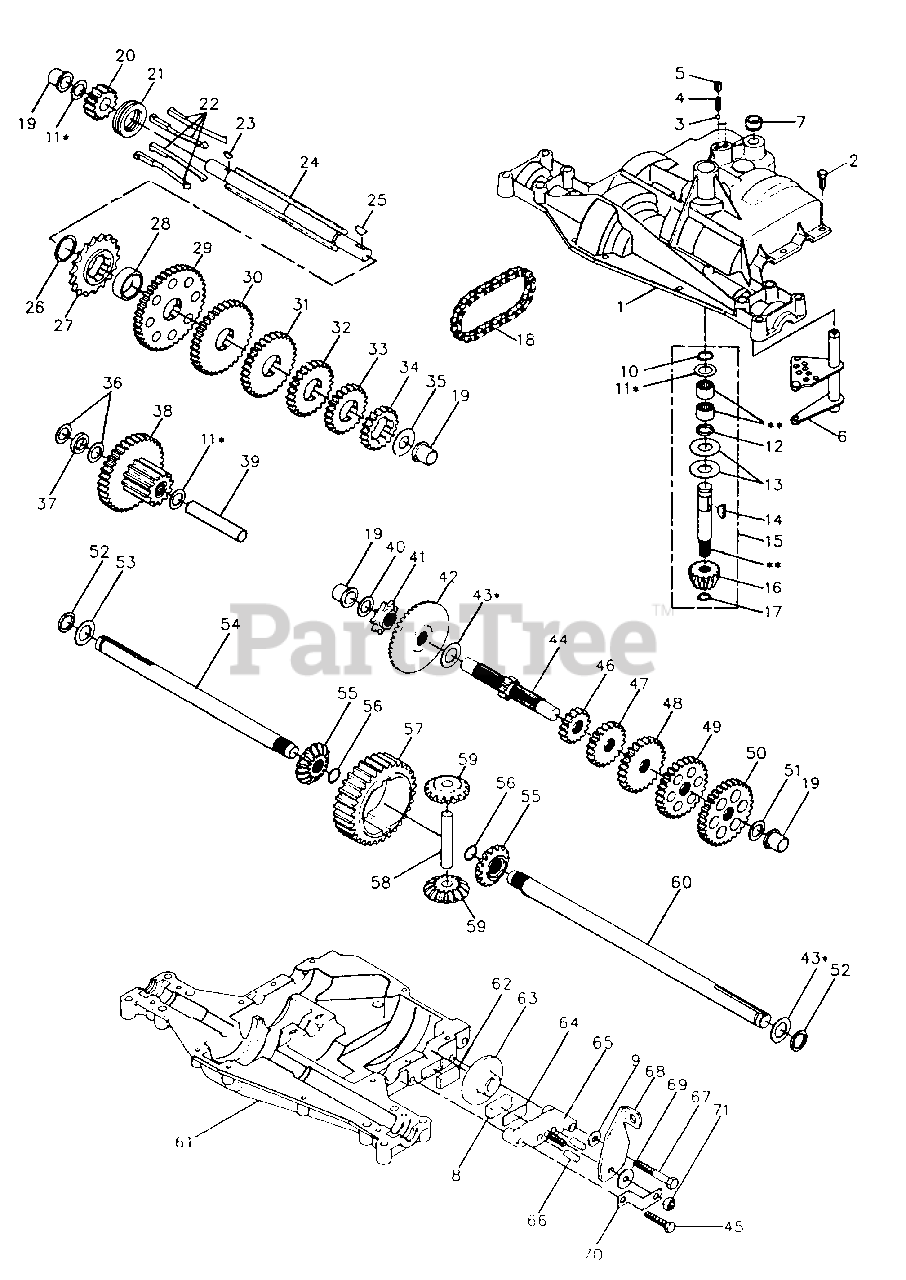

Transaxle Parts Diagram

  • Title

1

Husqvarna 3865A

Housing, Upper

$

$

Currently unavailable

2

Husqvarna 1919

Screw, Tapping 1/4 - 20 x .734 L

$

$

Not available

3

Husqvarna 1151

Ball, Detent

$

$

Not available

4

Husqvarna 3626

Spring, Detent

$

$

Not available

5

Husqvarna 3623

Screw, Set

$

$

Not available

6

Husqvarna 4458

Assembly, Shifter

$

$

Not available

7

Husqvarna 3789

V-Ring

$

$

Not available

8

Husqvarna 3907

Puck, Friction

$

$

Not available

9

Husqvarna 3906

Washer, Plain, .325 x .750 x .059

$

$

Not available

10

Husqvarna 1099

Ring, Retaining

$

$

Not available

11

Husqvarna 1959

Washer, Plain, .632 x 1.00 x .010

$

$

Not available

11

Husqvarna 1441

Washer, Plain, .632 x 1.00 x .020

$

$

Not available

11

Husqvarna 1423

Washer, Plain, .632 x 1.00 x .026

$

$

Not available

11

Husqvarna 1082

Washer, Plain, .632 x 1.00 x .031

$

$

Not available

11

Husqvarna 1424

Washer, Plain, .632 x 1.00 x .036

$

$

Not available

11

Husqvarna 1068

Washer, Plain, .632 x 1.00 x .041

$

$

Not available

11

Husqvarna 1425

Washer, Plain, .632 x 1.00 x .046

$

$

Not available

11

Husqvarna 1358

Washer, Plain, .632 x 1.00 x .050

$

$

Not available

11

Husqvarna 1145

Washer, Plain, .632 x 1.00 x .060

$

$

Not available

11

Husqvarna 1319

Washer, Plain, .632 x 1.00 x .082

$

$

Not available

12

Husqvarna 3312

O-Ring

$

$

Not available

13

Husqvarna 3876

Washer, Plain, .632 x 1.38 x .046

$

$

Not available

14

Husqvarna 1374

Key, Woodruff # 9

$

$

Not available

15

Husqvarna 4171

Assembly, Kit, Input Shaft

$

$

Not available

16

Husqvarna 3725

Pinion, Bevel, 14 T

$

$

Not available

17

Husqvarna 3624

Ring, Retaining

$

$

Not available

18

Husqvarna 3625

Chain, 24 Pitches

$

$

Not available

19

Husqvarna 1542

Bearing, Flange

$

$

Not available

20

Husqvarna 3709

Gear, Spur, 14T

$

$

Not available

21

Husqvarna 3631

Collar, Clutch

$

$

Not available

22

Husqvarna 3828

Key, Clutch

$

$

Not available

23

Husqvarna 1369

Key, Woodruff # 3

$

$

Not available

24

Husqvarna 3976

Shaft, Intermediate

$

$

Not available

25

Husqvarna 1375

Key, Woodruff # 61

$

$

Not available

26

Husqvarna 3627

Ring, Retaining

$

$

Not available

27

Husqvarna 3830

Sprocket, 18 T

$

$

Not available

28

Husqvarna 3841

Spacer

$

$

Not available

29

Husqvarna 3787

Gear, Spur, 40 T

$

$

Not available

30

Husqvarna 3785

Gear, Spur, 35 T

$

$

Not available

31

Husqvarna 3876

Gear, Spur, 30 T

$

$

Not available

32

Husqvarna 3783

Gear, Spur, 25 T

$

$

Not available

33

Husqvarna 3869

Gear, Spur, 22 T

$

$

Not available

34

Husqvarna 3741

Gear, Spur, 19 T

$

$

Not available

35

Husqvarna 3628

Washer, Plain, .640 x 1.37 x .061

$

$

Not available

36

Husqvarna 1423

Washer, Plain, .632 x 1.00 x .026

$

$

Not available

37

Husqvarna 3422

Spacer, .630 x 1.00 x .169

$

$

Not available

38

Husqvarna 4193

Assy., Gear, Comb., 12 T & 35 T

$

$

Not available

39

Husqvarna 3967

Shaft, Idler

$

$

Not available

40

Husqvarna 1708

Washer, Plain, .631 x 1.00 x .015

$

$

Not available

41

Husqvarna 3645

Sprocket, 9 T

$

$

Not available

42

Husqvarna 3589

Gear, Bevel, 42 T

$

$

Not available

43

Husqvarna 3749

Washer, Plain, .758 x 1.12 x .010

$

$

Not available

43

Husqvarna 3652

Washer, Plain, .758 x 1.12 x .015

$

$

Not available

43

Husqvarna 3693

Washer, Plain, .758 x 1.12 x .020

$

$

Not available

43

Husqvarna 3653

Washer, Plain, .758 x 1.12 x .025

$

$

Not available

43

Husqvarna 3408

Washer, Plain, .758 x 1.25 x .020

$

$

Not available

43

Husqvarna 3732

Washer, Plain, .758 x 1.25 x .025

$

$

Not available

43

Husqvarna 3184

Washer, Plain, .758 x 1.25 x .031

$

$

Not available

43

Husqvarna 3733

Washer, Plain, .758 x 1.25 x .035

$

$

Not available

43

Husqvarna 3198

Washer, Plain, .758 x 1.25 x .040

$

$

Not available

43

Husqvarna 3734

Washer, Plain, .758 x 1.25 x .045

$

$

Not available

43

Husqvarna 3735

Washer, Plain, .758 x 1.25 x .050

$

$

Not available

44

Husqvarna 3973

Shaft, Drive

$

$

Not available

45

Husqvarna 3724

Screw, Tapping, 5/16 x 18 x 1.44 Lg.

$

$

Not available

46

Husqvarna 3707

Gear, Spur, 15 T

$

$

Not available

47

Husqvarna 3866

Gear, Spur, 20 T

$

$

Not available

48

Husqvarna 3719

Gear, Spur, 25 T

$

$

Not available

49

Husqvarna 3868

Gear, Spur, 28 T

$

$

Not available

50

Husqvarna 3683

Gear, Spur, 31 T

$

$

Not available

51

Husqvarna 1145

Washer, Plain, .632 x 1.00 x .060

$

$

Not available

52

Husqvarna 3191

Seal, Felt

$

$

Not available

53

Husqvarna 3180

Washer, Plain, .758 x 1.25 x .062

$

$

Not available

54

Husqvarna 3880

Axle, L.H.

$

$

Not available

55

Husqvarna 3871

Gear, Miter, 15 T

$

$

Not available

56

Husqvarna 3656

Ring, Retaining

$

$

Not available

57

Husqvarna 3839

Gear, Spur, 32 T

$

$

Not available

58

Husqvarna 3919

Shaft, Cross

$

$

Not available

59

Husqvarna 3726

Gear, Miter, 15 T

$

$

Not available

60

Husqvarna 3881

Axle, R.H.

$

$

Not available

61

Husqvarna 3864B

Housing Lower

$

$

Currently unavailable

62

Husqvarna 3920

Puck, Friction

$

$

Not available

63

Husqvarna 3276

Disc, Brake

$

$

Not available

64

Husqvarna 3758

Spacer

$

$

Not available

65

Husqvarna 3916

Jaw, Brake

$

$

Not available

66

Husqvarna 3843

Pig, Jowel

$

$

Not available

67

Husqvarna 3915

Screw, Tapping, 5/16 - 18 x 2.25

$

$

Not available

68

Husqvarna 3768

Lever, Actuating

$

$

Not available

69

Husqvarna 3760

Washer, Plain, .321 x 1.00 x .055

$

$

Not available

70

Husqvarna 3917

Bracket, Anti-Rotation

$

$

Not available

71

Husqvarna 3847

Nut, Lock 5/16 - 24

$

$

Not available

72

Husqvarna 4300

Grease

$

$

Not available
