YT 140 DR - Electrolux/AYP Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

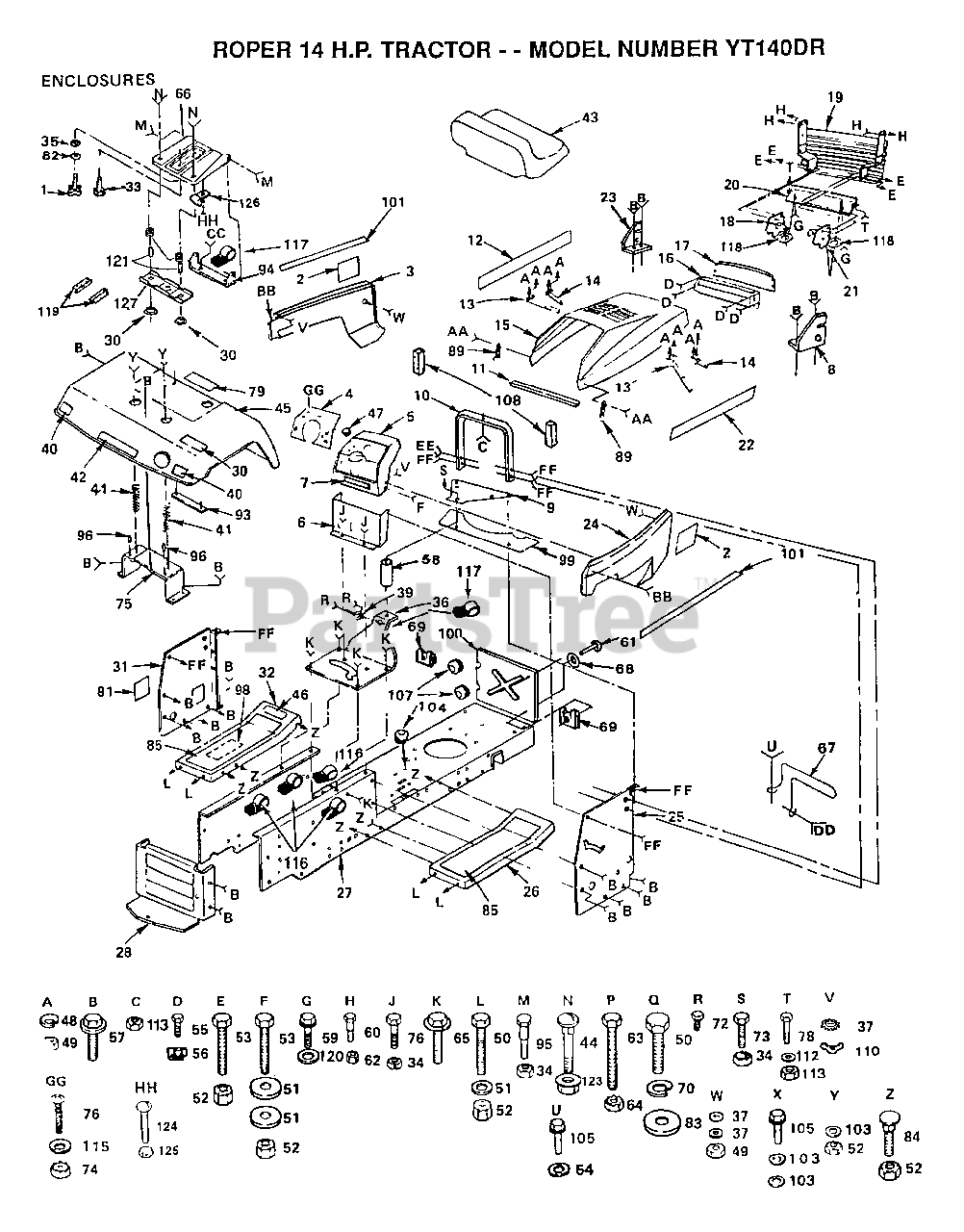

ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

2

Electrolux/AYP 121680X

NLA

$

$

Not available

3

Electrolux/AYP 108372X388

SUB= 150302X505

$

$

Not available

4

Electrolux/AYP 121448X011

DASH PLATE

$

$

Not available

5

Electrolux/AYP 121312X

DASH

$

$

Not available

6

Electrolux/AYP 104805X

LOWER DASH
(Superseded to 532104805)

$

$

Not available

7

Electrolux/AYP 109821X

SUB= 138956
(Superseded to 532109821)

$

$

Not available

8

Electrolux/AYP 110853X

SUPPORT RH YTH
(Superseded to 532110853)

$

$

Not available

9

Electrolux/AYP 106965X

SUB= 140181

$

$

Not available

10

Electrolux/AYP 110829X

SUB= 124130X

$

$

Not available

11

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

12

Electrolux/AYP 121587X

NLA

$

$

Not available

13

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

14

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

15

Electrolux/AYP 108370X388

SUB= 150301X505

$

$

Not available

16

Electrolux/AYP 104613X

SUB= 147717
(Superseded to 583678801)

$6.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

19

Electrolux/AYP 122100X

GRILL ASSY

$

$

Not available

20

Electrolux/AYP 105419X388

NLA

$

$

Not available

21

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

22

Electrolux/AYP 121588X

NLA

$

$

Not available

23

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

24

Electrolux/AYP 108371X388

SUB= 140679X505

$

$

Not available

26

Electrolux/AYP 105464X388

FOOTREST-R.H.

$

$

Not available

27

Electrolux/AYP 121277X

CHASSIS ASSY

$

$

Not available

28

Electrolux/AYP 121306X

SUB= 127866
(Superseded to 127866)

$

$

Not available

30

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 105523X

DASH PANEL T
(Superseded to 124118X)

$

$

Not available

32

Electrolux/AYP 105465X388

FOOTREST LH YT

$

$

Not available

33

Electrolux/AYP 121144X

SUB= 127018X

$

$

Not available

34

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available

36

Electrolux/AYP 108263X013

NLA

$

$

Not available

37

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

40

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

41

Electrolux/AYP 121067X

SPRING T

$

$

Not available

42

Electrolux/AYP 121586X

NLA

$

$

Not available

43

Electrolux/AYP 121442X

SUB= 140119

$

$

Not available

44

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 121642X388

FENDER

$

$

Not available

46

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

47

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

49

Electrolux/AYP 73490400

SUB= 146525

$

$

Not available

50

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

51

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 17211010

SCREW LT

$2.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

59

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 105751X

SUB= 123650X

$

$

Not available

62

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

64

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 121247X

SUB= 155925

$

$

Not available

67

Electrolux/AYP 108885X

GUARD MUFFLER HYT

$

$

Not available

68

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

70

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

73

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

76

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 17190412

SCREW
(Superseded to 817190412)

$

$

Not available

79

Electrolux/AYP 120822X

DECAL
(Superseded to 532120822)

$

$

Not available

81

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

82

Electrolux/AYP 19171720

WASHER

$

$

Not available

83

Electrolux/AYP 19131212

WASHER T
(Superseded to 819131212)

$

$

Not available

84

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

85

Electrolux/AYP 109864X

SUB= 108256X

$

$

Not available

89

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$4.99

$

In Stock, Qty 20+

0

93

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

94

Electrolux/AYP 105513X

SUB= 140551

$

$

Not available

95

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

96

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 109740X

REAR BAFFLE T

$

$

Not available

100

Electrolux/AYP 108105X

SUB= 133746

$

$

Not available

101

Electrolux/AYP 121589X

NLA

$

$

Not available

103

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

105

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, Qty 7

0

107

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

108

Electrolux/AYP 109459X

STRIP - FOAM

$

$

Not available

110

Electrolux/AYP 73490400

SUB= 146525

$

$

Not available

112

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 4 left!

0

113

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

115

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 5320R

INSUL CLIP T
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

117

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

118

Electrolux/AYP 19111212

WASHER
(Superseded to 819111212)

$3.99

$

In Stock, Qty 20+

0

119

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

120

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, Qty 5

0

123

Electrolux/AYP 73900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

124

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

125

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

126

Electrolux/AYP 4171R

CLIP T

$

$

Not available

127

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0
