YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Agri-Fab Transaxle Parts Diagram

Yard Tractor

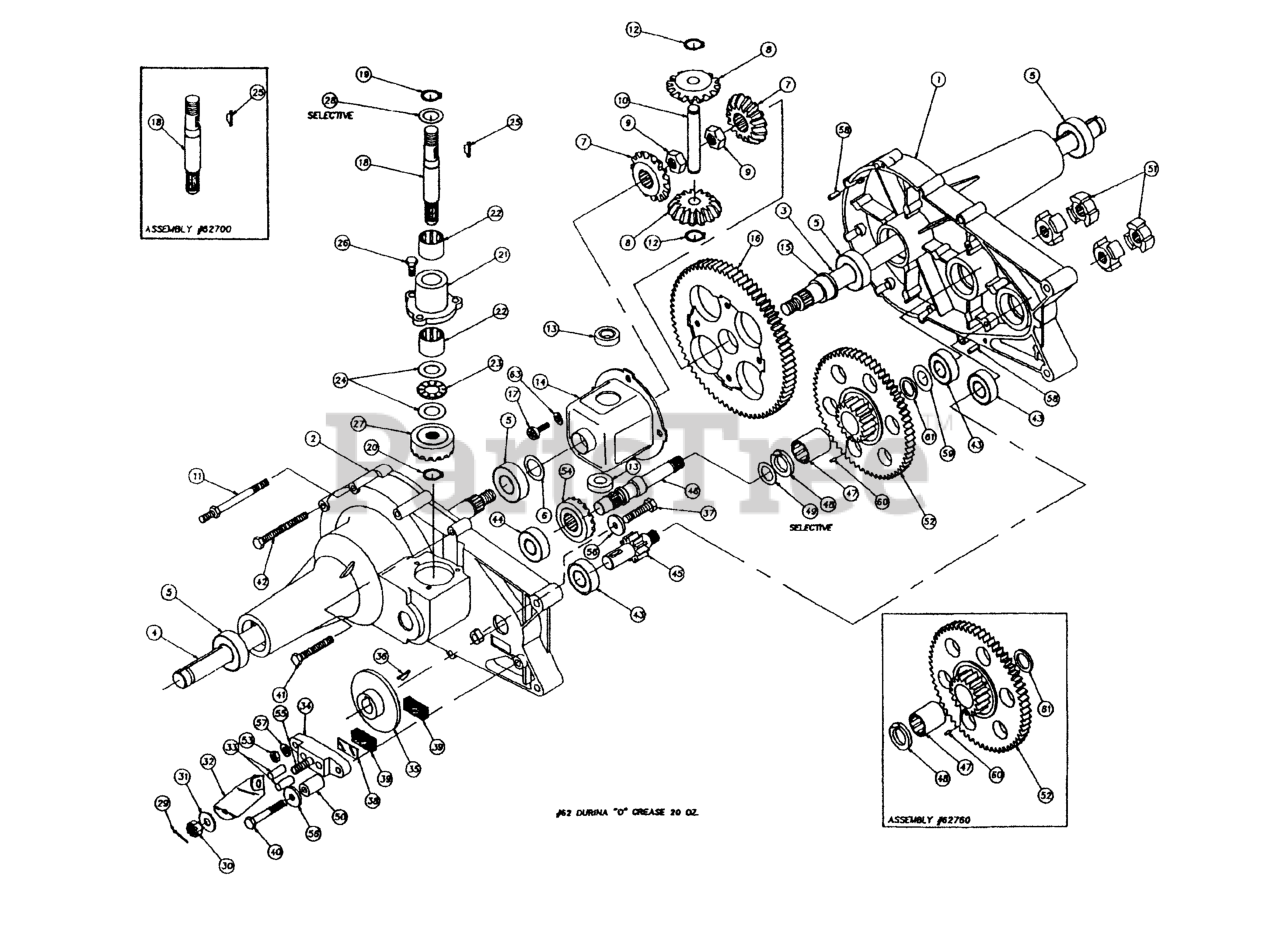

Agri-Fab Transaxle Parts Diagram

  • Title

1

Husqvarna 532122614

HSG HALF LH

$

$

Not available

2

Husqvarna 532122615

HSG HALF RH

$

$

Not available

3

Husqvarna 532122616

AXLE LH

$

$

Not available

4

Husqvarna 532122620

AXLE RH

$

$

Not available

5

Husqvarna 532122621

BEARING BALL 44121

$

$

Not available

6

Husqvarna 532122622

WASHER FLAT (44008)

$

$

Not available

7

Husqvarna 532122623

GEAR MITER

$

$

Not available

8

Husqvarna 532122624

GEAR MITER KIT 71310

$

$

Not available

9

Husqvarna 532122625

NUT
(Superseded to 584282101)

$

$

Not available

10

Husqvarna 532122626

SHAFT CROSS

$

$

Not available

11

Husqvarna 532122688

SCREW-STUD

$

$

Not available

12

Husqvarna 532122629

SNAP RING

$

$

Not available

13

Husqvarna 532122631

BEARING THRUST

$

$

Not available

14

Husqvarna 532122633

HOUSING DIFF 62590

$

$

Not available

15

Husqvarna 532122634

BEARING FLANGE

$

$

Not available

16

Husqvarna 532122640

GEAR

$

$

Not available

17

Husqvarna 532122641

SCREW

$

$

Not available

18

Husqvarna 532122642

SHAFT INPUT
(Superseded to 532137195)

$433.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532122643

SNAP RING

$

$

Not available

20

Husqvarna 532122644

RET RING (44144)

$

$

Not available

21

Husqvarna 532122645

HOUSING INPUT
(Superseded to 532155892)

$433.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532122646

BEARING NEEDLE

$

$

Not available

23

Husqvarna 532122647

BEARING.NEEDLE THRUST 44139

$

$

Not available

24

Husqvarna 532122648

WASHER 44109

$

$

Not available

25

Husqvarna 532122649

KEY.44136.HYDRO

$

$

Not available

26

Husqvarna 532122650

SCREW

$

$

Not available

27

Husqvarna 532122651

GEAR (44078)

$

$

Not available

28

Husqvarna 532123061

WASHER
(Superseded to 532170404)

$

$

Not available

28

Husqvarna 532122678

WASHER FLAT NLA

$

$

Not available

28

Husqvarna 532122654

WASHER 44151

$

$

Not available

29

Husqvarna 532122656

PIN COTTER

$

$

Not available

30

Husqvarna 532122653

WASHER

$

$

Not available

31

Husqvarna 532122659

WASHER FLAT
(Superseded to 532142884)

$

$

Not available

32

Husqvarna 532122660

ARM BRAKE ACTUATO

$

$

Not available

33

Husqvarna 532122662

PIN BRAKE ACTUATO

$

$

Not available

34

Husqvarna 532122663

BRAKE YOKE
(Superseded to 584289701)

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532122664

DISC BRAKE

$

$

Not available

36

Husqvarna 532123065

KEY

$

$

Not available

37

Husqvarna 532122666

SCREW NLA

$

$

Not available

38

Husqvarna 532122667

PLATE PUCK

$

$

Not available

39

Husqvarna 532122668

PUCK BRAKE
(Superseded to 532142883)

$5.99

$

In Stock, only 2 left!

0

40

Husqvarna 532123066

SCREW

$

$

Not available

41

Husqvarna 532122670

SCREW

$

$

Not available

42

Husqvarna 532122671

SCREW

$

$

Not available

43

Husqvarna 532126982

BEARING BALL
(Superseded to 532122672)

$

$

Not available

44

Husqvarna 532122673

BEARING BALL #44232

$

$

Not available

45

Husqvarna 532122674

SHAFT PINION #44083

$

$

Not available

46

Husqvarna 532122675

SHAFT DRIVE

$

$

Not available

47

Husqvarna 532123059

NEEDLE BEARING 44342

$

$

Not available

48

Husqvarna 532123060

THRUST WASHER 44343

$

$

Not available

49

Husqvarna 532122654

WASHER 44151

$

$

Not available

49

Husqvarna 532123061

WASHER
(Superseded to 532170404)

$

$

Not available

50

Husqvarna 532122689

SPACER
(Superseded to 539122689)

$

$

Not available

51

Husqvarna 532121839

COUPLING 44084

$

$

Not available

52

Husqvarna 532126975

GEAR 60&17 TOOTH

$

$

Not available

53

Husqvarna 532122682

NUT

$

$

Not available

54

Husqvarna 532122683

GEAR DR PINION

$

$

Not available

55

Husqvarna 532122684

BOLT SQ HD

$

$

Not available

56

Husqvarna 532122685

WASHER

$

$

Not available

57

Husqvarna 532122686

WASHER

$

$

Not available

58

Husqvarna 532122687

PIN ROLL

$

$

Not available

59

Husqvarna 532122652

WASHER

$

$

Not available

60

Husqvarna 532123062

DOWEL PIN

$

$

Not available

61

Husqvarna 532123063

SEAL GREASE

$

$

Not available

62

Husqvarna 532126976

SHELL, GREASE #50416

$

$

Not available

63

Husqvarna 532126977

WASHER

$

$

Not available

65

Husqvarna 532126980

ASS'Y GEAR REDUCT

$

$

Not available

66

Husqvarna 532126981

SHAFT INPUT

$

$

Not available

Husqvarna 532121431

TRANSAXLE ASSY

$

$

Not available
