YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Chassis And Enclosures (Part 2) Parts Diagram

Yard Tractor

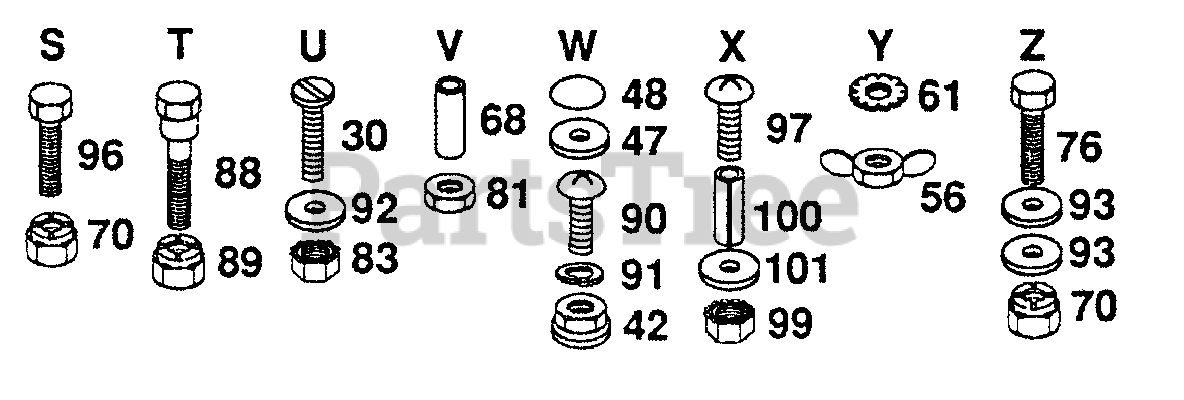

Chassis And Enclosures (Part 2) Parts Diagram

  • Title

30

Husqvarna 874180512

Screw, Mach. Cr. Threaded 5/16-18x3/4

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 532110357

Washer, Cap, Snap

$

$

Not available

48

Husqvarna 532110356

Cap, Snap

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 873490400

Nut, Wing
(Superseded to 532146525)

$

$

Not available

61

Husqvarna 811030400

Washer, Lock, Int/Ext Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

68

Husqvarna 532001260

Spacer

$

$

Not available

70

Husqvarna 873680600

Nut, Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874760616

Bolt, Hex 3/8 - 16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873220400

Nut, Fin, Hex 1/4 - 20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

83

Husqvarna 873510500

Nut, Keps 5/16 - 18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532123481

Bolt, Shoulder 1/4 - 20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 873680400

Nut, Crownlock 1/4 - 20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

90

Husqvarna 874191008

Screw, Pan, Mach. #10 - 24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 810071000

Washer, Lock #10

$4.99

$

In Stock, Qty 20+

0

92

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

93

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

96

Husqvarna 874760612

Bolt, Hex 3/8 - 16 x 3/4

$4.99

$

In Stock, Qty 17

0

97

Husqvarna 874981020

Screw, Mach. Cr. Pan #10-24x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

99

Husqvarna 873731000

Nut, Keps 10 - 24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532007206

Spacer, Split 10 x 3/4

$7.49

$

In Stock, Qty 15

0

101

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Gauge

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 532124480

Decal, Hood, L.H.

$

$

Not available

Husqvarna 532124481

Decal, Hood, R.H.

$

$

Not available

Husqvarna 532124483

Decal, Grill, Logo

$

$

Not available

Husqvarna 532124486

Decal, Side Panels

$

$

Not available

Husqvarna 532124484

Decal Fender (Fender Rear)

$

$

Not available

Husqvarna 532120822

Decal, Caution (Fender Front)

$

$

Not available

Husqvarna 532101892

Decal, Clutch/Brake

$

$

Not available

Husqvarna 532121215

Decal, Belt Instruction (Under Footrest)

$

$

Not available

Husqvarna 532108813

Decal, Operating Instruction (Dash)

$

$

Not available
