YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Mower Deck (Part 1) Parts Diagram

Yard Tractor

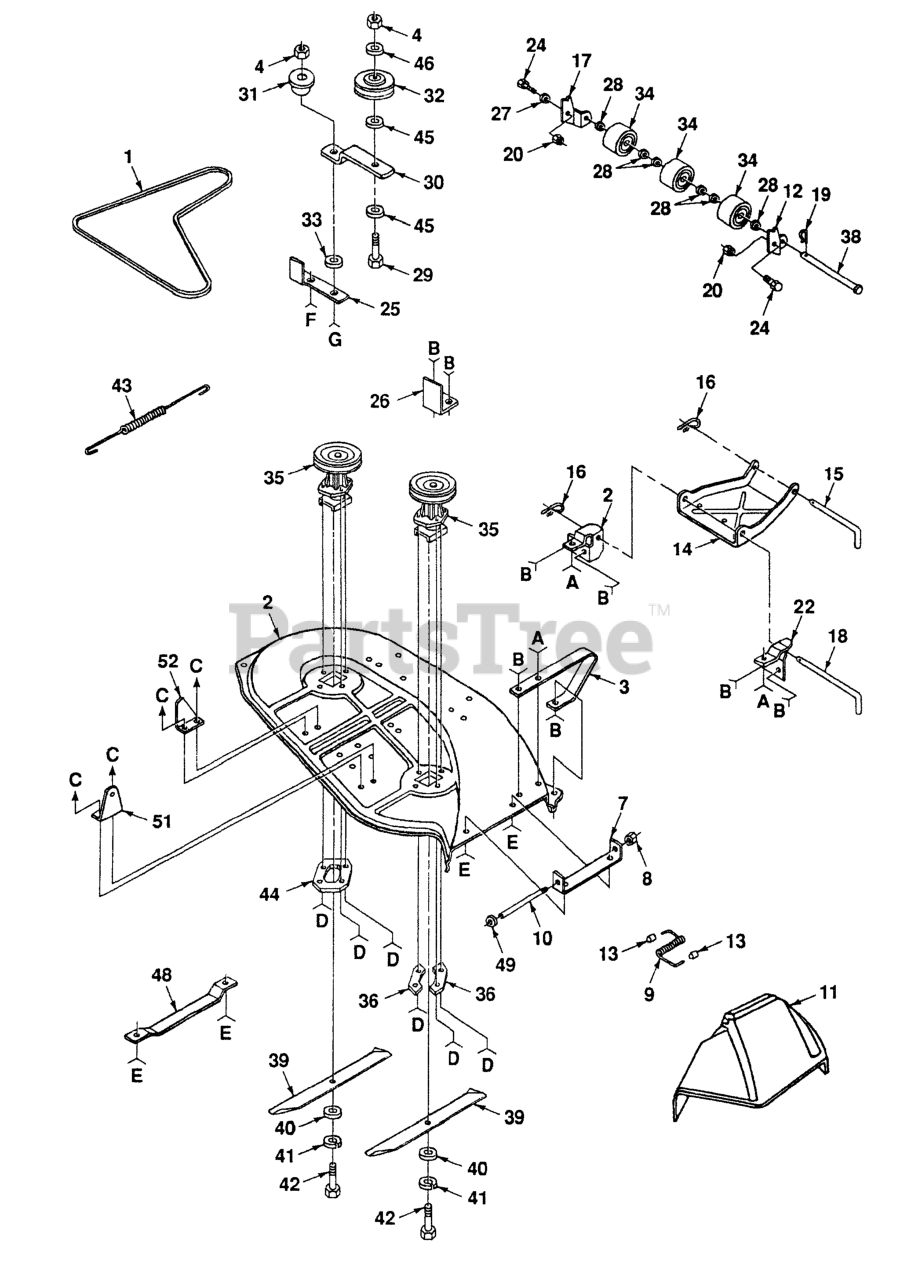

Mower Deck (Part 1) Parts Diagram

  • Title

1

Husqvarna 532106085

V-BELT T

$51.99

$

In Stock, only 1 left!

0

2

Husqvarna 532121458

HOUSING
(Superseded to 532144726)

$

$

Not available

3

Husqvarna 532008417

RUNNER RH LT
(Superseded to 532128772)

$

$

Not available

4

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532105896

DEFLECTOR BRKT LT
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, Qty 16

0

10

Husqvarna 532106735

ROD-HINGE T

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532106736

SHIELD.DEFLECTOR.MOWER.38.BL

$

$

Not available

12

Husqvarna 532109647

BRACKET RH T NLA

$

$

Not available

13

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532105662

LINK,PARALLEL

$

$

Not available

15

Husqvarna 532105744

ROD,FRT PARALL LT

$

$

Not available

16

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 532109646

BRACKET LH T

$

$

Not available

18

Husqvarna 532109835

HINGE PIN T

$

$

Not available

19

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

22

Husqvarna 532109597

BRACKET LH T

$

$

Not available

24

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532109503

SUPPORT ARM T

$

$

Not available

26

Husqvarna 532109504

STOP T

$

$

Not available

27

Husqvarna 819161616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

28

Husqvarna 819151610

WASHER T
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

29

Husqvarna 874760636

BOLT

$5.99

$

In Stock, only 1 left!

0

30

Husqvarna 532127162

ARM-IDLER

$

$

Not available

31

Husqvarna 532106902

SPACER RETAINER

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 532121316

PULLEY.IDLER.FLAT.MOWER.BLK.PT

$56.99

$

In Stock, only 4 left!

0

33

Husqvarna 532106513

WASHER, WEAR LT (1 2)

$6.99

$

In Stock, only 4 left!

0

34

Husqvarna 532109729

ROLLER T

$

$

Not available

35

Husqvarna 532121687

JACKSHAFT.38"LT

$

$

Not available

36

Husqvarna 532100668

SUPPORT PLATE LT

$

$

Not available

38

Husqvarna 532109776

PIVOT PIN T

$

$

Not available

39

Husqvarna 532121263

BLADE
(Superseded to 532143978)

$31.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 874610624

BOLT.3/8-24X1-1/2

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532102727

SPRING.EXT.8.5"

$

$

Not available

44

Husqvarna 532110445

SUPPORT T

$

$

Not available

45

Husqvarna 819131210

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 9

0

49

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$

$

Not available

51

Husqvarna 532105857

BRKT, SUSP RH LT

$

$

Not available

52

Husqvarna 532108673

BRKT,SUSP REAR LH

$

$

Not available

Husqvarna 532123928

MOWER ASSY NLA

$

$

Not available

Husqvarna 532108682

DECAL LT NLA

$

$

Not available

Husqvarna 532121349

DECAL WARNING

$

$

Not available

Husqvarna 532109820

DECAL YT

$

$

Not available
