YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Mower Deck (Part 1) Parts Diagram

Yard Tractor

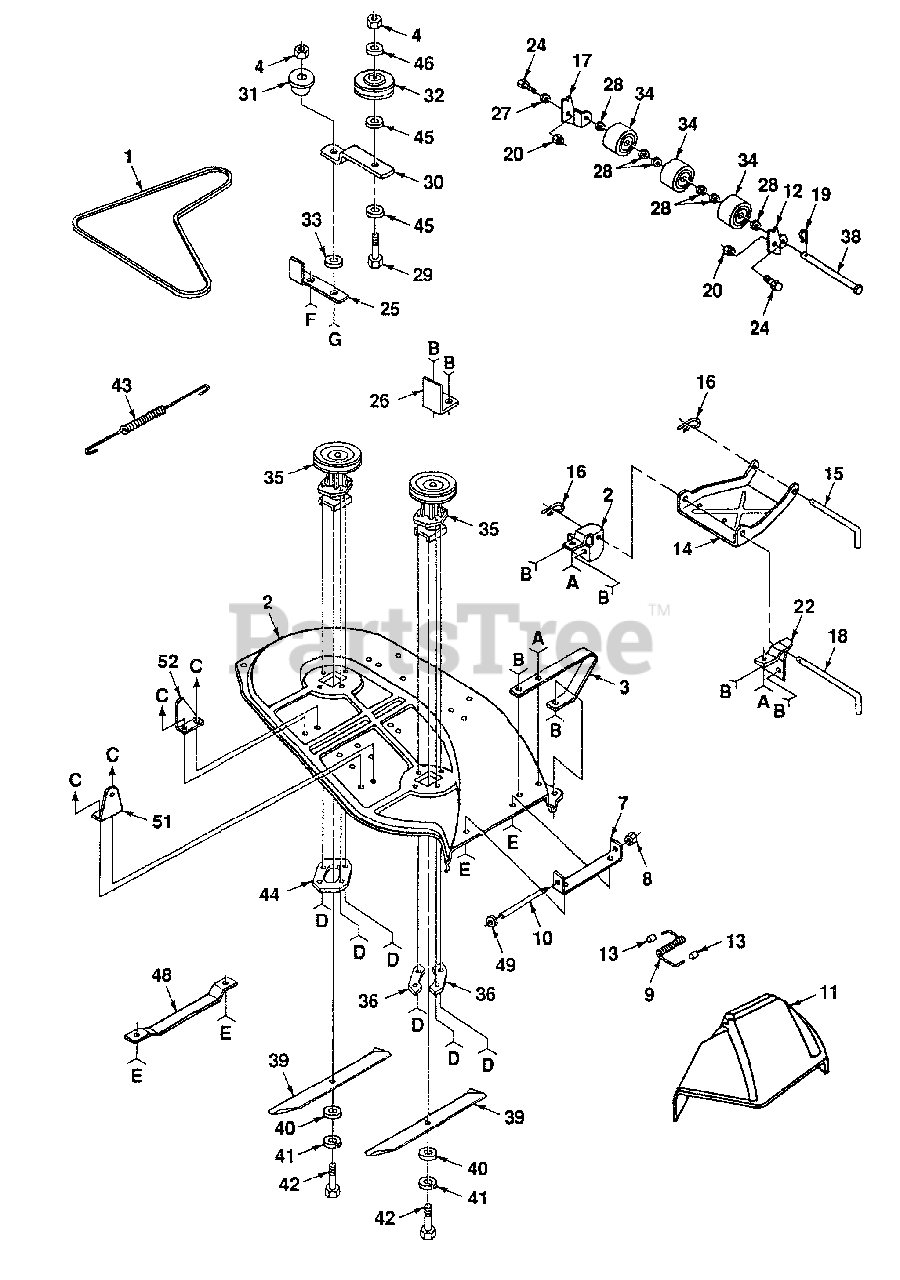

Mower Deck (Part 1) Parts Diagram

  • Title

1

Husqvarna 532106085

V-Belt

$36.99

$

In Stock, only 1 left!

0

2

Husqvarna 532121458

Housing Assembly
(Superseded to 532144726)

$

$

Not available

3

Husqvarna 532008417

Runner, R.H.
(Superseded to 532128772)

$

$

Not available

4

Husqvarna 873680600

Nut, Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532105896

Bracket, Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 532110452

Nut, Push

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532106734

Spring, Deflector
(Superseded to 532123713)

$5.99

$

In Stock, Qty 9

0

10

Husqvarna 532106735

Rod, Hinge

$8.99

$

In Stock, only 1 left!

0

11

Husqvarna 532106736

Deflector, Shield

$

$

Not available

12

Husqvarna 532109647

Bracket, Nose Roller, R.H.

$

$

Not available

13

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532105662

Link, Parallel

$

$

Not available

15

Husqvarna 532105744

Pin, Hinge, Front

$

$

Not available

16

Husqvarna 532004921

Spring, Retainer

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 532109646

Bracket, Nose Roller, L.H.

$

$

Not available

18

Husqvarna 532109835

Pin, Hinge, Rear

$

$

Not available

19

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

20

Husqvarna 873680500

Nut, Crownlock 5/16 - 18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532109597

Bracket, Lift, L.H.

$

$

Not available

24

Husqvarna 874760512

Bolt, Hex 5/16 - 18 x 1/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532109503

Support, Arm

$

$

Not available

26

Husqvarna 532109504

Stop, Deck, Front

$

$

Not available

27

Husqvarna 819161616

Washer 1/2 x 1 x 16 Gauge
(Superseded to 734117801)

$

$

Not available

28

Husqvarna 819151610

Washer 15/32 x 1 x 10 Gauge
(Superseded to 734117801)

$

$

Not available

29

Husqvarna 874760636

Bolt 3/8 - 16 x 2

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532127162

Arm, Idler

$

$

Not available

31

Husqvarna 532106902

Spacer

$2.99

$

In Stock, only 2 left!

0

32

Husqvarna 532121316

Pulley, Idler

$37.99

$

In Stock, only 4 left!

0

33

Husqvarna 532106513

Washer, Wear 1/16"

$3.99

$

In Stock, only 3 left!

0

34

Husqvarna 532109729

Roller, Nose

$

$

Not available

35

Husqvarna 532121687

Mandrel Assembly

$

$

Not available

36

Husqvarna 532100668

Plate, Support, Mandrel

$

$

Not available

38

Husqvarna 532109776

Pin, Pivot

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532121263

Blade, Mower, Hi-Lift
(Superseded to 532143978)

$24.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 874610624

Bolt, Hex 3/8 - 24 x 1-1/2 Grade 5

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532102727

Spring, Extension

$

$

Not available

44

Husqvarna 532110445

Plate, Support, Mandrel

$10.99

$

Usually ships in 3-10 days

0

45

Husqvarna 819131210

Washer 13/32 x 3/4 x 10 Gauge
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532125074

Runner, L.H.
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

49

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$0.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532105857

Bracket, Suspension, Rear, R.H.

$

$

Not available

52

Husqvarna 532108673

Bracket, Suspension, Rear, L.H.

$

$

Not available

Husqvarna 532123928

Mower Replacement, Complete

$

$

Not available

Husqvarna 532108682

Decal, Belt Instruction

$

$

Not available

Husqvarna 532121349

Decal, Danger (Cut Finger)

$2.99

$

Usually ships in 3-10 days

0

Husqvarna 532109820

Decal, Caution (Rotating Blades)

$

$

Not available
