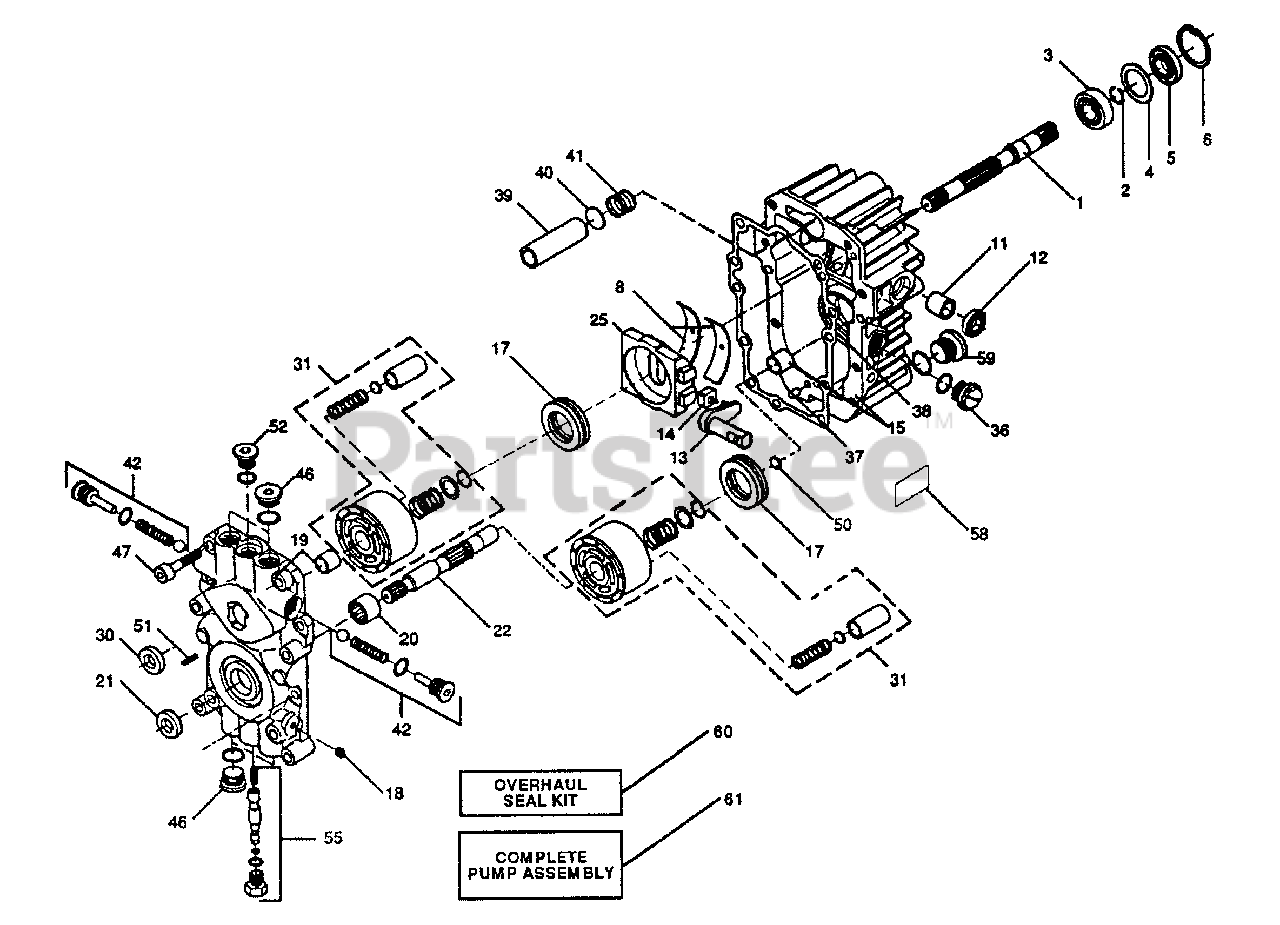

YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Sundstrand Pump Assembly Parts Diagram

Yard Tractor

Sundstrand Pump Assembly Parts Diagram

  • Title

1

Husqvarna 532122756

Shaft, Pump

$

$

Not available

2

Husqvarna 532122716

Ring, Retaining
(Superseded to 532142928)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532122745

Bearing, Ball

$85.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532122715

Spacer

$

$

Not available

5

Husqvarna 532122700

Seal, Lip
(Superseded to 532142932)

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532122699

Ring, Retaining

$

$

Not available

8

Husqvarna 532122767

Bearing, Cradle

$

$

Not available

11

Husqvarna 532122747

Bearing, Journal

$

$

Not available

12

Husqvarna 532122717

Seal, Lip

$

$

Not available

13

Husqvarna 532122748

Arm, Trunnion

$

$

Not available

14

Husqvarna 532122749

Guide, Slot

$

$

Not available

15

Husqvarna 532127146

Housing Kit, Transmission
(Superseded to 532121430)

$

$

Not available

17

Husqvarna 532122770

Bearing, Thrust Ball
(Superseded to 532150771)

$36.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532122771

Plug, Pipe

$

$

Not available

19

Husqvarna 532127147

Center Section Kit

$

$

Not available

20

Husqvarna 532122773

Bearing, Needle

$78.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532122722

Seal, Lip

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532122750

Shaft, Motor

$

$

Not available

25

Husqvarna 532127148

Swashplate, Variable

$

$

Not available

30

Husqvarna 532122723

Seal, Lip

$9.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127149

Block Kit, Cylinder (PUMP)

$

$

Not available

32

Husqvarna 532127150

Block Kit, Cylinder (MOTOR)

$

$

Currently unavailable

36

Husqvarna 532127151

Plug, Plastic

$

$

Not available

37

Husqvarna 532122786

Pin, St. Hdls.

$

$

Not available

38

Husqvarna 532122718

Gasket, Center Section

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532122731

Filter

$62.99

$

In Stock, only 1 left!

0

40

Husqvarna 532122730

Washer, Thrust

$

$

Not available

41

Husqvarna 532122728

Spring, Helical Compression

$

$

Not available

42

Husqvarna 532127152

Check Valve Kit

$26.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532122787

Plug, St. Thd.

$

$

Not available

47

Husqvarna 532122752

Screw Socket Head Cap

$

$

Not available

50

Husqvarna 532122788

Washer, Thrust

$

$

Not available

51

Husqvarna 532122789

Pin, Spiral

$

$

Not available

52

Husqvarna 532122754

Plug, St, Thd.

$

$

Not available

55

Husqvarna 532127153

Bypass Valve Kit

$94.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532122727

Adhesive Label, Bar Coded

$

$

Currently unavailable

59

Husqvarna 532122790

Plug, St. Thd.

$

$

Not available

60

Husqvarna 532127154

Overhaul Seal Kit, BDU-10
(Superseded to 539116907)

Note: Includes: items marked with asterisk and O-Rings for Check Valves and Bypass Valve

$46.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532121430

Complete Pump Assembly

$

$

Not available
