YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Transaxle And Pump Assembly Parts Diagram

Yard Tractor

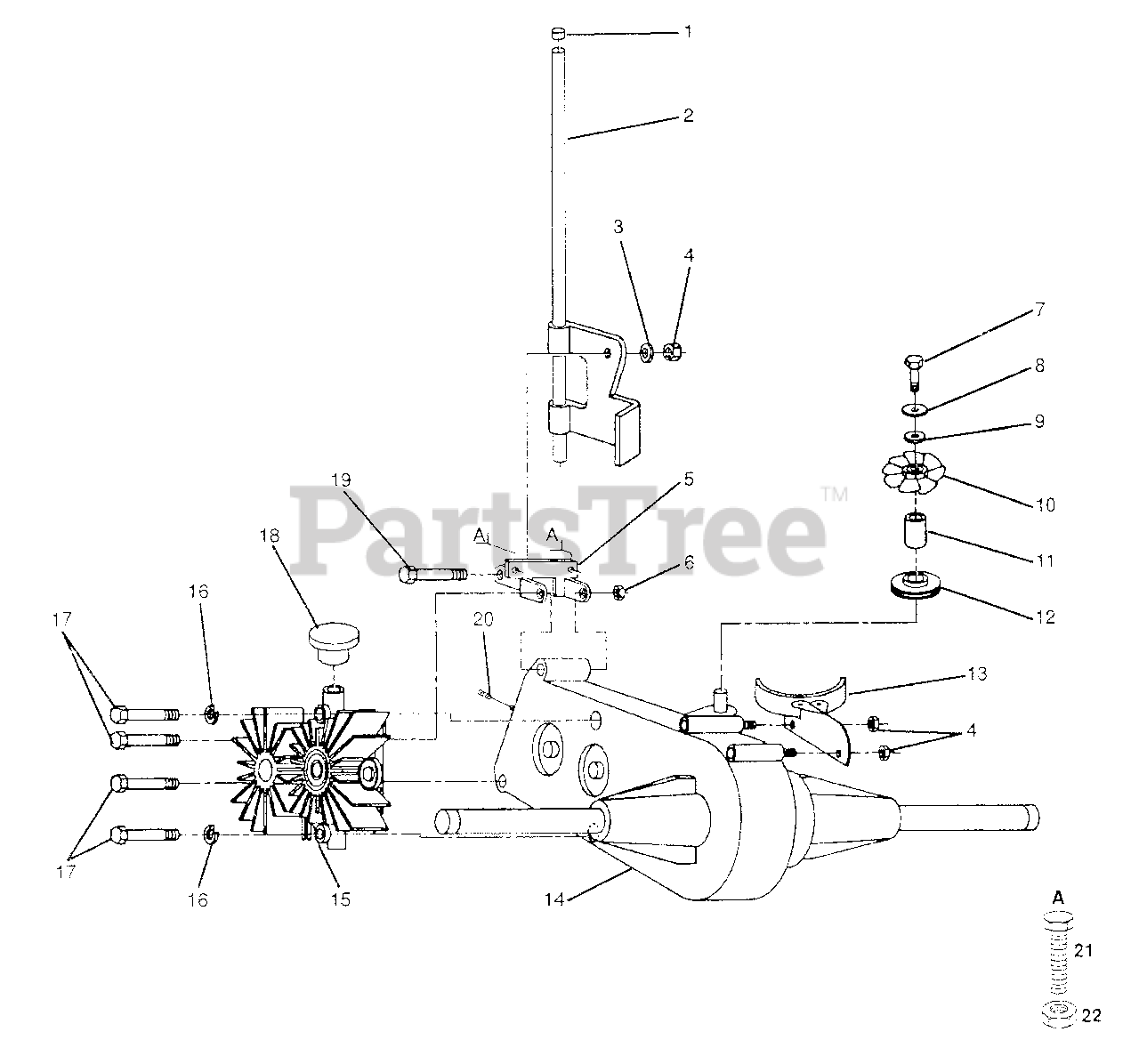

Transaxle And Pump Assembly Parts Diagram

  • Title

1

Husqvarna 532124236

Cap, Plunger
(Superseded to 532071673)

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532123634

Rod, Free Wheel Control Assembly

$

$

Not available

3

Husqvarna 532120529

Washer, Nylon

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680400

Nut, Crownlock 1/4 - 20 UNC
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532121188

Bracket, Mounting Differential

$

$

Not available

6

Husqvarna 873680500

Nut, Crownlock 5/16 - 18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 874780412

Bolt, Hex 1/4 - 20 UNC x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 810040400

Washer, Lock
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

9

Husqvarna 819092016

Washer 9/32 x 1-1 /4 x 16 Gauge

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532121186

Fan, Hydro 8"

$

$

Not available

11

Husqvarna 532121211

Standoff, Fan, Hydro

$

$

Not available

12

Husqvarna 532121180

Pulley, Transaxle

$

$

Not available

13

Husqvarna 532121182

Guard Assembly, Belt

$

$

Not available

14

Husqvarna 532121431

Differential Assembly

Note: (See pages 16 and 17 for parts breakdown)

$

$

Not available

15

Husqvarna 532121430

Pump Assembly

Note: (See page 15)

$

$

Not available

16

Husqvarna 810040500

Washer, Lock
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

17

Husqvarna 874760572

Bolt, Hex, Fin 5/16 - 18 UNC x 4.5

$

$

Not available

18

Husqvarna 532121323

Reservoir, Pump
(Superseded to 506774701)

$

$

Not available

19

Husqvarna 532124815

Bolt, Shoulder 1/4 - 20 UNC
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 874760612

Bolt 3/8 - 16 x 3/4

$4.99

$

In Stock, Qty 17

0

22

Husqvarna 873680600

Nut, Crownlock 3/8 - 16 UNC

$3.99

$

Usually ships in 3-10 days

0
