YT 140 H (954000151-B) - Husqvarna Yard Tractor (1991-01) Transaxle And Pump Assembly Parts Diagram

Yard Tractor

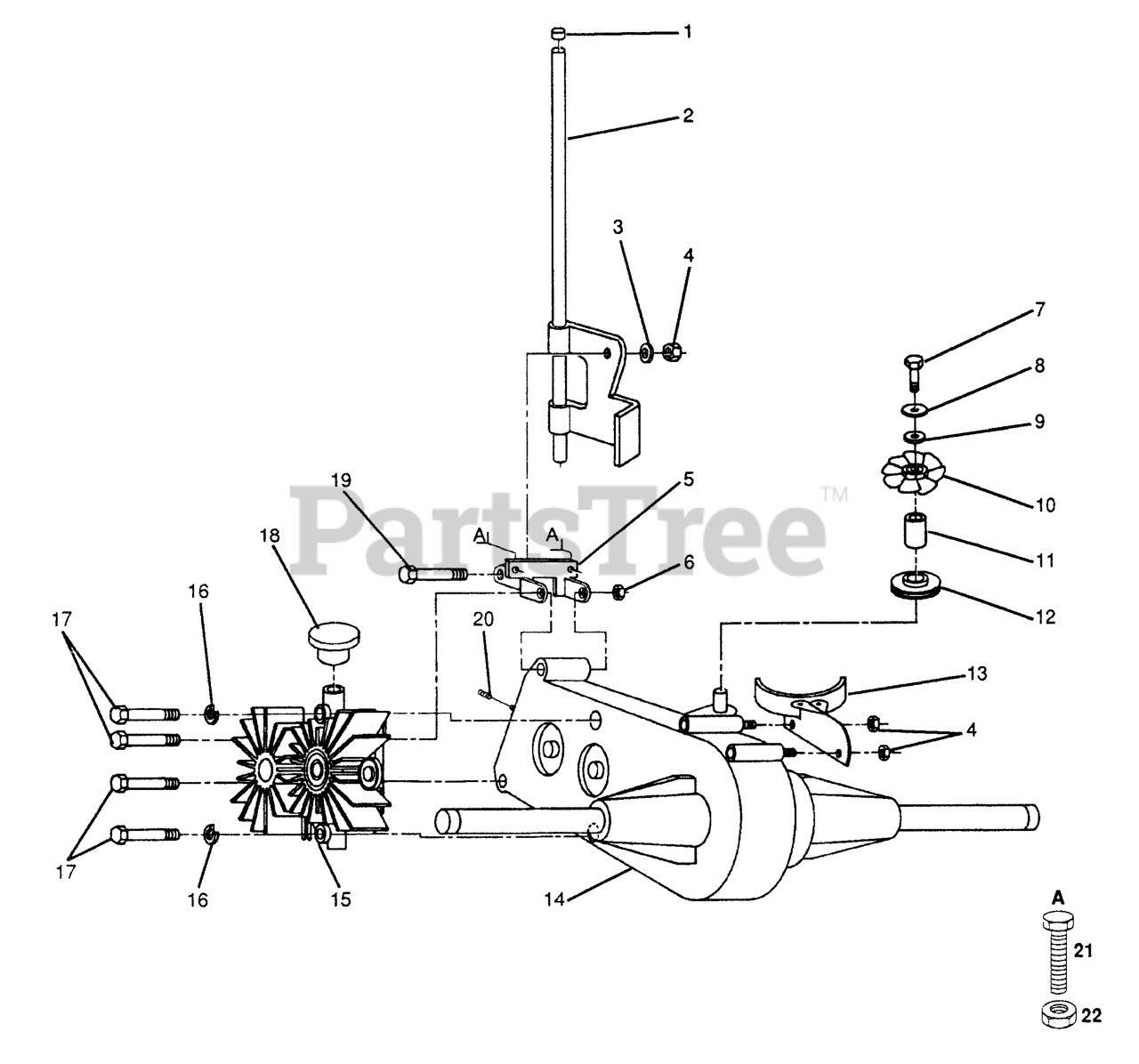

Transaxle And Pump Assembly Parts Diagram

  • Title

1

Husqvarna 532124236

CAP
(Superseded to 532071673)

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 532123634

CONTROL ASSY

$

$

Not available

3

Husqvarna 532120529

WASHER T

$

$

Not available

4

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532121188

BRACKET

$

$

Not available

6

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

7

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819092016

WASHER

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532121186

FAN NLA

$

$

Not available

11

Husqvarna 532121211

STANDOFF

$

$

Not available

12

Husqvarna 532121180

PULLEY TRANSAXLE

$

$

Not available

13

Husqvarna 532121182

GUARD ASSY

$

$

Not available

14

Husqvarna 532121431

TRANSAXLE ASSY

Note: (See pages 16 and 17 for parts breakdown)

$

$

Not available

15

Husqvarna 532121430

PUMP ASM COMP

Note: (See page 15)

$

$

Not available

16

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 874760572

Bolt, Hex, Fin 5/16 - 18 UNC x 4.5

$

$

Not available

18

Husqvarna 532121323

RESERVOIR
(Superseded to 506774701)

$

$

Not available

19

Husqvarna 532124815

BOLT T
(Superseded to 532007605)

$

$

Not available

20

Husqvarna 532121250

SPRING

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874760612

BOLT

$3.99

$

In Stock, Qty 8

0

22

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0
