YT 161 H (127589) - Husqvarna Yard Tractor (1990-11) Chassis And Enclosures (Part 1) Parts Diagram

Yard Tractor

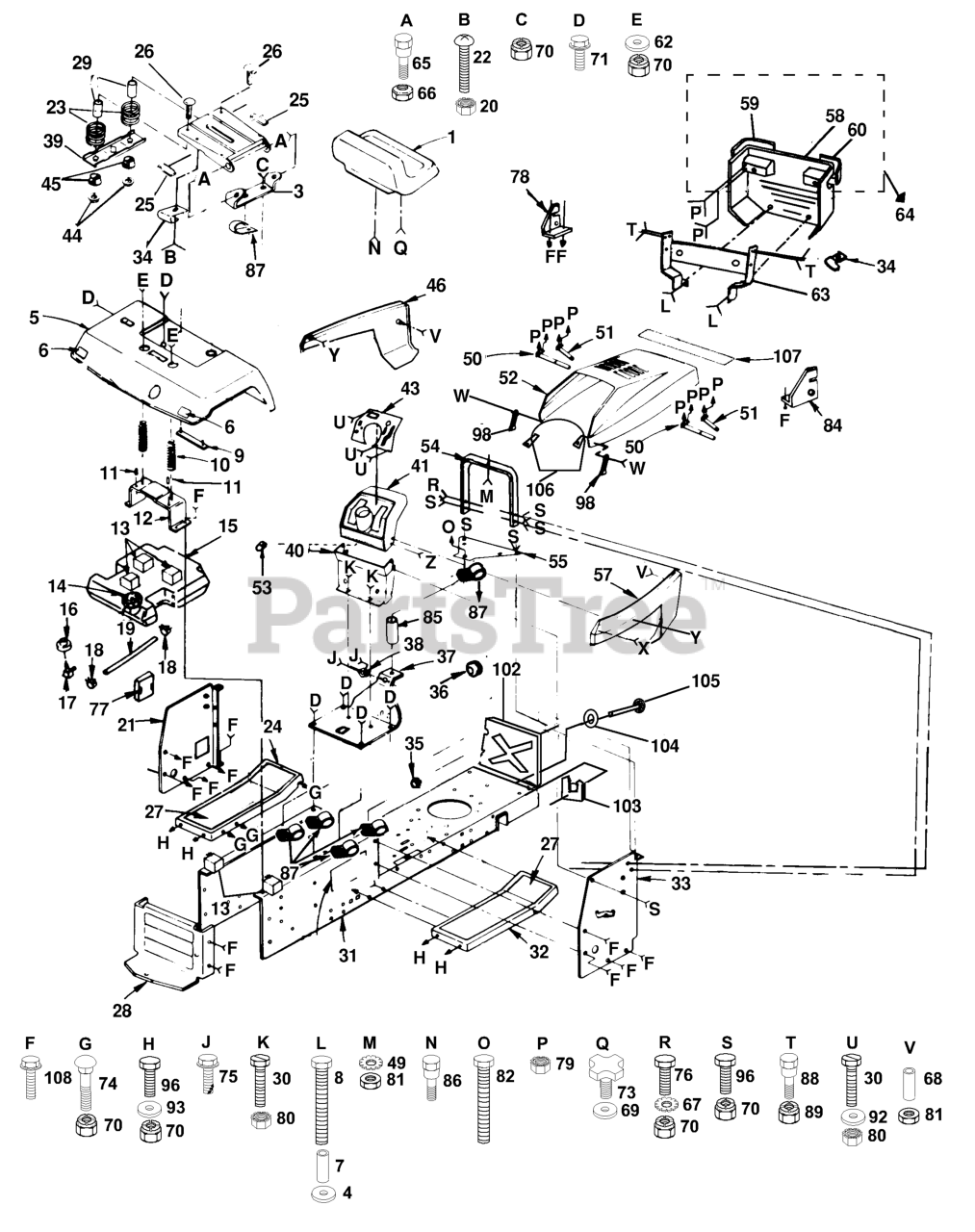

Chassis And Enclosures (Part 1) Parts Diagram

  • Title

1

Husqvarna 532124186

SEAT
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532124294

PAN SEAT

$

$

Not available

3

Husqvarna 532126656

BRKT,SEAT PIVOT

$

$

Not available

4

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

5

Husqvarna 532124927

FENDER
(Superseded to 532121642)

$

$

Not available

6

Husqvarna 532106202

REFLECTOR-TAIL YT

$

$

Not available

7

Husqvarna 532121235

SPACER

$

$

Not available

8

Husqvarna 874760440

BOLT

$

$

Not available

9

Husqvarna 532105511

STRAP-FENDER YT
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 532105531

NUT-PUSH YT

$

$

Not available

12

Husqvarna 532105509

BRACKET-FENDER YT
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532006431

PAD-SPACER T

$

$

Not available

14

Husqvarna 532124462

FUEL CAP ASS'Y

$

$

Not available

15

Husqvarna 532106020

FUEL TANK LT

$

$

Not available

16

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532124951

FUEL TANK STEM GT
(Superseded to 532008710)

$

$

Not available

18

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

19

Husqvarna 532124953

FUEL LINE T
(Superseded to 532008542)

$

$

Not available

20

Husqvarna 873951000

Nut, Keps #10

$

$

Not available

21

Husqvarna 532124118

PANEL DASH LH NLA

$

$

Not available

22

Husqvarna 874641008

SCREW **

$

$

Not available

23

Husqvarna 532123740

SPRING COMPRESSED

$4.99

$

In Stock, only 2 left!

0

24

Husqvarna 532124899

ROLL PIN NLA

$

$

Not available

25

Husqvarna 532121251

STRIP FORM

$

$

Not available

26

Husqvarna 872170410

Bolt, Carriage 1/4-20 x 1-1/4

$

$

Not available

27

Husqvarna 532108256

PAD FOOTREST T

$

$

Not available

28

Husqvarna 532121306

DRAWBAR
(Superseded to 532145009)

$

$

Not available

29

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 874180512

Screw, Mach. Cr. Thd. 5/16-18 x 3/4

$

$

Not available

31

Husqvarna 532127166

CHASSIS

$

$

Not available

32

Husqvarna 532124914

PAD,SPACER
(Superseded to 532145243)

$

$

Not available

33

Husqvarna 532110828

PANEL LT NLA

$

$

Not available

34

Husqvarna 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

35

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

36

Husqvarna 532124934

SNAP BUSHING T

$

$

Not available

37

Husqvarna 532124766

SADDLE
(Superseded to 532121195)

$

$

Not available

38

Husqvarna 532124720

BUSHING LT
(Superseded to 532155108)

$7.99

$

In Stock, Qty 11

0

39

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

40

Husqvarna 532104805

DASH LOWER YT NLA

$

$

Not available

41

Husqvarna 532124182

DASHBOARD
(Superseded to 532140452)

$

$

Not available

42

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 532124918

STRAP ASSY T

$

$

Not available

44

Husqvarna 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532121248

BUSHING

$

$

Not available

46

Husqvarna 532125009

PANEL,SIDE LH

$

$

Not available

49

Husqvarna 811050400

Washer, Lock, Tooth External 1/4
(Superseded to 810040400)

$3.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532106784

STRAP ASSY LT

$

$

Not available

51

Husqvarna 532104618

STRAP ASSY LT

$

$

Not available

52

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

53

Husqvarna 532005479

PLUG BUTTON T

$9.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532124130

SUPPORT ASS'Y

$

$

Not available

55

Husqvarna 532106965

PLATE SUPPORT T NLA

$

$

Not available

57

Husqvarna 532125008

PANEL,SIDE RH
(Superseded to 532140677)

$

$

Not available

58

Husqvarna 532127325

GRILL
(Superseded to 532157236)

$

$

Not available

59

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

$

$

Not available

60

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

$

$

Not available

62

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

63

Husqvarna 532124574

SUPPORT ASS'Y

$

$

Not available

64

Husqvarna 532127320

GRILL COMPLETE
(Superseded to 532157236)

Note: (Inc. Key 59 & 60)

$

$

Not available

65

Husqvarna 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

66

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

67

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532001260

SPACER NLA

$

$

Not available

69

Husqvarna 819171912

WASHER

$4.99

$

In Stock, Qty 11

0

70

Husqvarna 873680600

LOCKNUT

$

$

Not available

71

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$7.99

$

In Stock, only 1 left!

0

74

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

75

Husqvarna 817431008

SCREW LT
(Superseded to 817211008)

$

$

Not available

76

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

77

Husqvarna 532121794

COVER ACCESS

$

$

Not available

78

Husqvarna 532110852

SUPPORT LH YTH

$

$

Not available

79

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

80

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

81

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

82

Husqvarna 874760532

Bolt, Hex 5/16-18 x 2

$

$

Not available

84

Husqvarna 532110853

SUPPORT RH YTH

$

$

Not available

85

Husqvarna 532121236

SPACER

$

$

Not available

86

Husqvarna 532127018

BOLT,SHOULD

$5.99

$

In Stock, only 1 left!

0

87

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

88

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$

$

Not available

89

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

92

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

93

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

96

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

98

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

102

Husqvarna 532108105

SHIELD HEAT HYT

$

$

Not available

103

Husqvarna 532105839

RECEPTACLE LT

$4.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532105838

RETAINER LT

$

$

Not available

105

Husqvarna 532123650

STUD 1/4 TURN

$

$

Not available

106

Husqvarna 532126493

BAFFLE,REAR UPPER

$

$

Not available

107

Husqvarna 532105037

FOAM-STRIP LT

$

$

Not available

108

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

Husqvarna 532124480

DECAL,HOOD LH NLA

$

$

Not available

Husqvarna 532124481

DECAL,HOOD RH

$

$

Not available

Husqvarna 532124483

DECAL,GRILL HUSKY

$

$

Not available

Husqvarna 532127403

Decal, Side Panels

$

$

Currently unavailable

Husqvarna 532124484

DECAL,FENDER HUSQ

$

$

Not available

Husqvarna 532120822

DECAL

$

$

Not available

Husqvarna 532101892

DECAL

$

$

Not available

Husqvarna 532108813

DECAL HYT

$

$

Not available

Husqvarna 532121215

DECAL DRIVE BELT

$

$

Not available
