YT 16542 (960430024-06) - Husqvarna 42" Yard Tractor (2009-04) Electrical Parts Diagram

42" Yard Tractor

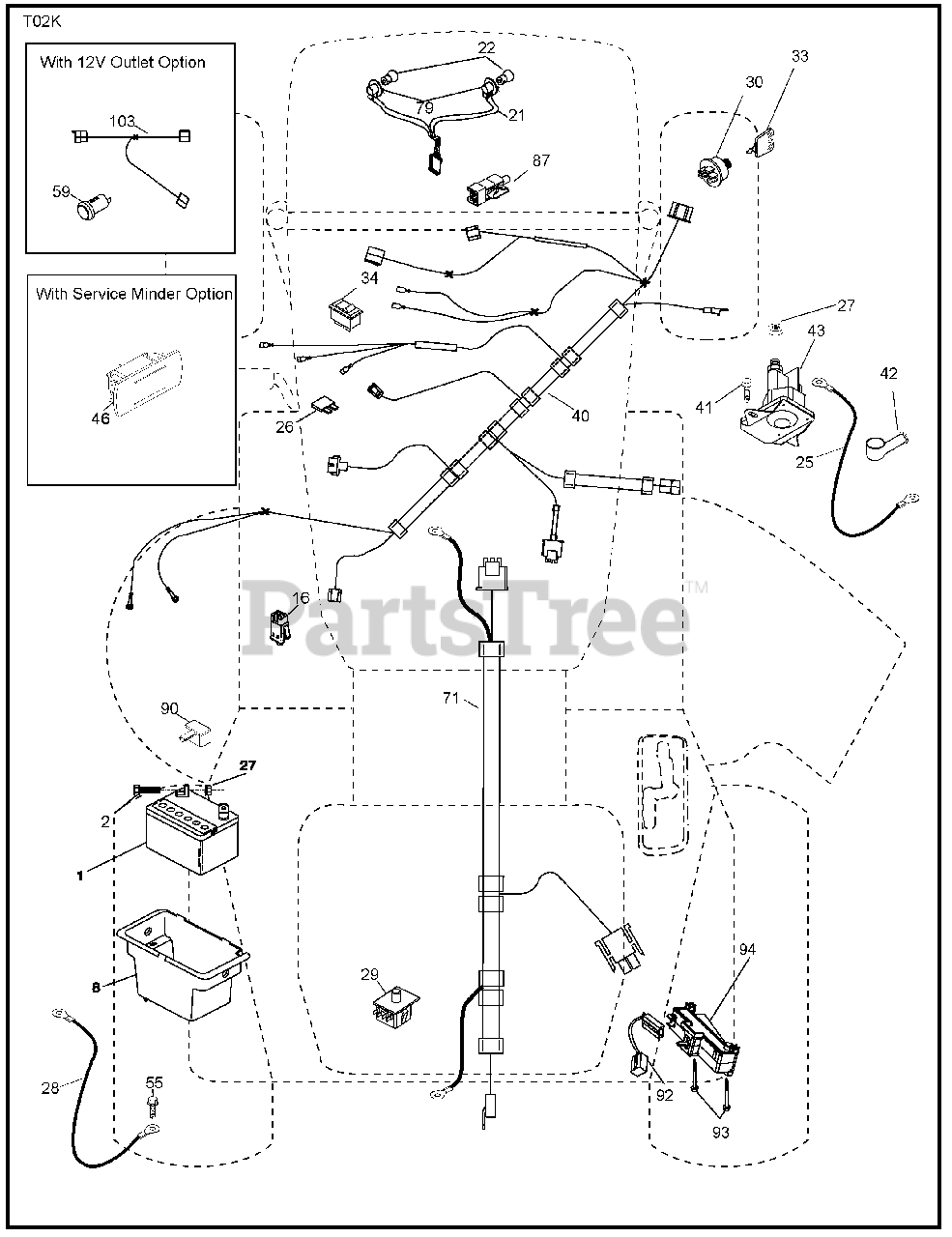

Electrical Parts Diagram

  • Title

1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 532193228

Box Battery

$31.99

$

In Stock, only 2 left!

0

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 13

0

21

Husqvarna 532400252

Harness Socket Light w/4152J

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532412894

Cable Starter

$

$

Not available

26

Husqvarna 532175158

Fuse

$5.99

$

In Stock, Qty 16

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532198885

Cable, Ground Blk

$26.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532192749

Switch, Seat

$20.99

$

In Stock, only 4 left!

0

30

Husqvarna 532193350

Switch, Ign

$26.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

Key/Chain

$11.99

$

In Stock, only 3 left!

0

34

Husqvarna 532110712

Switch Light/Reset

$9.49

$

In Stock, Qty 8

0

40

Husqvarna 532401098

Harness Ign. Dash

$96.99

$

In Stock, Qty 6

0

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 596437001)

$3.49

$

In Stock, Qty 10

0

42

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$6.99

$

In Stock, Qty 10

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 1/2 TYTT
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

71

Husqvarna 532400449

Harness Ign.

$43.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

Socket Asm. Bulb Twistlock

$11.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532197802

Switch Interlock Clutch

$20.99

$

In Stock, only 4 left!

0

90

Husqvarna 532400725

Cover Terminal
(Superseded to 532435395)

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 532196615

Harness Pigtail Reverse Switch

$17.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

Screw Plastite 10-14 x 2.0
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse ROS

$26.99

$

In Stock, only 3 left!

0
