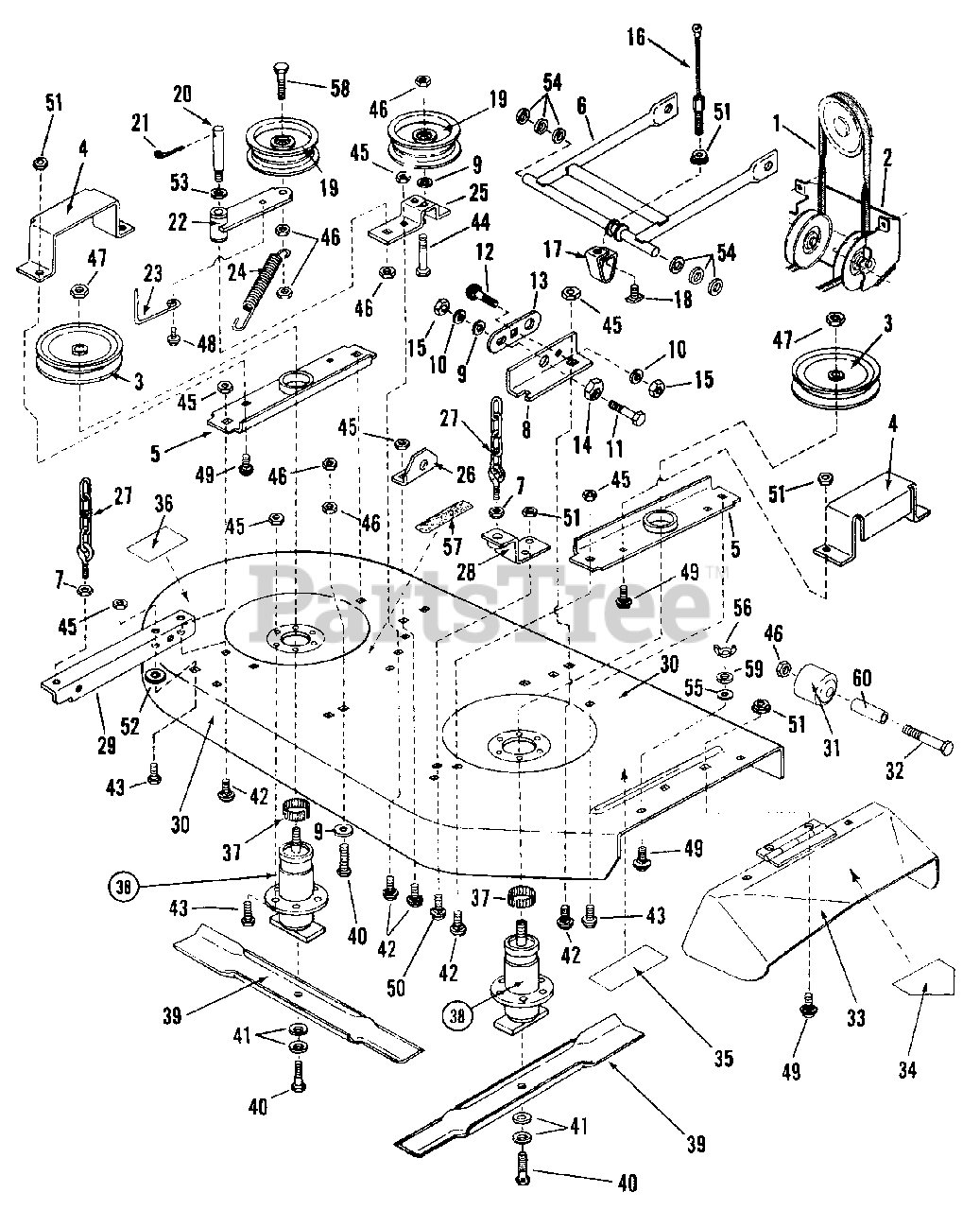

YT 16D414K (80090) - Snapper 41" Yard Tractor, 16hp Cutting Deck Parts Diagram

41" Yard Tractor, 16hp

Cutting Deck Parts Diagram

  • Title

1

Snapper 7014800

BELT, 41" Mower (A137)
(Superseded to 7014800YP)

$67.99

$

Usually ships in 2-12 days

0

2

Snapper 7057362

ASSEMBLY, Mule Drive

Note: (See "Mule Drive Assembly" illustration & parts list for breakdown)

$

$

Currently unavailable

3

Snapper 7014397

PULLEY, 5-3/4" O.D.
(Superseded to 7014397YP)

$71.99

$

Usually ships in 2-12 days

0

4

Snapper 7038080

GUARD, Pulley
(Superseded to 7038080YP)

$34.99

$

Usually ships in 2-12 days

0

5

Snapper 7038078

BRACE, Spindle
(Superseded to 7038078YP)

$34.99

$

In Stock, only 1 left!

0

6

Snapper 7049724

WELDMENT, Front Lift Arm

$

$

Not available

7

Snapper 7090665

JAM-NUT, 3/8-16 Hex
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

8

Snapper 7038181

BRACKET, Right Front
(Superseded to 7038181YP)

$28.99

$

Usually ships in 2-12 days

0

9

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

11

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head
(Superseded to 703407)

Note: Was 90563

$11.99

$

Usually ships in 2-12 days

0

12

Snapper 7091547

BOLT, 3/8-16 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7032432

LINK, Adjustment

$

$

Not available

14

Snapper 7015012

RING, Adjustment
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 11

0

16

Snapper 7015629

CABLE, Front Lift
(Superseded to 7015629YP)

$

$

Not available

17

Snapper 7038043

BRACKET, Fr. Lift Arm Hanger
(Superseded to 7038043YP)

$33.99

$

Usually ships in 2-12 days

0

18

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

19

Snapper 7023966

PULLEY, 4.1 O.D.
(Superseded to 7023966YP)

Note: Was 18585

$64.99

$

Usually ships in 2-12 days

0

20

Snapper 7035816

STUD, Idler (3/8-24)
(Superseded to 7035816YP)

Note: Was 14408

$

$

Not available

21

Snapper 7091598

COTTER-PIN, 1/8 x 1"
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, Qty 14

0

22

Snapper 7051399

ASY, Idler Arm
(Superseded to 7051399YP)

Note: (Incl. two 14409 bushings & 13864)

$138.99

$

Usually ships in 2-12 days

0

23

Snapper 7014410

GUIDE, Belt
(Superseded to 7014410YP)

$9.49

$

In Stock, only 1 left!

0

24

Snapper 7014513

SPRING, Idler Arm
(Superseded to 7014513YP)

$14.99

$

Usually ships in 2-12 days

0

25

Snapper 7038079

BRACKET, Idler
(Superseded to 7038079YP)

$23.99

$

Usually ships in 2-12 days

0

26

Snapper 7032297

BRACKET, Front Left Hanger

$

$

Not available

27

Snapper 7051749

ASY, 3/8 Bolt/Chain
(Superseded to 7053739YP)

Note: Was 51525

$20.99

$

Usually ships in 2-12 days

0

28

Snapper 7051532

BRKT, Rear Rt. Supp. (1985)

$

$

Not available

29

Snapper 7057385

BRKT, Rear Left Supp.(1985)

$

$

Not available

30

Snapper 7051916

MOWER DECK, 41"

Note: Was 49960

$

$

Not available

31

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

Note: Was 15273

$11.99

$

In Stock, Qty 15

0

32

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap, Grade 5
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, only 2 left!

0

33

Snapper 7051401

DEFLECTOR, (Side Chute)
(Superseded to 7051401YP)

Note: (Includes Decal, item 34)

$

$

Not available

34

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.99

$

In Stock, Qty 11

0

35

Snapper 7014852

DECAL, Caution (Deflector)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0

36

Snapper 7014853

DECAL, Caution (Rot. Blades)
(Superseded to 7014853YP)

$11.99

$

Usually ships in 2-12 days

0

37

Snapper 7012670

RING, Tolerance, 3/4"
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 9

0

38

Snapper 7051473

ASY, Spindle
(Superseded to 7051473YP)

Note: (Refer to "48" Cutting Deck, Belts, Pulleys" illustration & parts list)

$

$

Not available

39

Snapper 7019795

BLADE, 21" Cutter
(Superseded to 7019795BZYP)

$29.99

$

In Stock, Qty 13

0

40

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090824YP)

$4.99

$

Usually ships in 2-12 days

0

41

Snapper 7012063

CONE-WASHER
(Superseded to 703963)

$6.99

$

In Stock, Qty 16

0

42

Snapper 7091923

Carriage Bolt, 3/8"-16x3/4"
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 7091588

BOLT, 3/8-16 x 3/4" HFL
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 9

0

44

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, Qty 8

0

45

Snapper 7091619

NUT, 3/8-16 Hex Fl. Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 13

0

46

Snapper 7090289

NUT, 3/8-24 Hex Ctr. Lk.
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

47

Snapper 7090820

NUT, 3/4-16 Jam Lock
(Superseded to 7090820YP)

$5.99

$

In Stock, Qty 9

0

48

Snapper 7090741

SCREW, 1/4-20 x 5/8" HWST
(Superseded to 703054)

$4.49

$

In Stock, Qty 12

0

49

Snapper 7090799

BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

50

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

51

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

52

Snapper 7020984

WASHER, 3/8" Flat
(Superseded to 7021746YP)

$3.99

$

In Stock, Qty 9

0

53

Snapper 7090183

WASHER, 5/8 Flat
(Superseded to 7090183YP)

$4.49

$

In Stock, Qty 9

0

54

Snapper 7010935

WASHER, Spacer
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

56

Snapper 7090375

WING-NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 2 left!

0

57

Snapper 7012929

PAD

$

$

Not available

58

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$

$

Not available

59

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

60

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

In Stock, only 4 left!

0

Snapper 7014409

Flange Bearing, 9/16"
(Superseded to 7014409SM)

$7.49

$

In Stock, Qty 6

0

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.99

$

In Stock, Qty 11

0
