YT 1740 (2690155) - Snapper 40" Yard Tractor, 17hp Hopper Group - Fixed Screen (SL986269) Parts Diagram

40" Yard Tractor, 17hp

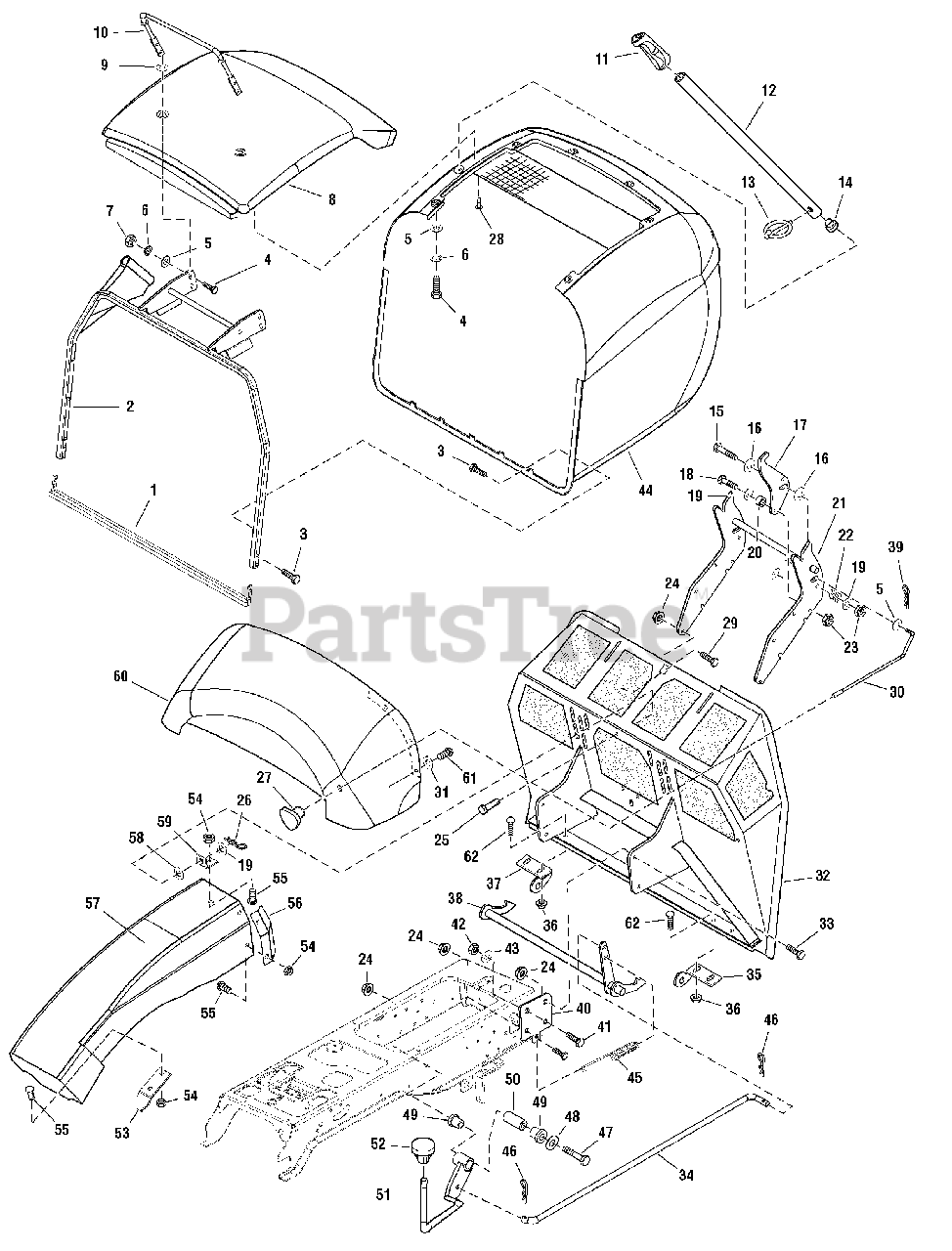

Hopper Group - Fixed Screen (SL986269) Parts Diagram

  • Title

1

Snapper 1722590

ANGLE & BAR ASSEMBLY
(Superseded to 1722590ASM)

$51.99

$

Usually ships in 2-12 days

0

2

Snapper 1724411

FRAME ASSEMBLY
(Superseded to 1724411ASM)

$353.99

$

Usually ships in 2-12 days

0

3

Snapper 1925003

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 1924009

CAPSCREW, Hex Head, 1//4-20 x 7/8
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 10

0

6

Snapper 1916964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

7

Snapper 1916622

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

8

Snapper 1726414

LID, Hopper, Red
(Superseded to 1726414SM)

$336.99

$

Usually ships in 2-12 days

0

9

Snapper 1724684

WASHER, Rubber
(Superseded to 1724684SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 1724399A

HANDLE, Hopper
(Superseded to 1724399ASM)

$33.99

$

Usually ships in 2-12 days

0

11

Snapper 1723359

GRIP
(Superseded to 1723359SM)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 1724398

TUBE, Handle
(Superseded to 1724398SM)

$75.99

$

Usually ships in 2-12 days

0

13

Snapper 1666969

PIN, Click
(Superseded to 1666969SM)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 1724553

CAP PLUG, Rubber
(Superseded to 1724553SM)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 1921978

CAPSCREW, Hex Head, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

16

Snapper 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, Qty 11

0

17

Snapper 1724651A

LATCH, Pivot
(Superseded to 1724651ASM)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

19

Snapper 1919326

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 10

0

20

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

21

Snapper 1724413

PIVOT ASSEMBLY
(Superseded to 1727580ASM)

$78.99

$

Usually ships in 2-12 days

0

22

Snapper 1714263

SPRING, Compression
(Superseded to 1714263SM)

$4.99

$

In Stock, only 1 left!

0

23

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 9

0

24

Snapper 1928352

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

25

Snapper 1723683

PIN
(Superseded to 1723683SM)

$4.99

$

Usually ships in 2-12 days

0

26

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

27

Snapper 1713855

KNOB
(Superseded to 1713855SM)

$12.99

$

Usually ships in 2-12 days

0

28

Snapper 1704351

PANEL FASTNER
(Superseded to 1704351SM)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 1921965

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 1724652

ROD, Latch
(Superseded to 1724652SM)

$12.99

$

Usually ships in 2-12 days

0

31

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

32

Snapper 1725332

BACKPLATE ASSEMBLY
(Superseded to 1725332ASM)

$626.99

$

Usually ships in 2-12 days

0

33

Snapper 1934654

CAPSCREW, Hex Head Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 13

0

34

Snapper 1724458

ROD LATCH
(Superseded to 1724458SM)

$17.99

$

Usually ships in 2-12 days

0

35

Snapper 1723182A

BRACKET, Latch LH
(Superseded to 1723182ASM)

$12.99

$

Usually ships in 2-12 days

0

36

Snapper 1931277

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

37

Snapper 1723181A

BRACKET, Latch, RH
(Superseded to 1723181ASM)

$12.99

$

Usually ships in 2-12 days

0

38

Snapper 1724540

SHAFT & ARMS ASSEMBLY
(Superseded to 1724540SM)

$44.99

$

Usually ships in 2-12 days

0

39

Snapper 1923360

PIN, Cotter, 5/8 x 3.4
(Superseded to 703892)

$3.49

$

In Stock, Qty 5

0

40

Snapper 1724566

SUPPORT, Back Plate
(Superseded to 1724566SM)

$9.99

$

Usually ships in 2-12 days

0

41

Snapper 1923114

CAPSCREW, Hex Head, 1/2-13 x 1
(Superseded to 1923114SM)

$3.99

$

In Stock, only 2 left!

0

42

Snapper 1916951

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

43

Snapper 1916966

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 1724614

HOPPER & SCREEN ASSEMBLY
(Superseded to 1724614SM)

$

$

Not available

45

Snapper 1718016

SPRING, Extension
(Superseded to 1752846YP)

$46.99

$

Usually ships in 2-12 days

0

46

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/2
(Superseded to 703872)

$4.99

$

In Stock, Qty 7

0

48

Snapper 1924940

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 1676148

BUSHING
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 10

0

50

Snapper 1669105AA

SPACER

$

$

Currently unavailable

51

Snapper 1725036

ROD & TUBE ASSEMBLY
(Superseded to 1725036SM)

$41.99

$

Usually ships in 2-12 days

0

52

Snapper 1719940

KNOB, Hopper
(Superseded to 1719940SM)

$12.99

$

Usually ships in 2-12 days

0

53

Snapper 1722881

RETAINER
(Superseded to 1722881SM)

$6.99

$

Usually ships in 2-12 days

0

54

Snapper 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

55

Snapper 1718741

SCREW, Torx Head, 1/4-20 x 5/8
(Superseded to 1718741SM)

$3.49

$

Usually ships in 2-12 days

0

56

Snapper 1723650

DEFLECTOR, Grass
(Superseded to 1723650SM)

$6.99

$

Usually ships in 2-12 days

0

57

Snapper 1722578

CHUTE, Discharge
(Superseded to 1722578SM)

$128.99

$

Usually ships in 2-12 days

0

58

Snapper 1933988

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

59

Snapper 1723363

BRACKET, Chute
(Superseded to 1723363SM)

$5.99

$

Usually ships in 2-12 days

0

60

Snapper 1724542

TRANSITION, Hopper
(Superseded to 1724542SM)

$76.99

$

Usually ships in 2-12 days

0

61

Snapper 1960556

SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4
(Superseded to 1960556SM)

$4.49

$

Usually ships in 2-12 days

0

62

Snapper 1931334

CARRIAGE BOLT, 5/16-18 x 7/8 G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0
