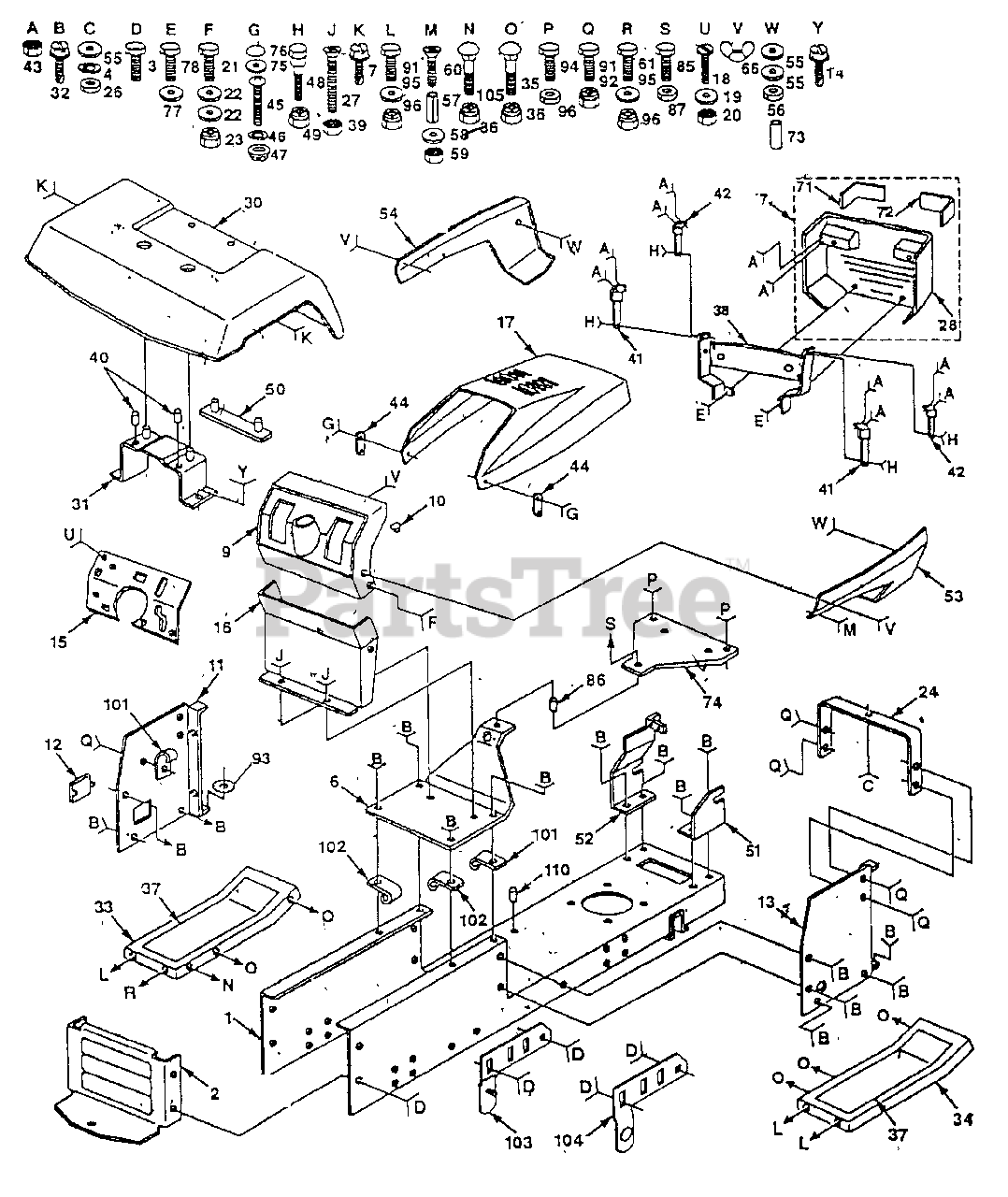

YT 180 (954000652-A) - Husqvarna Yard Tractor (1994-01) Chassis And Enclosures Parts Diagram

Yard Tractor

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532140341

Chassis Weldment 12 ga 38/42
(Superseded to 532145501)

$

$

Not available

2

Husqvarna 532140356

Drawbar Stretch
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

Screw Thdrol 3/8 - 16 x 3/4 Ty-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 532127543

Saddle Slkscr

$

$

Not available

7

Husqvarna 817490608

Screw Thdrol 3/8 - 16 x Ty-TT

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

9

Husqvarna 532140452

Dash Black Hole "a" 88

$

$

Not available

10

Husqvarna 532125085

Plug Dash Blk 5009 Dis E Lift

$

$

Not available

11

Husqvarna 532136967

Panel Pnt Dash Lh

$

$

Not available

12

Husqvarna 532121794

Cover Access Black Square

$

$

Not available

13

Husqvarna 532136970

Panel Pnt Dash Rh

$

$

Not available

14

Husqvarna 817490612

Screw Thdrol 3/8 - 16 x 3/4 Ty-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 532141626

Plate Silkscreened Dash
(Superseded to 532140130)

$

$

Not available

16

Husqvarna 532104805

Dash Pnt Lower

$

$

Not available

17

Husqvarna 532125007

Hood Pnt
(Superseded to 532125454)

$

$

Not available

18

Husqvarna 874180512

Screw Mach Trhd 5/16 - 18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 873510500

Nut Keps 5/16 - 18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874760616

Bolt Fin Hex 3/8 - 16 UNC x 1 Gr.5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 873800600

Nut Lock 3/8 - 16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124130

Support Pnt Dash

$

$

Not available

25

Husqvarna 811050400

Washer Lock Ext. Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 873220400

Nut Fin Hex 1/4 - 20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 874180512

Screw mach Trhd 5/16 - 18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532127320

Grille Asm
(Superseded to 532157236)

$

$

Not available

30

Husqvarna 532144046

Fender Pnt

$

$

Not available

31

Husqvarna 532137113

Bracket Pnt Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

32

Husqvarna 817490612

Screw Thdol 3/8 - 16 x 3/4 Ty-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 532124899

Footrest Pnt Lh

$

$

Not available

34

Husqvarna 532124914

Footrest Pnt Th
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873800600

Nut Lock 3/8 - 16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532108256

Pad Footrest

$

$

Not available

38

Husqvarna 532124574

Support Asm Grille

$

$

Not available

39

Husqvarna 873510500

Nut Keps 5/16 - 18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532105531

Nut Push Nylon

$2.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532106784

Strap Asm Pnt Hinge Rear (blk)

$

$

Not available

42

Husqvarna 532104618

Strap Asm Pnt Hinge Front

$

$

Not available

43

Husqvarna 873510400

Nut Keps Hex 1/4 - 20 UNC
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 532109808

Latch Chute Blk

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 874191008

Screw Mach Cr Pan #10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532125004

Nut Weld .327/.304 #10 - 4
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532123481

Bolt, Shoulder 1/4 - 20 UNC
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 873680400

Nut Crownlock 1/4 - 20 UNC
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532140675

Strap Asm. Fender

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532110852

Bracket Asm Fr Pvt Hinge Rh

$

$

Not available

52

Husqvarna 532110853

Bracket Asm Fr Pvt Hinge Lh

$

$

Not available

53

Husqvarna 532143364

Panel Pnt Rh Side
(Superseded to 532140676)

$

$

Not available

54

Husqvarna 532143365

Panel Pnt Lh Side
(Superseded to 532140677)

$

$

Not available

55

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga

$

$

Not available

56

Husqvarna 873220400

Nut Fin Hex 1/4 - 20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

57

Husqvarna 532007206

Spacer Split #10 x 3/4 Cad/Zin

$7.49

$

In Stock, Qty 15

0

58

Husqvarna 819070818

Washer 7/32-x 1/2 x 18 Ga

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 873731000

Nut Keps #10 - 24 Unc
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

60

Husqvarna 874981020

Screw Mach Cr Pan #10 - 24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

61

Husqvarna 874760612

Bolt Hex 3/8 - 16 x 3/4

$4.99

$

In Stock, Qty 17

0

66

Husqvarna 532123198

Nut Plastic Locking Wng 1/4 - 20
(Superseded to 532146525)

$

$

Not available

71

Husqvarna 532124250

Lens Headlight Lh Smoked
(Superseded to 532157068)

$

$

Not available

72

Husqvarna 532124251

Lens Headlight Rh Smoked
(Superseded to 532157069)

$

$

Not available

73

Husqvarna 532001260

Spacer 17/64 x 1/2 x 3/8

$

$

Not available

74

Husqvarna 532140181

Plate Pnt Sprt Battery (blk)

$

$

Not available

75

Husqvarna 532110356

Cap Snap Black

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532110357

Cap Washer Snap Nat.

$

$

Not available

77

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

78

Husqvarna 874760440

Bolt Hex Fin 1/4 - 20 Unc 2-1/2

$2.99

$

Usually ships in 3-10 days

0

85

Husqvarna 874760532

Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2

$2.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532121236

Spacer Split 59/ x 1.25 Blk/zin

$

$

Not available

87

Husqvarna 873800500

Nut Lock Hex w/Ins 5/16 - 18 Unc P

$3.99

$

Usually ships in 3-10 days

0

88

Husqvarna 874780512

Bolt Fin Hex 5/16 - 18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

89

Husqvarna 873680500

Nut Keps Hex 5/16 - 18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 874780616

Bolt Hex 3/8 - 16 x 3/4

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 873800600

Nut Lock 3/8
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

94

Husqvarna 874780620

Botl Fin Hex 3/8 - 16 Unc x 1-1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

95

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

96

Husqvarna 873800600

Nut Lock 3/8 - 16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532126471

Clip Insulator

$4.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532002751

Clip Line Fuel 13/32 Mtg Hole

$

$

Not available

103

Husqvarna 532139886

Bracket Asm Pivot Lh

$8.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532139887

Bracket Asm Pivot Rh

$8.99

$

Usually ships in 3-10 days

0

105

Husqvarna 872140608

Bolt Carriage
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

110

Husqvarna 532110436

Bushing Snap Split
(Superseded to 532009151)

$

$

Not available
