YT 180 (954000652-A) - Husqvarna Yard Tractor (1994-01) Chassis And Enclosures Parts Diagram

Yard Tractor

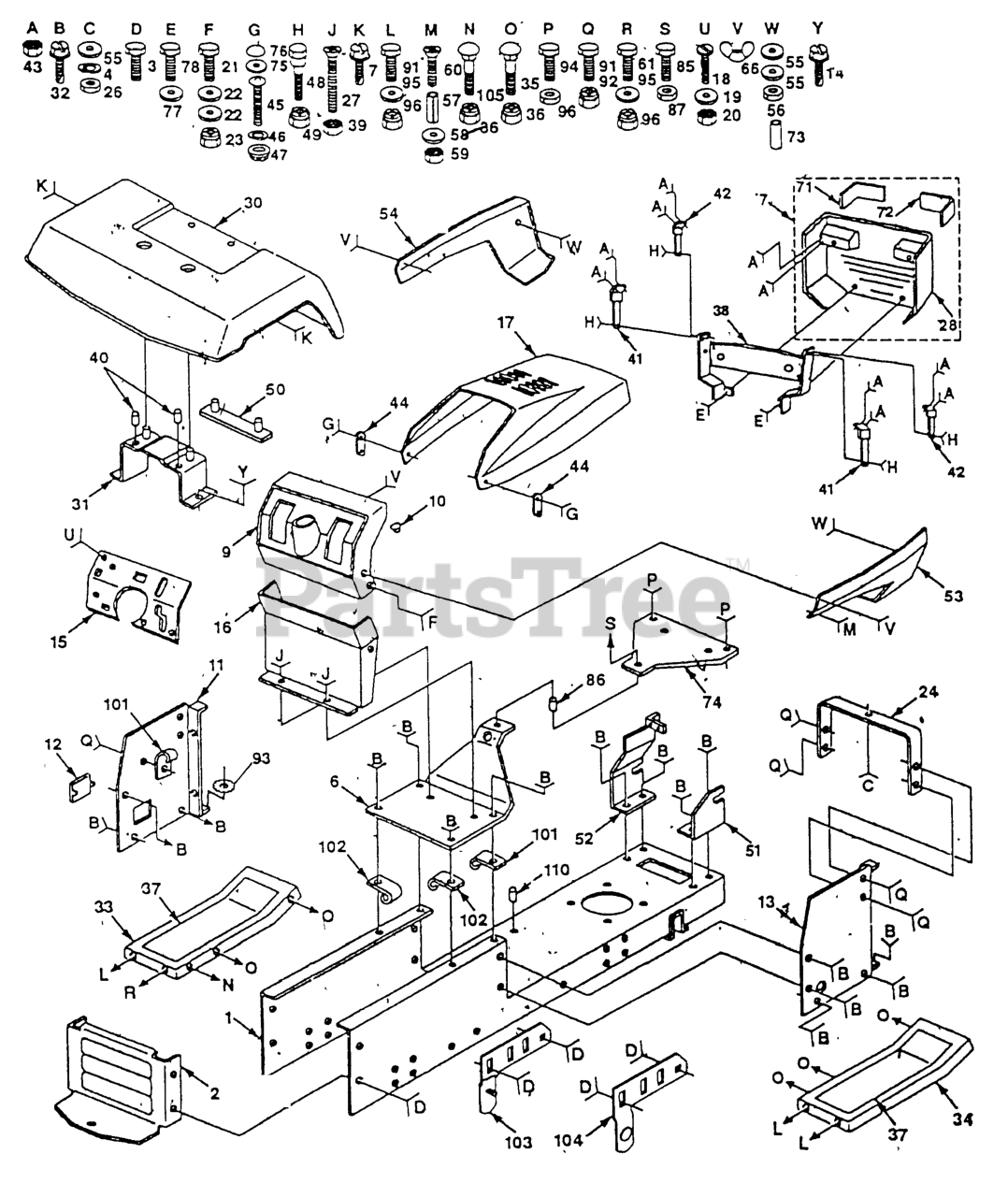

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532140341

CHASSIS
(Superseded to 532145501)

$

$

Not available

2

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532127543

SADDLE

$

$

Not available

7

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532140452

DASH

$

$

Not available

10

Husqvarna 532125085

PLUG-DASH T

$

$

Not available

11

Husqvarna 532136967

PANEL DASH LH

$

$

Not available

12

Husqvarna 532121794

COVER ACCESS

$

$

Not available

13

Husqvarna 532136970

PANEL DASH RH

$

$

Not available

14

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 532141626

DASH PLATE
(Superseded to 532140130)

$

$

Not available

16

Husqvarna 532104805

DASH LOWER YT NLA

$

$

Not available

17

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

18

Husqvarna 874180512

Screw Mach Trhd 5/16 - 18 UNC x 3/4

$

$

Not available

19

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

21

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

22

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

24

Husqvarna 532124130

SUPPORT ASS'Y

$

$

Not available

25

Husqvarna 811050400

Washer Lock Ext. Tooth 1/4
(Superseded to 810040400)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 874180512

Screw mach Trhd 5/16 - 18 UNC x 3/4

$

$

Not available

28

Husqvarna 532127320

GRILL COMPLETE
(Superseded to 532157236)

$

$

Not available

30

Husqvarna 532144046

FENDER

$

$

Not available

31

Husqvarna 532137113

FENDER BRKT
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

32

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532124899

ROLL PIN NLA

$

$

Not available

34

Husqvarna 532124914

PAD,SPACER
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

BOLT
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

37

Husqvarna 532108256

PAD FOOTREST T

$

$

Not available

38

Husqvarna 532124574

SUPPORT ASS'Y

$

$

Not available

39

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

40

Husqvarna 532105531

NUT-PUSH YT

$

$

Not available

41

Husqvarna 532106784

STRAP ASSY LT

$

$

Not available

42

Husqvarna 532104618

STRAP ASSY LT

$

$

Not available

43

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$

$

Not available

46

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 2 left!

0

47

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$

$

Not available

49

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532140675

STRAP
(Superseded to 588090401)

$6.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532110852

SUPPORT LH YTH

$

$

Not available

52

Husqvarna 532110853

SUPPORT RH YTH

$

$

Not available

53

Husqvarna 532143364

SIDE PANEL ASSY LH
(Superseded to 532140676)

$

$

Not available

54

Husqvarna 532143365

SIDE PANEL ASSY RH
(Superseded to 532140677)

$

$

Not available

55

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

56

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, only 3 left!

0

58

Husqvarna 819070818

WASHER

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$

$

Not available

60

Husqvarna 874981020

RP SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 12

0

61

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

66

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

71

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

$

$

Not available

72

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

$

$

Not available

73

Husqvarna 532001260

SPACER NLA

$

$

Not available

74

Husqvarna 532140181

PLATE, BATTERY

$

$

Not available

75

Husqvarna 532110356

SNAP CAP LT

$

$

Not available

76

Husqvarna 532110357

WASHER LT

$

$

Not available

77

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

78

Husqvarna 874760440

BOLT

$

$

Not available

85

Husqvarna 874760532

Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2

$

$

Not available

86

Husqvarna 532121236

SPACER

$

$

Not available

87

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

88

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

89

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

91

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

93

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

94

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

95

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

96

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

101

Husqvarna 532126471

CLIP,INSULATOR

$

$

Not available

102

Husqvarna 532002751

CLIP T

$

$

Not available

103

Husqvarna 532139886

BRACKET LH PIVOT

$

$

Not available

104

Husqvarna 532139887

BRACKET RH PIVOT

$

$

Not available

105

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

110

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available
