YT 1840 (2690114) - Snapper 40" Yard Tractor, 18hp 40" Mower Deck - Housing, Arbors & Blade (Serial # 1999 & Below) Parts Diagram

40" Yard Tractor, 18hp

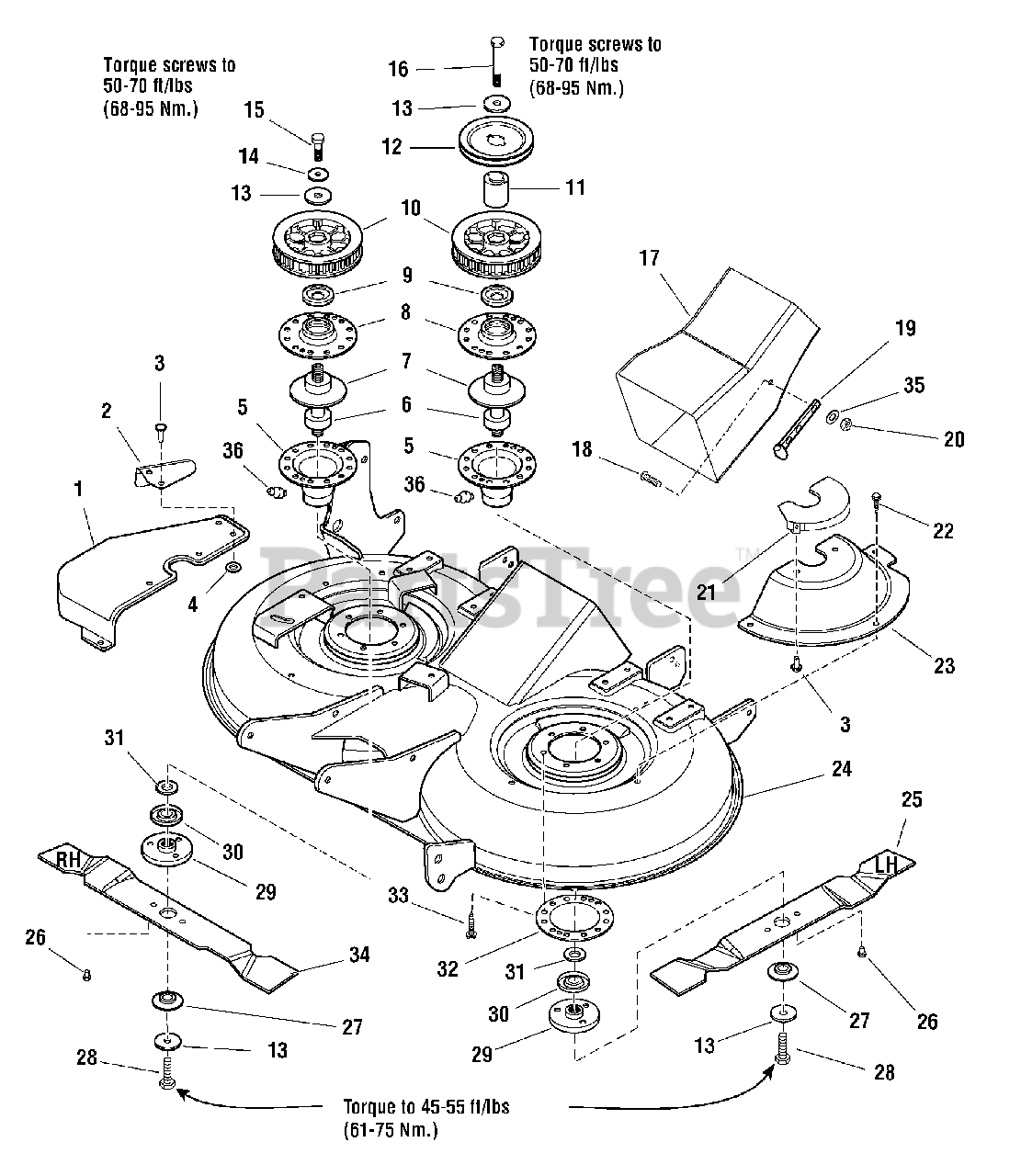

40" Mower Deck - Housing, Arbors & Blade (Serial # 1999 & Below) Parts Diagram

  • Title

1

Snapper 1724600

COVER, Arbor, RH
(Superseded to 1724600SM)

$

$

Not available

2

Snapper 1721132A

GUARD, Extension
(Superseded to 1721132ASM)

$18.99

$

Usually ships in 2-12 days

0

3

Snapper 1675044

RIVET, Pop
(Superseded to 1675044SM)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 1960096

WASHER
(Superseded to 1960096SM)

$3.99

$

In Stock, only 2 left!

0

5

Snapper 1703273A

HOUSING, Arbor, Bottom w/Lube Fitting
(Superseded to 1703273ASM)

$36.99

$

Usually ships in 2-12 days

0

6

Snapper 1722396

ARBOR & BEARING ASSEMBLY
(Superseded to 1722396SM)

$263.99

$

Usually ships in 2-12 days

0

7

Snapper 1707335

GASKET
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

8

Snapper 1655729A

HOUSING, Arbor, Top
(Superseded to 1655729ASM)

$14.99

$

In Stock, Qty 20+

0

9

Snapper 1657969AA

SHIELD, Bearing

$

$

Currently unavailable

10

Snapper 1724453

SPROCKET & FLANGE ASSEMBLY, 38 Tooth
(Superseded to 1732590SM)

$93.99

$

In Stock, only 1 left!

0

11

Snapper 1719862

HUB
(Superseded to 1719862SM)

$27.99

$

Usually ships in 2-12 days

0

12

Snapper 1713091

PULLEY, 5" OD
(Superseded to 1713091SM)

$24.99

$

In Stock, Qty 6

0

13

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.99

$

In Stock, Qty 20+

0

14

Snapper 1933263

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 12

0

15

Snapper 1930584

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR8
(Superseded to 1930584SM)

$7.99

$

Usually ships in 2-12 days

0

16

Snapper 2860644

CAPSCREW, Hex Head, 7/16-14 x 4-1/2, GR8
(Superseded to 2860644SM)

$

$

Not available

17

Snapper 1722577

TUBE CONNECTOR
(Superseded to 1722577SM)

$86.99

$

Usually ships in 2-12 days

0

18

Snapper 1923341

CAPSCREW, Hex Head Phillips, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

19

Snapper 2171600

STRAP, Black Rubber
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 1920397

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 1721258A

GUARD & BRACKET ASSEMBLY, LH
(Superseded to 1721258ASM)

$64.99

$

Usually ships in 2-12 days

0

22

Snapper 1664847

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1724601

COVER, Arbor, LH
(Superseded to 1732301SM)

$29.99

$

Usually ships in 2-12 days

0

24

Snapper 1686979

HOUSING ASSEMBLY
(Superseded to 1686979SM)

$

$

Not available

24

Snapper 1686979D

HOUSING ASSEMBLY, Red

$

$

Currently unavailable

25

Snapper 1719736A

BLADE, Mower, LH
(Superseded to 1719736ASM)

$40.99

$

In Stock, only 1 left!

0

26

Snapper 1722258

PIN, Blade
(Superseded to 1722258SM)

$8.99

$

In Stock, only 4 left!

0

27

Snapper 1722257

WASHER, Spline
(Superseded to 1722257SM)

$61.99

$

Usually ships in 2-12 days

0

28

Snapper 2927120

CAPSCREW, Hex Head, 7/16-14 x 2-1/4, GR8
(Superseded to 2827120SM)

$

$

Not available

29

Snapper 1655777

ADAPTER, Blade
(Superseded to 1655777SM)

$27.99

$

In Stock, Qty 20+

0

30

Snapper 1700229A

SHIELD, Bearing

$

$

Currently unavailable

31

Snapper 1700230

WASHER, Shim
(Superseded to 1700230SM)

$5.49

$

In Stock, Qty 20+

0

32

Snapper 1677274A

ADAPTER, Arbor
(Superseded to 1677274ASM)

$21.99

$

Usually ships in 2-12 days

0

33

Snapper 1960373

CAPSCREW, Hex Head Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, only 1 left!

0

34

Snapper 1719737A

BLADE, Mower, RH
(Superseded to 1719737BMYP)

$40.99

$

Usually ships in 2-12 days

0

35

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 1704314

FITTING, Lube
(Superseded to 1704314SM)

$5.49

$

In Stock, Qty 20+

0
