YT 1842 (960410448-01) - RedMax 42" Yard Tractor, 18hp (2019-09) CHASSIS / FRAME Parts Diagram

42" Yard Tractor, 18hp

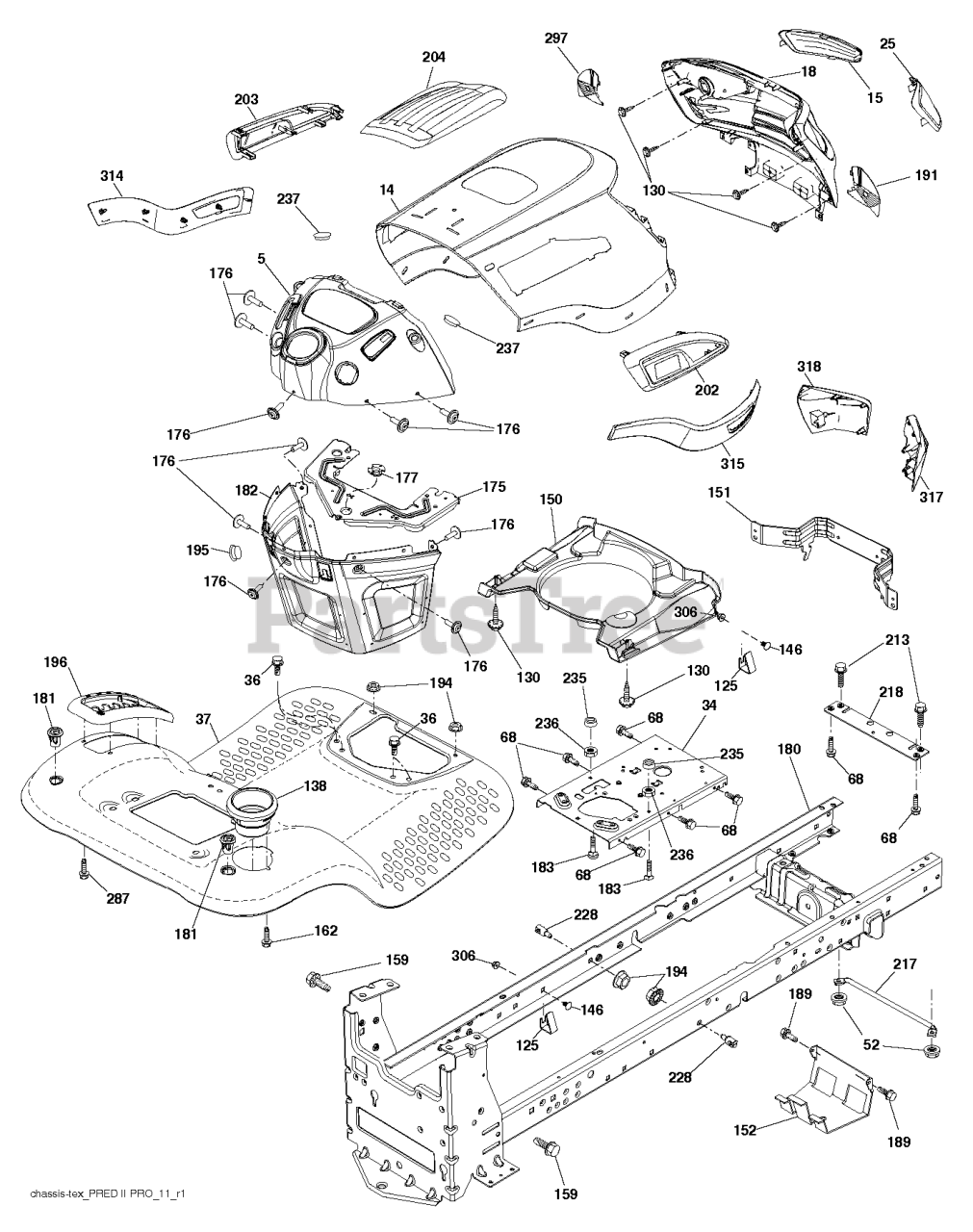

CHASSIS / FRAME Parts Diagram

  • Title

5

RedMax 532424738

DASH.YT.PRED.SQG.EL.W/C.BLK

$59.99

$

Usually ships in 3-10 days

0

14

RedMax 591144301

HOOD HOOD.GRILL.PREDII.YT/GT.Y

$56.99

$

Usually ships in 3-10 days

0

15

RedMax 587898601

LENS.LH.PRED II.YT.CLR.SVC
(Superseded to 583752001)

Note: LH

$21.99

$

Usually ships in 3-10 days

0

18

RedMax 591045001

GRILLE.SUBASM.PREDII.GT.REDMAX

$239.99

$

Usually ships in 3-10 days

0

25

RedMax 587898401

LENS.RH.PRED II.YT.CLR.SVC
(Superseded to 583752101)

Note: RH

$21.99

$

Usually ships in 3-10 days

0

34

RedMax 580910801

PLATE.ENGINE.WELDED.CHASSIS

$77.99

$

Usually ships in 3-10 days

0

36

RedMax 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

37

RedMax 585885901

FENDER.TLT.PDLCONTROL.WCUPX672

$341.99

$

Usually ships in 3-10 days

0

52

RedMax 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

68

RedMax 596030701

Screws

$3.99

$

In Stock, Qty 7

0

125

RedMax 581684801

CLIP.FUEL.LINE

$3.49

$

Usually ships in 3-10 days

0

130

RedMax 596321701

Screws

$3.99

$

In Stock, Qty 9

0

138

RedMax 532409730

CUPHOLDER.TL.TEX.BLACK

$8.49

$

Usually ships in 3-10 days

0

146

RedMax 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$3.99

$

Usually ships in 3-10 days

0

150

RedMax 584862901

PREDATOR.YT.GT.HOOD.AIR DUCT

$

$

Not available

151

RedMax 532445494

BRACKET.PIVOT.PREDATOR

$37.99

$

Usually ships in 3-10 days

0

152

RedMax 532199535

SHIELD.BROWNING.W/TEX
(Superseded to 531169901)

$29.99

$

In Stock, Qty 7

0

159

RedMax 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

162

RedMax 596134101

Screws

$3.99

$

In Stock, Qty 14

0

175

RedMax 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$41.99

$

Usually ships in 3-10 days

0

176

RedMax 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

In Stock, only 2 left!

0

177

RedMax 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

180

RedMax 532195457

CHASSIS
(Superseded to 579841501)

$

$

Not available

181

RedMax 532404796

BUSHING.MNT.FEND.CRGO.
(Superseded to 532403025)

$5.99

$

Usually ships in 3-10 days

0

182

RedMax 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$131.99

$

In Stock, only 2 left!

0

183

RedMax 595305701

Screws

$4.99

$

In Stock, only 1 left!

0

189

RedMax 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

191

RedMax 532425407

INSERT INSERT.REFLECTIVE.RH
(Superseded to 583419801)

$

$

Not available

194

RedMax 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

195

RedMax 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$3.99

$

Usually ships in 3-10 days

0

196

RedMax 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$33.99

$

In Stock, Qty 8

0

202

RedMax 591045401

VENT SIDE. HOOD. PREDATOR II.

Note: RH

$14.99

$

Usually ships in 3-10 days

0

203

RedMax 591045402

VENT SIDE. HOOD. PREDATOR II.

Note: LH

$14.99

$

Usually ships in 3-10 days

0

204

RedMax 587963201

VENT ASM.TOP.PRED GT PRO.428
(Superseded to 583751801)

$13.99

$

In Stock, only 2 left!

0

213

RedMax 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

217

RedMax 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

218

RedMax 532196395

X-PIECE.HOOD.STOP.NON/

$8.49

$

In Stock, only 2 left!

0

228

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

RedMax 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

236

RedMax 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

237

RedMax 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

RedMax 817600406

SCREW 1/4X20

$3.99

$

Usually ships in 3-10 days

0

297

RedMax 532425406

INSERT INSERT.REFLECTIVE.LH
(Superseded to 583419701)

$3.99

$

Usually ships in 3-10 days

0

306

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

314

RedMax 598603802

Trim

$71.99

$

Usually ships in 3-10 days

0

315

RedMax 598603801

Trim

$71.99

$

Usually ships in 3-10 days

0

317

RedMax 591042301

BUMPER CORNER. PREDATOR II. GT

$83.99

$

Usually ships in 3-10 days

0

318

RedMax 591043601

BUMPER CORNER. PREDATOR II. GT

$83.99

$

Usually ships in 3-10 days

0
