YT 1842 (960410448-01) - RedMax 42" Yard Tractor, 18hp (2019-09) ENGINE Parts Diagram

42" Yard Tractor, 18hp

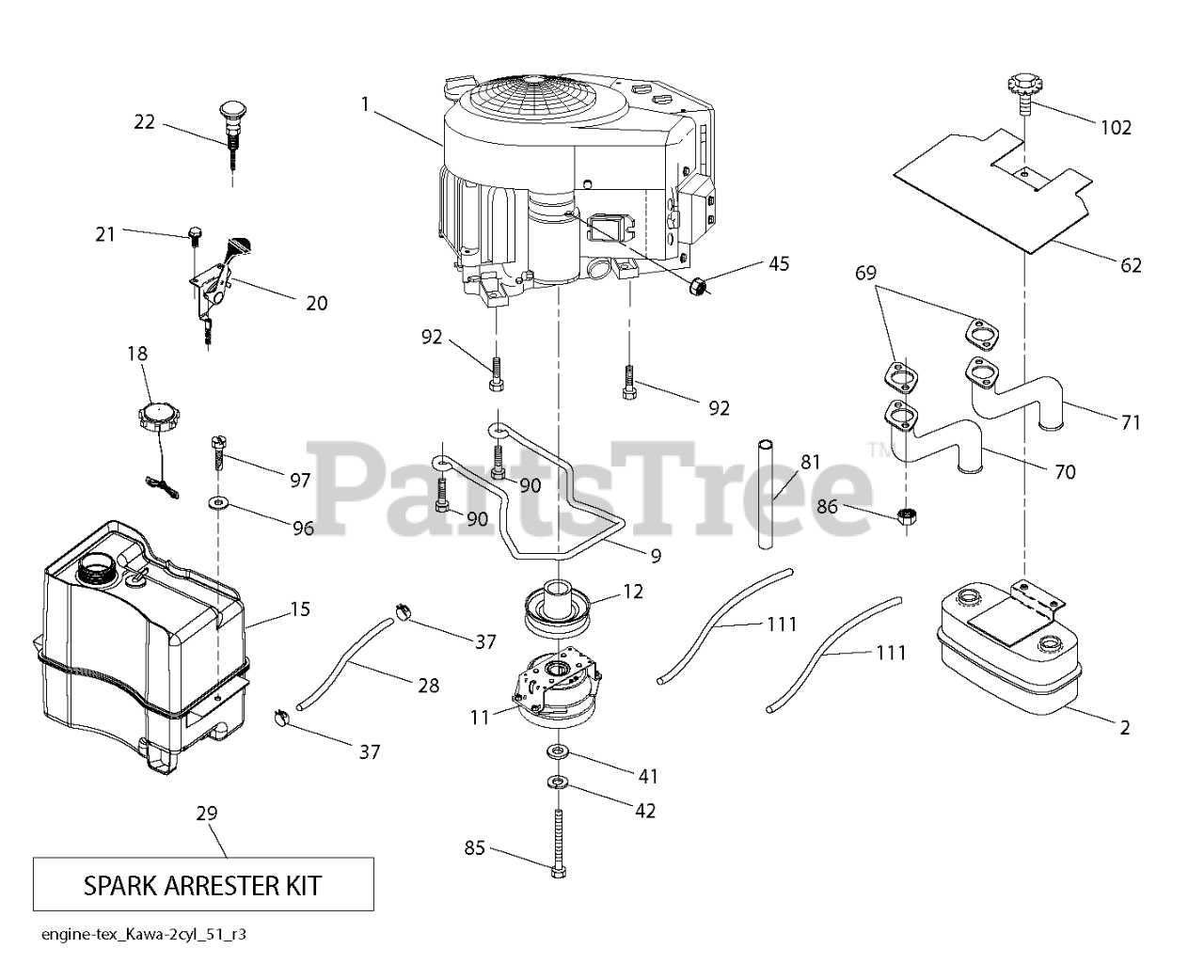

ENGINE Parts Diagram

  • Title

1

RedMax 000000000

Note: ENGINE KAWASAKI MODEL FR600V- (581477001)

$

$

Not available

2

RedMax 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$56.99

$

In Stock, only 1 left!

0

9

RedMax 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

11

RedMax 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

$250.99

$

Usually ships in 3-10 days

0

12

RedMax 532405097

PULLEY.ENGINE.TUFFTORQ

$62.99

$

In Stock, only 2 left!

0

15

RedMax 532433006

Tanks
(Superseded to 597954502)

$

$

Not available

18

RedMax 587382901

FUEL.CAP.ASM.2.25TETHRED.RATCH

$20.99

$

In Stock, only 1 left!

0

20

RedMax 532412165

CONTROL.THROTTLE.COBRA.BLACK

$34.99

$

In Stock, only 1 left!

0

21

RedMax 596321701

Screws

$3.49

$

In Stock, Qty 15

0

22

RedMax 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0

28

RedMax 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

29

RedMax 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

37

RedMax 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

RedMax 532126197

WASHER

$7.99

$

In Stock, only 4 left!

0

42

RedMax 596238901

Washers

$3.49

$

In Stock, Qty 19

0

45

RedMax 596133601

Hardware

$3.49

$

Usually ships in 3-10 days

0

62

RedMax 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

RedMax 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

RedMax 583955701

TUBE.EXHAUST.RH.FR961/FR730

$31.99

$

In Stock, only 1 left!

0

71

RedMax 583955601

TUBE.EXHAUST.LH.FR961/FR730

$31.99

$

Usually ships in 3-10 days

0

81

RedMax 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

85

RedMax 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.99

$

In Stock, Qty 8

0

86

RedMax 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

90

RedMax 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

92

RedMax 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 11

0

96

RedMax 596135301

Washers

$3.49

$

In Stock, Qty 6

0

97

RedMax 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

102

RedMax 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 17

0

111

RedMax 596941501

NEEDS DESCRIPTION
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0
