YT 1844 (2690108) - Snapper 44" Yard Tractor, 18hp HEIGHT ADJ & ROLLER GRP-44" Parts Diagram

44" Yard Tractor, 18hp

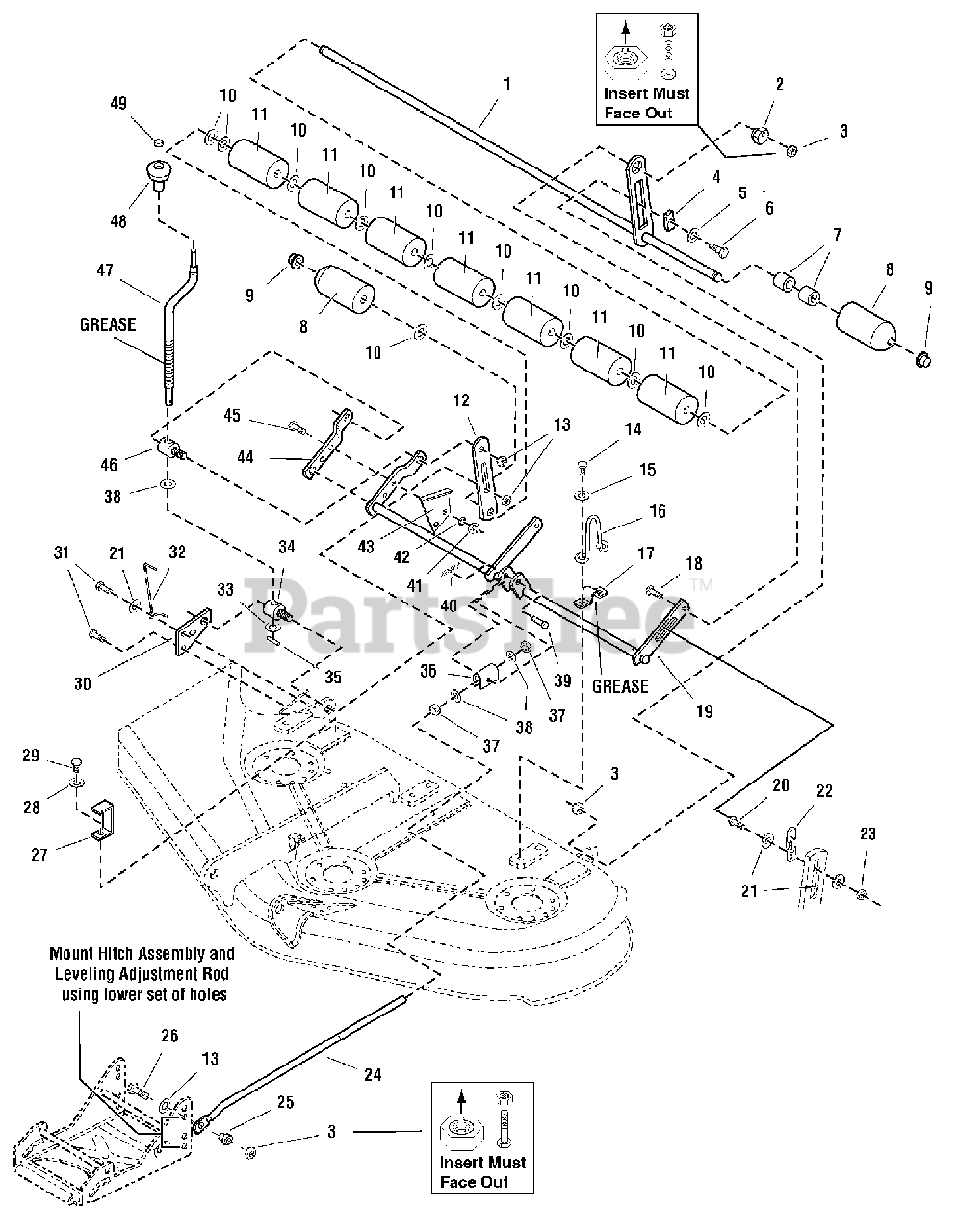

HEIGHT ADJ & ROLLER GRP-44" Parts Diagram

  • Title

1

Snapper 1685443

SHAFT ASSEMBLY, Roller, 44", (Includes Ref. Nos. 7 & 9)
(Superseded to 1685443SM)

$137.99

$

In Stock, only 1 left!

0

2

Snapper 1704082

NUT, Adjuster
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 11

0

3

Snapper 7960641

NUT, Hex Aluminum Insert Lock, 3/8-16

$

$

Currently unavailable

4

Snapper 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, Qty 20+

0

5

Snapper 7091587

WASHER, Plain, 1/2
(Superseded to 704123)

Note: Was 1924361

$4.49

$

In Stock, Qty 15

0

6

Snapper 2172622

BOLT, Shoulder, 3/8-16
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

7

Snapper 1602946

SPACER, 25/64 x 13/16 x 13/16, Steel, Black
(Superseded to 1602946SM)

$13.99

$

In Stock, only 3 left!

0

8

Snapper 1722036

ROLLER, Rounded, 2-1/2 Long
(Superseded to 1722036SM)

$7.99

$

In Stock, only 4 left!

0

9

Snapper 1960520

NUT, Push
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 1924366

WASHER, Plain, 1-1/4
(Superseded to 703580)

$4.49

$

In Stock, Qty 12

0

11

Snapper 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

12

Snapper 1704074A

BAR, Roller
(Superseded to 1704074ASM)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 1930644

NUT, Hex, Flange, Lock, 1/2-13
(Superseded to 1930644SM)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091541

CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4
(Superseded to 703228)

Note: Was 1664847

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7090122

WASHER, 3/8
(Superseded to 703878)

Note: Was 1924940

$3.99

$

In Stock, Qty 20+

0

16

Snapper 1722747

UP-STOP, 6-1/4 High, Black
(Superseded to 1722747SM)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper 1665374A

STRAP, Mower Arm Assembly
(Superseded to 1665374SM)

$7.99

$

In Stock, Qty 6

0

18

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

19

Snapper 1723407A

ARM ASSEMBLY, Mower
(Superseded to 1723407ASM)

$119.99

$

Usually ships in 2-12 days

0

20

Snapper 1930570

CAPSCREW, Hex Head, 5/16-18 x 1 1/2, Black
(Superseded to 1930570SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 1919381

WASHER, 5/16, Black
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 11

0

22

Snapper 1707514A

CHAIN, 3 Link, 4-1/2 Long
(Superseded to 1707514ASM)

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 10

0

24

Snapper 1704093

ROD, Adjustment
(Superseded to 1704093SM)

$47.99

$

Usually ships in 2-12 days

0

25

Snapper 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

Usually ships in 2-12 days

0

26

Snapper 7091553

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

Note: Was 1922606

$4.99

$

In Stock, Qty 13

0

27

Snapper 1722748A

BRACKET, Up-Stop, 6" Long
(Superseded to 1722748ASM)

$19.99

$

Usually ships in 2-12 days

0

28

Snapper 1960020

WASHER, 5/8
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 1960373

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 1704080A

PLATE, Mower Support
(Superseded to 1704080ASM)

$8.49

$

In Stock, only 2 left!

0

31

Snapper 1931202

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 12

0

32

Snapper 1704114

INDICATOR, Cutting Height
(Superseded to 1704114SM)

$16.99

$

In Stock, only 1 left!

0

33

Snapper 1704097

WASHER, Detent
(Superseded to 1704097SM)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 1704086

TRUNNION
(Superseded to 1704086SM)

$31.99

$

In Stock, only 1 left!

0

35

Snapper 2916001

PIN, Roll, 1
(Superseded to 2816001SM)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 1704081A

TRUNNION
(Superseded to 1704081ASM)

$7.99

$

Usually ships in 2-12 days

0

37

Snapper 1913744

NUT, Hex, Jam, 1/2-13
(Superseded to 1913744SM)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7090705

WASHER, 33/64
(Superseded to 703853)

Note: Was 1960170

$4.99

$

In Stock, Qty 20+

0

39

Snapper 2118053

PIN, Clevis
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

40

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

41

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

42

Snapper 1917356

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 1704116A

BRACKET, Cutting Height
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

44

Snapper 1704083A

ARM, Rear, Mower, RH
(Superseded to 1704083ASM)

$13.99

$

In Stock, only 1 left!

0

45

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

46

Snapper 1704087

TRUNNION, Threaded
(Superseded to 1704087SM)

$109.99

$

Usually ships in 2-12 days

0

47

Snapper 1719901

CRANK, Cutting Height
(Superseded to 1719901SM)

$48.99

$

In Stock, Qty 6

0

48

Snapper 1714084

KNOB, Height Crank
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

49

Snapper 1960093

PAL NUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 8

0
