YT 1846 (960430235-00) - RedMax 46" Yard Tractor, 18hp (2017-05) ELECTRICAL Parts Diagram

46" Yard Tractor, 18hp

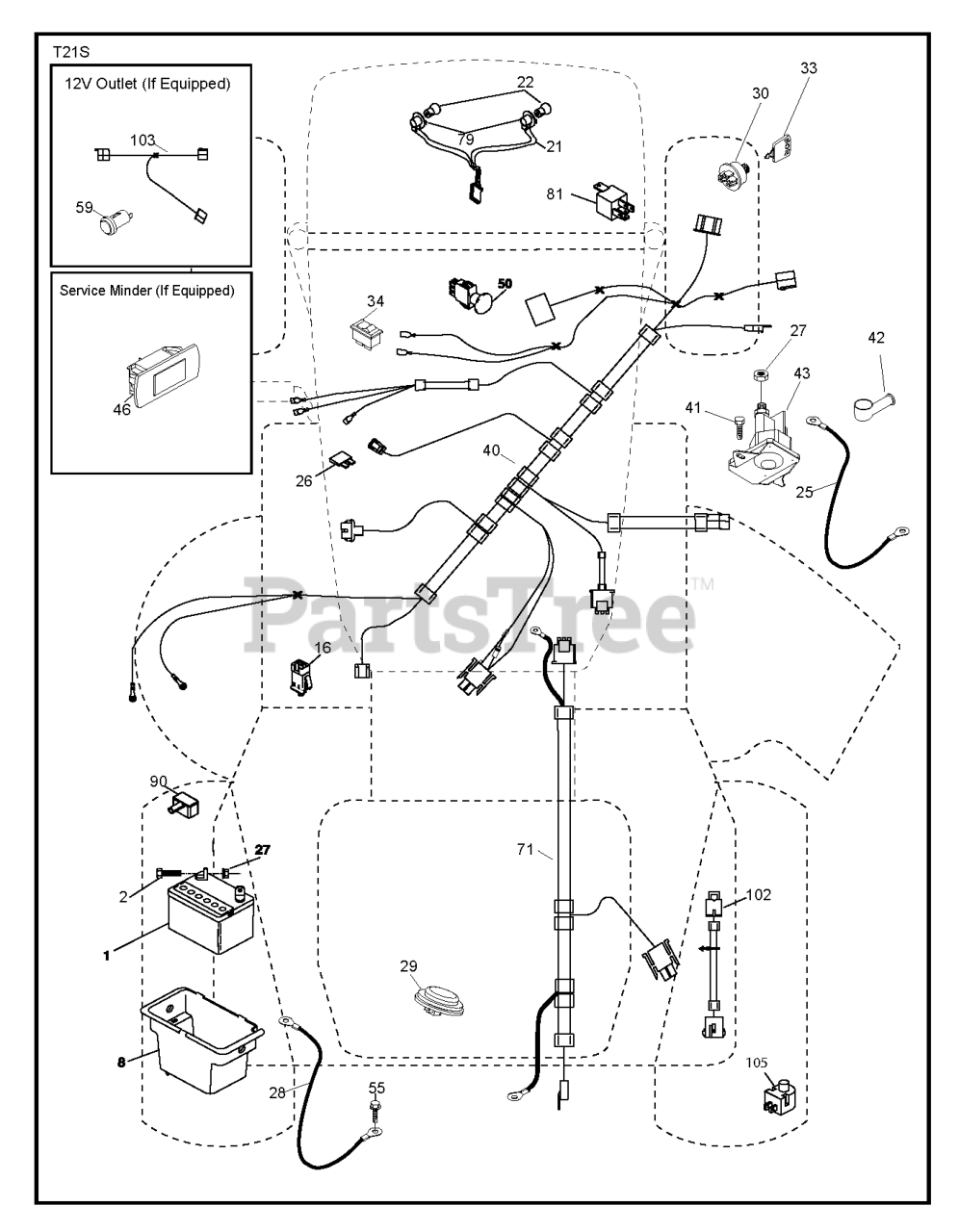

ELECTRICAL Parts Diagram

  • Title

1

RedMax 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

RedMax 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

8

RedMax 532193228

BOX.BATTERY.MNT.REAR.L

$18.99

$

In Stock, only 4 left!

0

16

RedMax 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

21

RedMax 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

In Stock, Qty 5

0

22

RedMax 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

RedMax 585555501

CABLE.STARTER.8GA.17.5

$8.99

$

In Stock, Qty 8

0

26

RedMax 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 12

0

27

RedMax 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

RedMax 532421686

CABLE.GROUND.REAR.BATTERY.8G

$15.99

$

Usually ships in 3-10 days

0

29

RedMax 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 17

0

30

RedMax 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

33

RedMax 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

34

RedMax 532110712

SWITCH LT

$8.99

$

In Stock, Qty 11

0

40

RedMax 501133201

HARNESS.IGN.ELEC.RELAY.TEX.46

$121.99

$

Usually ships in 3-10 days

0

41

RedMax 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

RedMax 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

RedMax 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

46

RedMax 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 20+

0

50

RedMax 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$13.99

$

In Stock, Qty 20+

0

55

RedMax 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

RedMax 581344901

HARNESS.CHASS.8AWG.REAR.BATTER

$

$

Not available

79

RedMax 532175242

BULB HOLDER ASM.

$18.99

$

In Stock, only 2 left!

0

81

RedMax 532409615

RELAY HARNESS.SEALED

$34.99

$

Usually ships in 3-10 days

0

90

RedMax 532435395

COVER.TERMINAL.BATTERY

$6.49

$

Usually ships in 3-10 days

0

102

RedMax 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

RedMax 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 1 left!

0
