YT 1846 (960430235-00) - RedMax 46" Yard Tractor, 18hp (2017-05) MOWER DECK / CUTTING DECK Parts Diagram

46" Yard Tractor, 18hp

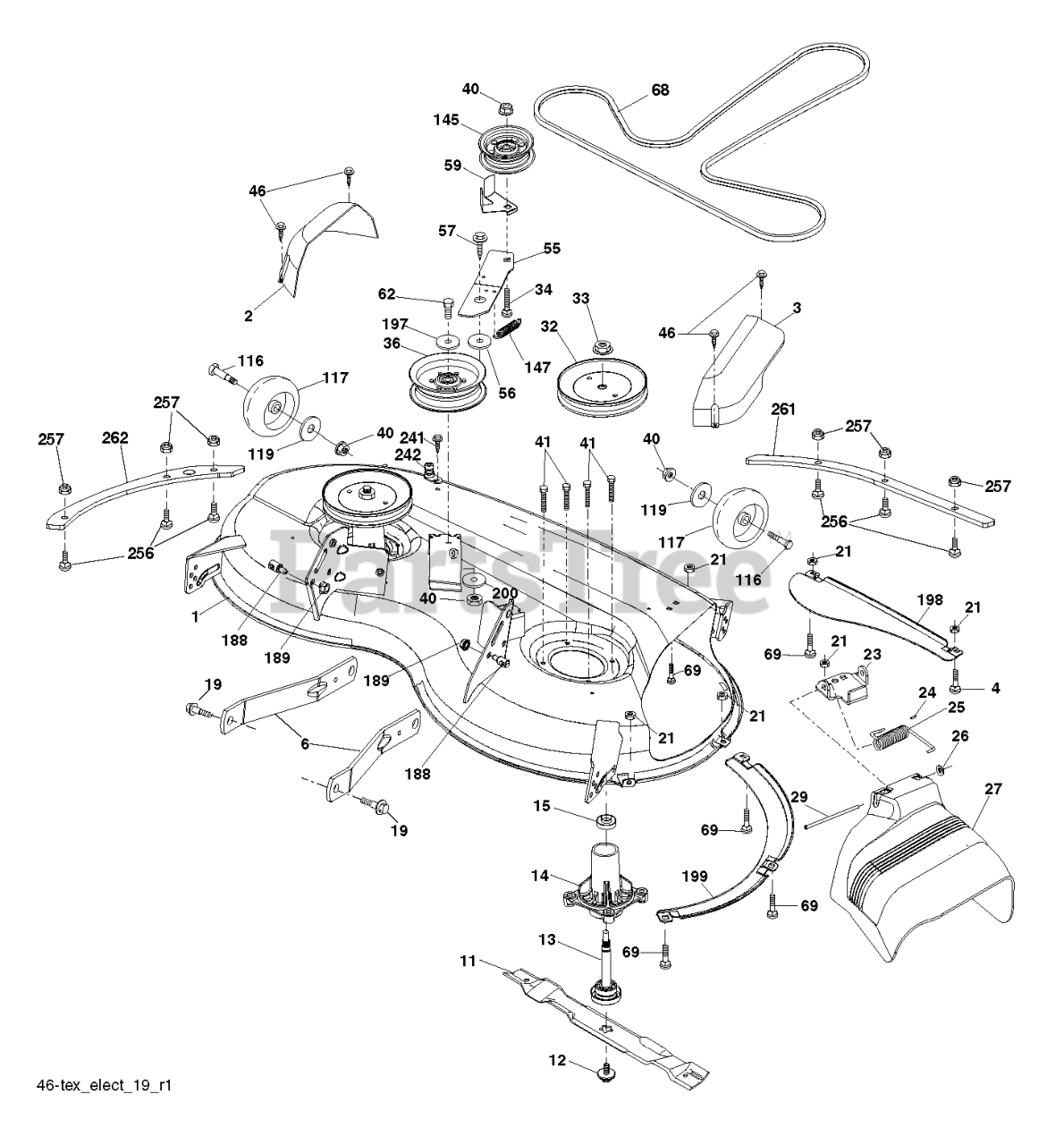

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

--

RedMax 591111701

DECK ASM.SVC.46B"HP.E.5GW.WP.

Note: NOT SHOWN

$909.99

$

Usually ships in 3-10 days

0

1

RedMax 589535320

KIT.SVC.DECL.WLD.46"417585X428

$

$

Not available

2

RedMax 532405507

COVER.MANDREL.LH.46"

Note: RH

$47.99

$

In Stock, Qty 8

0

3

RedMax 532405506

COVER.MANDREL.RH.46"

Note: LH

$47.99

$

In Stock, Qty 11

0

4

RedMax 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

6

RedMax 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

11

RedMax 532405380

BLADE.MOWER.46".HI.LIFT

$20.99

$

Usually ships in 3-10 days

0

12

RedMax 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587253301)

$47.99

$

In Stock, Qty 20+

0

14

RedMax 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

RedMax 585323901

BEARING.MANDREL.TOP.EXTENDED

$12.99

$

In Stock, Qty 20+

0

19

RedMax 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

RedMax 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

RedMax 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

RedMax 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

RedMax 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

RedMax 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

RedMax 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 10

0

29

RedMax 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

32

RedMax 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$10.99

$

In Stock, Qty 20+

0

33

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

RedMax 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

40

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

46

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

RedMax 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 532199092

SPACER.RETAINER

$6.49

$

In Stock, only 2 left!

0

57

RedMax 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

59

RedMax 532141043

GUARD, BELT

Note: 94

$

$

Not available

62

RedMax 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, Qty 20+

0

68

RedMax 532405143

V-BELT
(Superseded to 584453101)

$42.99

$

In Stock, Qty 20+

0

69

RedMax 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

RedMax 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

RedMax 589527301

WHEEL.GAUGE.RALLY

$4.99

$

In Stock, Qty 20+

0

119

RedMax 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

145

RedMax 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

147

RedMax 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 13

0

188

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

197

RedMax 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

198

RedMax 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

199

RedMax 532403150

BAFFLE FRONT RH

Note: RH

$11.99

$

Usually ships in 3-10 days

0

200

RedMax 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

241

RedMax 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 19

0

242

RedMax 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

256

RedMax 539109800

RHSNB, 1/4-20 X 1, GR5

$4.99

$

Usually ships in 3-10 days

0

257

RedMax 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

261

RedMax 589481805

PLATE.REINF.DECK.46".FRONT.BLK

$10.99

$

In Stock, Qty 11

0

262

RedMax 589482005

PLATE.REINF.DECK.46".SIDE.BLK

$9.49

$

In Stock, only 1 left!

0

RedMax 532416405

COUPLING.QUICK CONNECT

Note: NOT SHOWN

$8.99

$

In Stock, Qty 20+

0

RedMax 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes Housing (Key # 14), Shaft Assembly (Key # 13) and Bearing Only (Key # 15) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included)

$47.99

$

In Stock, Qty 20+

0
