YT 1942 T (960430003-00) - Husqvarna 42" Yard Tractor (2006-05) Chassis Parts Diagram

42" Yard Tractor

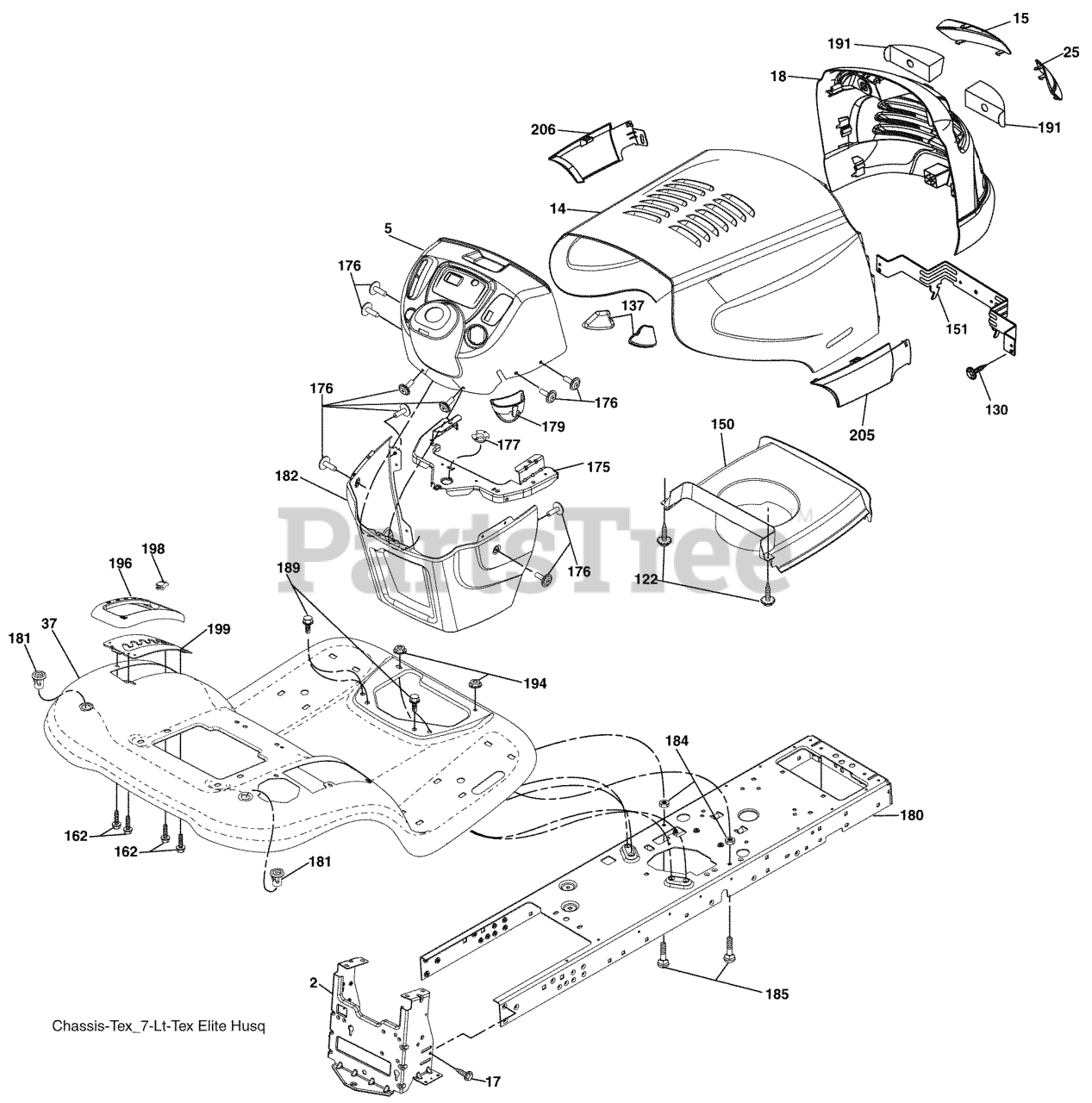

Chassis Parts Diagram

  • Title

2

Husqvarna 532194263

DRAWBAR.1PC.NSTL

$68.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532402950

DASH.TEX.ELITE.CC.N/A.

$

$

Not available

14

Husqvarna 532189977

HOOD
(Superseded to 532188374)

$262.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532189982

LENS ELITE CLEAR LH
(Superseded to 532188264)

$17.99

$

In Stock, only 2 left!

0

17

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 532188269

GRILL/LENS ASSY ( YT MODEL)

$

$

Not available

25

Husqvarna 532189981

LENS ELITE CLEAR RH
(Superseded to 532188263)

$

$

Not available

37

Husqvarna 532402953

FENDER.REAR.ORANGE
(Superseded to 532441266)

$319.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532192512

SCREW.WSHD.HEX10-32X5/8

$7.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

137

Husqvarna 532184921

BUMPER.HOOD.LARGE.1.75"

$5.99

$

In Stock, Qty 9

0

138

Husqvarna 532402954

CUPHOLDER.TL.TEX.418
(Superseded to 532439747)

$5.99

$

In Stock, only 1 left!

0

150

Husqvarna 532198513

AIR.DUCT.TEXGT.HUSQ.SV

$62.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532174714

BRACKET PIVOT LASER
(Superseded to 532407807)

$34.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 17

0

175

Husqvarna 532193243

CROSSMEMBER.LT

$14.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532193232

RP SCREW.10-24X5/8.WSHD
(Superseded to 532400776)

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

BUSHING, STEERING

$2.49

$

In Stock, Qty 20+

0

179

Husqvarna 532400796

PLUG.CRUISE/HOOK/PHON.

$

$

Not available

180

Husqvarna 532194260

CHASSIS.STAMPING.LT/GT
(Superseded to 582033101)

$341.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

BUSHING.MNT.FEND.CRGO.
(Superseded to 532439746)

$

$

Not available

182

Husqvarna 532193057

DASH.LOWER.LT.CCS

$113.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532195780

SPACER.FENDER

$

$

Not available

185

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$5.99

$

In Stock, only 3 left!

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

191

Husqvarna 532188267

INSERT LENS

$

$

Not available

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Husqvarna 532402843

CONSOLE.ASM.DECK.LIFT.
(Superseded to 532414579)

$28.99

$

In Stock, Qty 7

0

197

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

198

Husqvarna 532402955

Indicator Deck Lift

$

$

Currently unavailable

199

Husqvarna 532196376

PLATE.DECK.LIFT.TLT.ER

$

$

Not available

205

Husqvarna 532189978

SKIRT SIDE RH
(Superseded to 532188265)

$

$

Not available

206

Husqvarna 532189979

SKIRT SIDE LH
(Superseded to 532188266)

$

$

Not available
