YT 1942 T (960430003-00) - Husqvarna 42" Yard Tractor (2006-05) Engine Parts Diagram

42" Yard Tractor

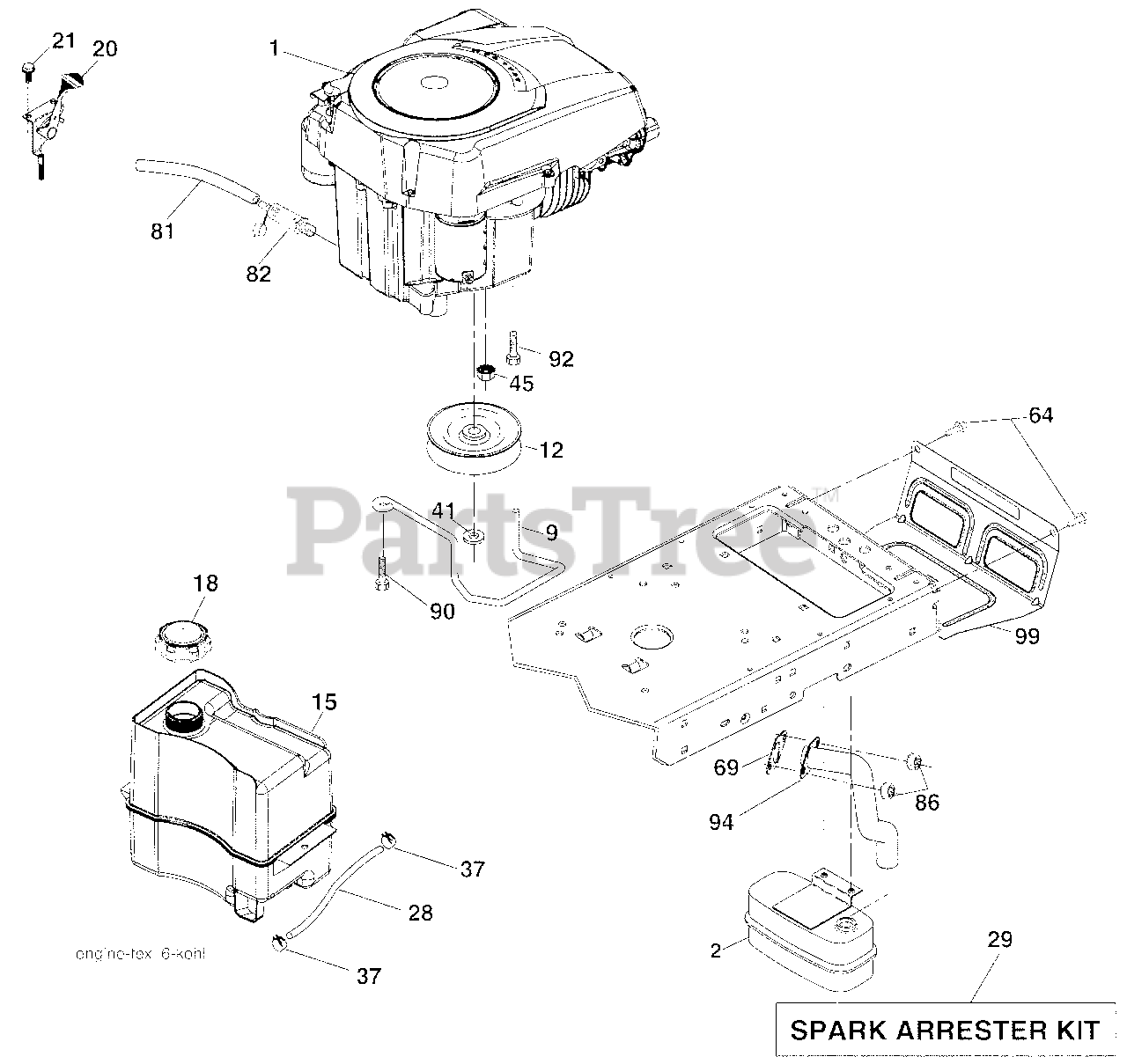

Engine Parts Diagram

  • Title

1

Engine Kohler Model No. SV590

$

$

Not available

2

Husqvarna 532188655

Muffler

$51.99

$

In Stock, Qty 10

0

9

Husqvarna 532194319

Keeper Belt Engine

$13.99

$

In Stock, Qty 5

0

12

Husqvarna 532194332

Pulley Engine
(Superseded to 586729001)

$40.99

$

In Stock, Qty 7

0

15

Husqvarna 532194266

Tank Fuel 4.0
(Superseded to 532404470)

$

$

Not available

18

Husqvarna 532197725

Cap Asm
(Superseded to 581075501)

$26.99

$

In Stock, Qty 15

0

20

Husqvarna 532401508

Control Throttle

$34.99

$

In Stock, only 3 left!

0

21

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

28

Husqvarna 532401137

Fuel Line
(Superseded to 587044822)

$13.99

$

In Stock, Qty 5

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 Gr. 5
(Superseded to 501606501)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

64

Husqvarna 817000612

Screw Hexwsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

69

Gasket

Note: (Order From Eng. Mfgr.)

$

$

Not available

81

Husqvarna 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, Qty 17

0

82

Husqvarna 181654

Plug Drain Oil

$47.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

In Stock, Qty 14

0

92

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 20+

0

94

Husqvarna 532188654

Tube Exhaust
(Superseded to 583955301)

$34.99

$

In Stock, Qty 7

0

99

Husqvarna 532194329

Shield Browning/Debris

$22.99

$

Usually ships in 3-10 days

0
