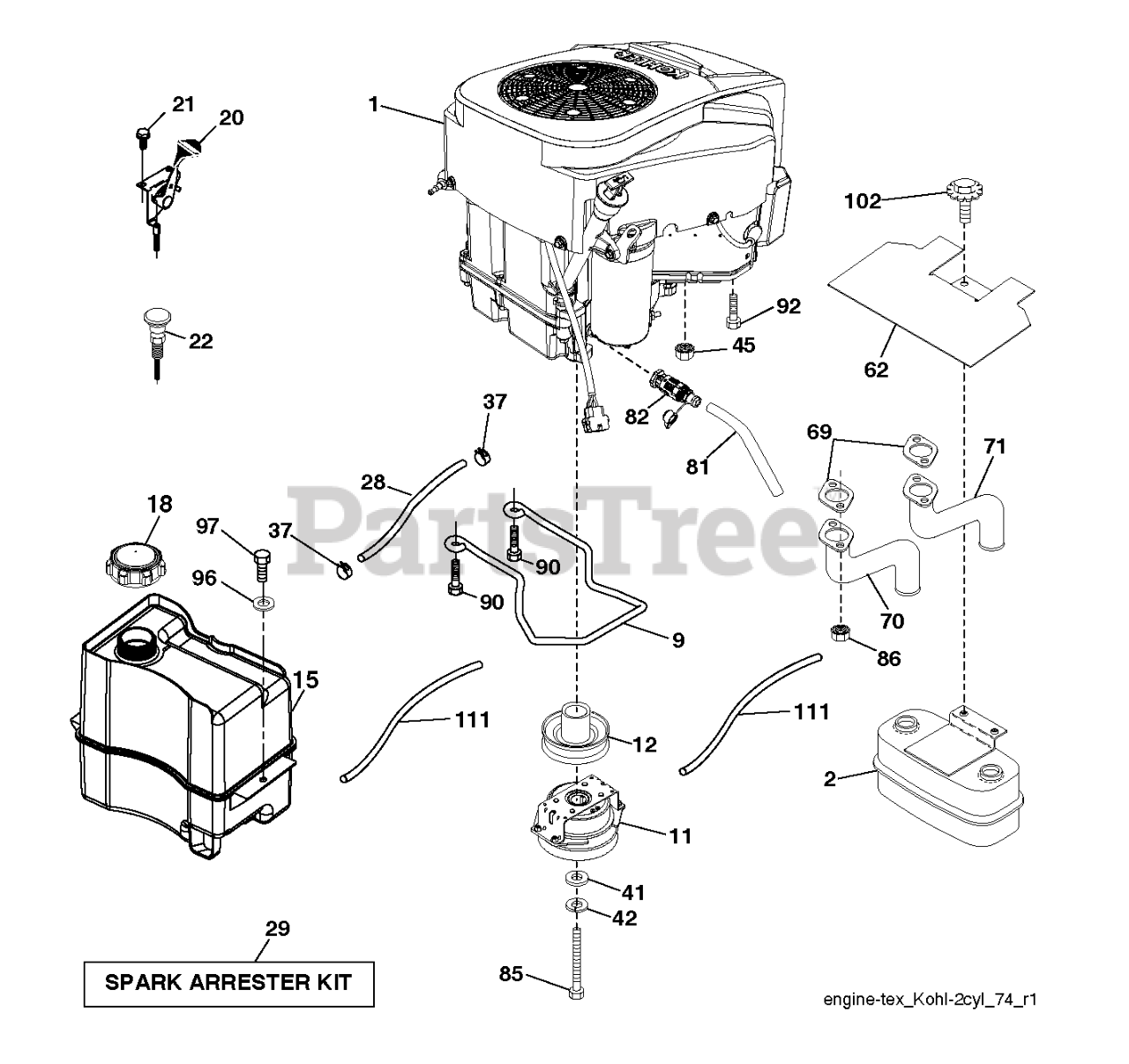

YT 2246 (960430291-00) - RedMax 46" Yard Tractor, 22hp (2018-10) ENGINE Parts Diagram

46" Yard Tractor, 22hp

ENGINE Parts Diagram

  • Title

1

RedMax 000000000

Note: ENGINE KOHLER MODEL NO. KT725-3014 (5854529010)

$

$

Not available

2

RedMax 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 12

0

9

RedMax 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

11

RedMax 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$299.99

$

In Stock, only 4 left!

0

12

RedMax 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

In Stock, only 1 left!

0

15

RedMax 532433006

Tanks
(Superseded to 597954502)

$125.99

$

Usually ships in 3-10 days

0

18

RedMax 532438596

CAP.2.25'.VENTED.TETHER .EPA
(Superseded to 581075501)

$27.99

$

In Stock, only 2 left!

0

20

RedMax 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$33.99

$

Usually ships in 3-10 days

0

21

RedMax 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, only 3 left!

0

22

RedMax 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, only 2 left!

0

28

RedMax 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$17.99

$

In Stock, only 2 left!

0

29

RedMax 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

RedMax 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 7

0

41

RedMax 532126197

WASHER

$8.49

$

In Stock, Qty 20+

0

42

RedMax 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 3 left!

0

45

RedMax 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 12

0

62

RedMax 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

RedMax 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$7.49

$

Usually ships in 3-10 days

0

70

RedMax 583954501

PIPE.EXHAUST.LH.CV18/20

$27.99

$

In Stock, Qty 7

0

71

RedMax 583954801

PIPE.EXHAUST.RH.CV18/20
(Superseded to 532146700)

$23.99

$

In Stock, only 3 left!

0

81

RedMax 532148456

TUBE, DRAIN OIL ASM.

$7.49

$

In Stock, Qty 9

0

82

RedMax 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 18

0

85

RedMax 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$3.99

$

In Stock, Qty 5

0

86

RedMax 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, only 4 left!

0

90

RedMax 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 13

0

92

RedMax 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, only 2 left!

0

96

RedMax 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

RedMax 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 1 left!

0

102

RedMax 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

111

RedMax 532414119

RP PURGE LINE
(Superseded to 587044580)

$20.99

$

Usually ships in 3-10 days
