YT 2250 (1694627) - Snapper YT400 Series 50" Yard Tractor, 22hp 50" Mower Deck - Height Adjust Group Parts Diagram

YT400 Series 50" Yard Tractor, 22hp

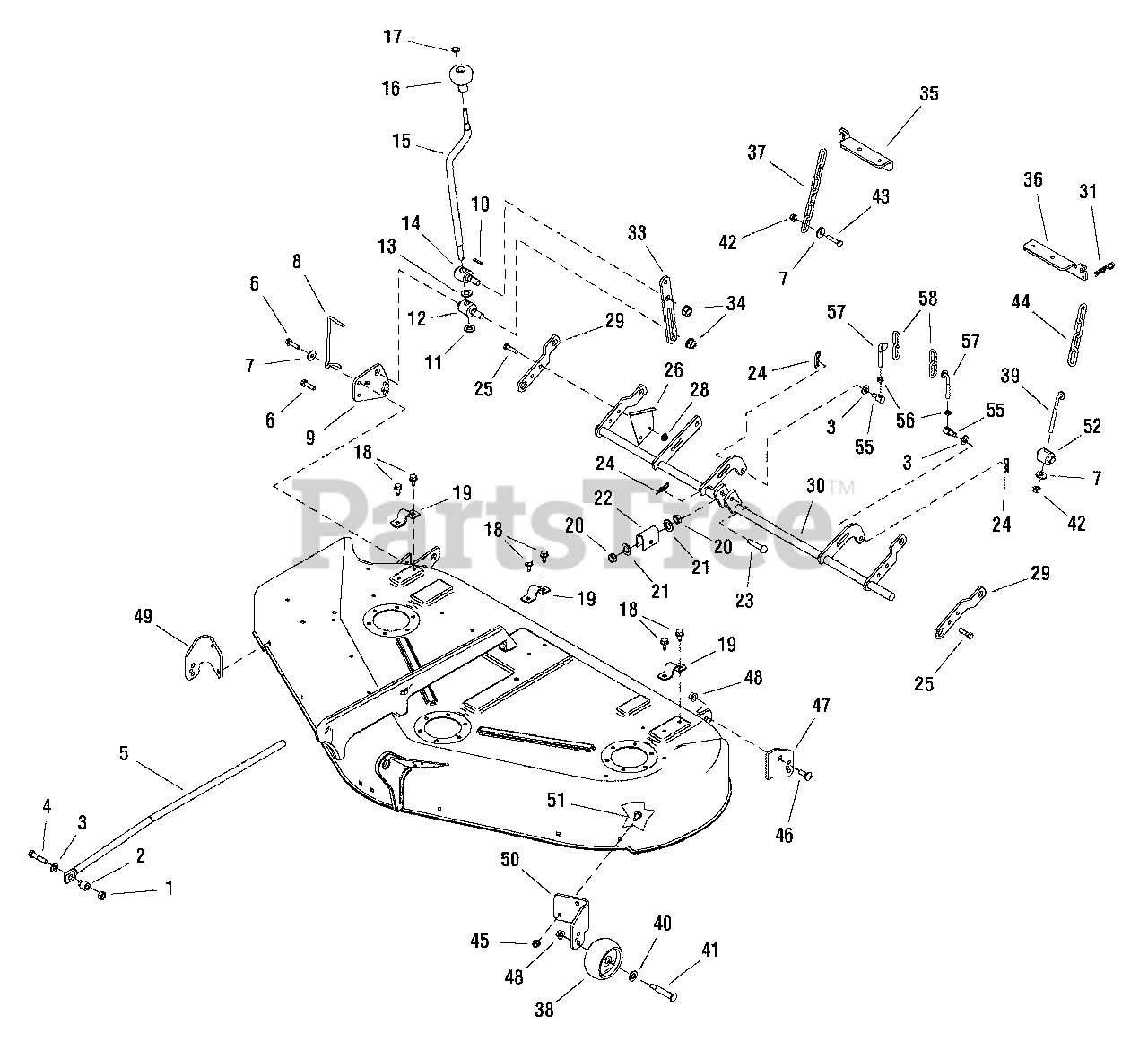

50" Mower Deck - Height Adjust Group Parts Diagram

  • Title

1

Snapper 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

2

Snapper 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 2 left!

0

3

Snapper 1924940SM

WASHER, 3/4
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 11

0

5

Snapper 1722995SM

ROD, Adjusting

$41.99

$

In Stock, only 1 left!

0

6

Snapper 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 12

0

7

Snapper 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 7

0

8

Snapper 1704114SM

INDICATOR, Cutting Height

$16.99

$

In Stock, only 1 left!

0

9

Snapper 1727134ASM

SUPPORT, Plate

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 2816001SM

PIN, Spring

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 1704097SM

WASHER, Detent

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 1704086SM

TRUNNION, 1-1/4

$31.99

$

In Stock, only 1 left!

0

13

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 1704087SM

TRUNNION, 1-1/4

$109.99

$

Usually ships in 2-12 days

0

15

Snapper 1719901SM

CRANK, Height Adjustment

$48.99

$

In Stock, Qty 5

0

16

Snapper 1714084SM

KNOB, Spinner

$12.99

$

Usually ships in 2-12 days

0

17

Snapper 1960093SM

NUT, Push Pal 3/8 Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 5

0

18

Snapper 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

20

Snapper 1915726SM

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

21

Snapper 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

23

Snapper 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

24

Snapper 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

26

Snapper 1704116ASM

BRACKET, Height Of Cut 16GA
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 1931277SM

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

29

Snapper 1704083ASM

ARM, Rear R.H.

$13.99

$

In Stock, only 1 left!

0

30

Snapper 1727139ASM

SHAFT ASSEMBLY, Rocker

$233.99

$

Usually ships in 2-12 days

0

31

Snapper 1960033SM

CLIP, Hair Pin

$3.49

$

Usually ships in 2-12 days

0

33

Snapper 1727143ASM

STOP, Height Adjusting

$12.99

$

Usually ships in 2-12 days

0

34

Snapper 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 1727102ASM

HANGER, RH

$30.99

$

Usually ships in 2-12 days

0

36

Snapper 1727103ASM

HANGER, LH

$24.99

$

Usually ships in 2-12 days

0

37

Snapper 1708266ASM

CHAIN, Link

$9.99

$

Usually ships in 2-12 days

0

38

Snapper 1714760SM

WHEEL,

$6.49

$

In Stock, Qty 20+

0

39

Snapper 1724959SM

ROD, Height Adjusting
(Superseded to 703827)

$10.99

$

In Stock, Qty 20+

0

40

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

41

Snapper 2108765SM

BOLT, Wheel 3/8-16

$6.49

$

In Stock, Qty 20+

0

42

Snapper 1960686SM

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, only 4 left!

0

43

Snapper 1930570SM

CAPSCREW, Hex Head 5/16-18 x 1-1/2 G8

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 1708088ASM

CHAIN, Link

$11.99

$

Usually ships in 2-12 days

0

45

Snapper 1927557SM

NUT, Hex Flange 5/16-18 Whiz Lock Large

$4.99

$

In Stock, Qty 8

0

46

Snapper 1931350SM

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, only 3 left!

0

47

Snapper 1727135ASM

SUPPORT, Roller L.H.

$9.49

$

Usually ships in 2-12 days

0

48

Snapper 1960687SM

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

49

Snapper 1719853ASM

BRACKET, Wheel Gauge R.H.

$29.99

$

In Stock, Qty 5

0

50

Snapper 1719852ASM

BRACKET, Wheel Gauge L.H.

$26.99

$

In Stock, only 1 left!

0

51

Snapper 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8 G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

52

Snapper 1724009SM

TRUNNION

$

$

Not available

55

Snapper 1731382SM

TRUNNION

$34.99

$

In Stock, Qty 6

0

56

Snapper 1920161SM

NUT, Hex Jam 5/16-18

$4.49

$

In Stock, Qty 8

0

57

Snapper 1731384SM

ROD, Height Adjusting 5/16-18
(Superseded to 1737124YP)

$

$

Not available

58

Snapper 1731383ASM

CHAIN, Link

$6.49

$

In Stock, only 1 left!

0
