YT 23 (1695417) - Snapper YT400 Series Yard Tractor, 23hp Steering Group - Power Steering Parts Diagram

YT400 Series Yard Tractor, 23hp

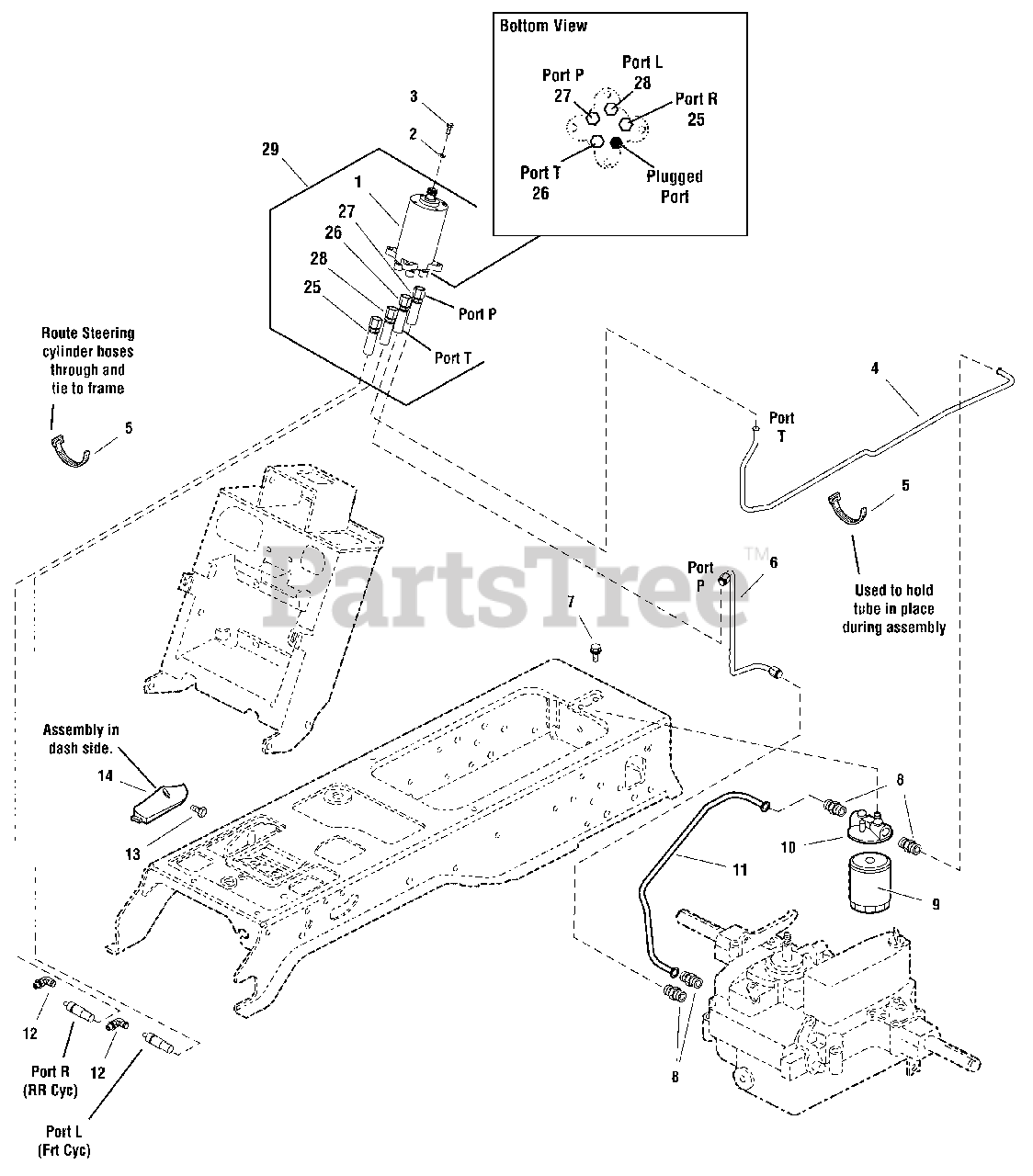

Steering Group - Power Steering Parts Diagram

  • Title

1

Snapper 1733409

POWER STEERING UNIT
(Superseded to 1733409SM)

$1123.99

$

Usually ships in 2-12 days

0

2

Snapper 1916964

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 2860444

CAPSCREW, Hex Head, M06-1 x 16mm
(Superseded to 2860444SM)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper 1722138

TUBE, Hydraulic
(Superseded to 1722138SM)

$139.99

$

Usually ships in 2-12 days

0

5

Snapper 2825094

TIE, Wire
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

6

Snapper 1733727

TUBE, Hydraulic, Steel
(Superseded to 1733727SM)

$78.99

$

Usually ships in 2-12 days

0

7

Snapper 1931646

SCREW, Whiz Lock, 1/4-20 x 1/2
(Superseded to 1931646SM)

$4.49

$

In Stock, Qty 12

0

8

Snapper 1722123

FITTING, Straight
(Superseded to 1722123SM)

$9.99

$

Usually ships in 2-12 days

0

9

Snapper 1719168

FILTER, Oil
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 7

0

10

Snapper 5023096

MANIFOLD, Oil Filter
(Superseded to 5023096SM)

Note: (Was 1719169)

$54.99

$

Usually ships in 2-12 days

0

11

Snapper 1733427

TUBE, Hydraulic
(Superseded to 1733427SM)

$72.99

$

Usually ships in 2-12 days

0

12

Snapper 1733230

PERMA, Push FItting
(Superseded to 1733230SM)

$109.99

$

Usually ships in 2-12 days

0

13

Snapper 1722607

SCREW, Rd Hd, Plastite #8
(Superseded to 1722607SM)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 1722285

COVER, Lift
(Superseded to 1722285SM)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper 1733893

HOSE, Hydraulic, 27"
(Superseded to 1733893SM)

Note: (Port R)

$89.99

$

Usually ships in 2-12 days

0

26

Snapper 1733791

HOSE, Hydraulic, 18"
(Superseded to 1733791SM)

Note: (Port T)

$

$

Not available

27

Snapper 1733780

HOSE, Hydraulic, 26"
(Superseded to 1733780SM)

Note: (Port P)

$120.99

$

Usually ships in 2-12 days

0

28

Snapper 1733595

HOSE, Hydraulic, 31"
(Superseded to 1733595SM)

Note: (Port L)

$91.99

$

Usually ships in 2-12 days

0

29

Snapper 1733894

POWER STEERING ASSEMBLY, 4 Ports, 4WD
(Superseded to 1733894SM)

Note: (Includes Ref. Nos. 1, 25, 26, 27 & 28)

$1075.99

$

Usually ships in 2-12 days

0
