YT 2348 F (960430237-00) - RedMax 48" Yard Tractor, 23hp (2017-09) ENGINE Parts Diagram

48" Yard Tractor, 23hp

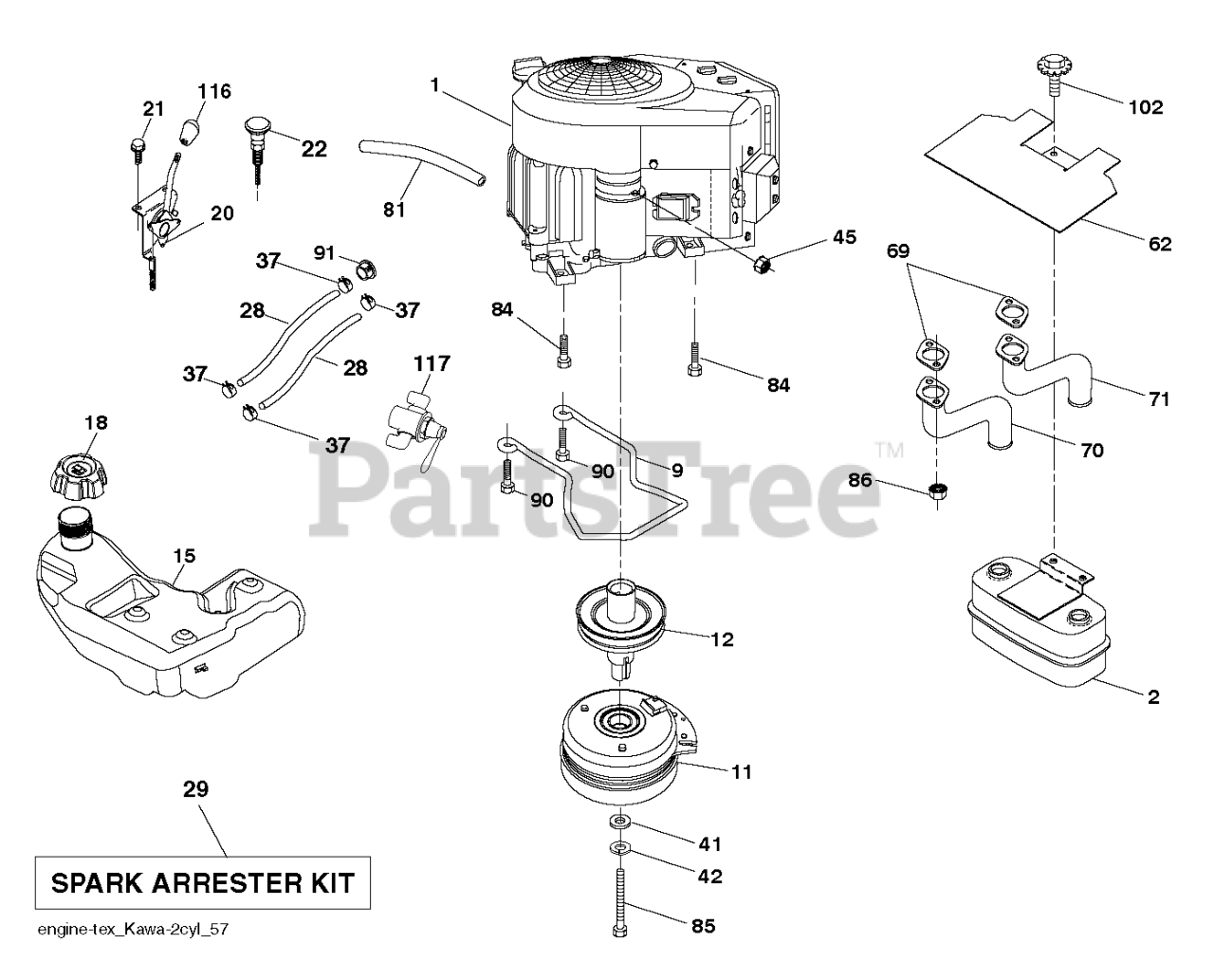

ENGINE Parts Diagram

  • Title

1

RedMax 000000000

Note: ENGINE KAWASAKI MODEL NO. FR691-DS15 (581557501)

$

$

Not available

2

RedMax 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$56.99

$

In Stock, only 1 left!

0

9

RedMax 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

11

RedMax 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$319.99

$

In Stock, only 2 left!

0

12

RedMax 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$37.99

$

In Stock, only 1 left!

0

15

RedMax 532438082

TANK.ASSY.4.GAL.2.PORT.EPA
(Superseded to 529999002)

$284.99

$

Usually ships in 3-10 days

0

18

RedMax 585124802

CAP ASSY FUEL 3" BLACK

$17.99

$

In Stock, only 2 left!

0

20

RedMax 532424341

CONTROL.THROTTLE.PRO.

$43.99

$

In Stock, only 1 left!

0

21

RedMax 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

22

RedMax 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$39.99

$

In Stock, Qty 6

0

28

RedMax 532400414

LINE.FUEL.1/4" ROLL
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

RedMax 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

37

RedMax 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

RedMax 532126197

WASHER

$7.99

$

In Stock, only 4 left!

0

42

RedMax 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, Qty 19

0

45

RedMax 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

RedMax 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

RedMax 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

RedMax 583955601

TUBE.EXHAUST.LH.FR961/FR730

$31.99

$

Usually ships in 3-10 days

0

71

RedMax 583955701

TUBE.EXHAUST.RH.FR961/FR730

$31.99

$

In Stock, only 1 left!

0

81

RedMax 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

84

RedMax 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 11

0

85

RedMax 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$6.99

$

In Stock, only 2 left!

0

86

RedMax 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

90

RedMax 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

91

RedMax 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

102

RedMax 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 17

0

116

RedMax 539132624

KNOB - SHIFT

$7.99

$

In Stock, only 4 left!

0

117

RedMax 532420828

VALVE FUEL RESERVE

$34.99

$

In Stock, only 2 left!

0
