YT 2350 (2690765) - Snapper YT400 Series 50" Yard Tractor, 23hp Engine Group - 23HP Briggs & Stratton, Vanguard Twin Parts Diagram

YT400 Series 50" Yard Tractor, 23hp

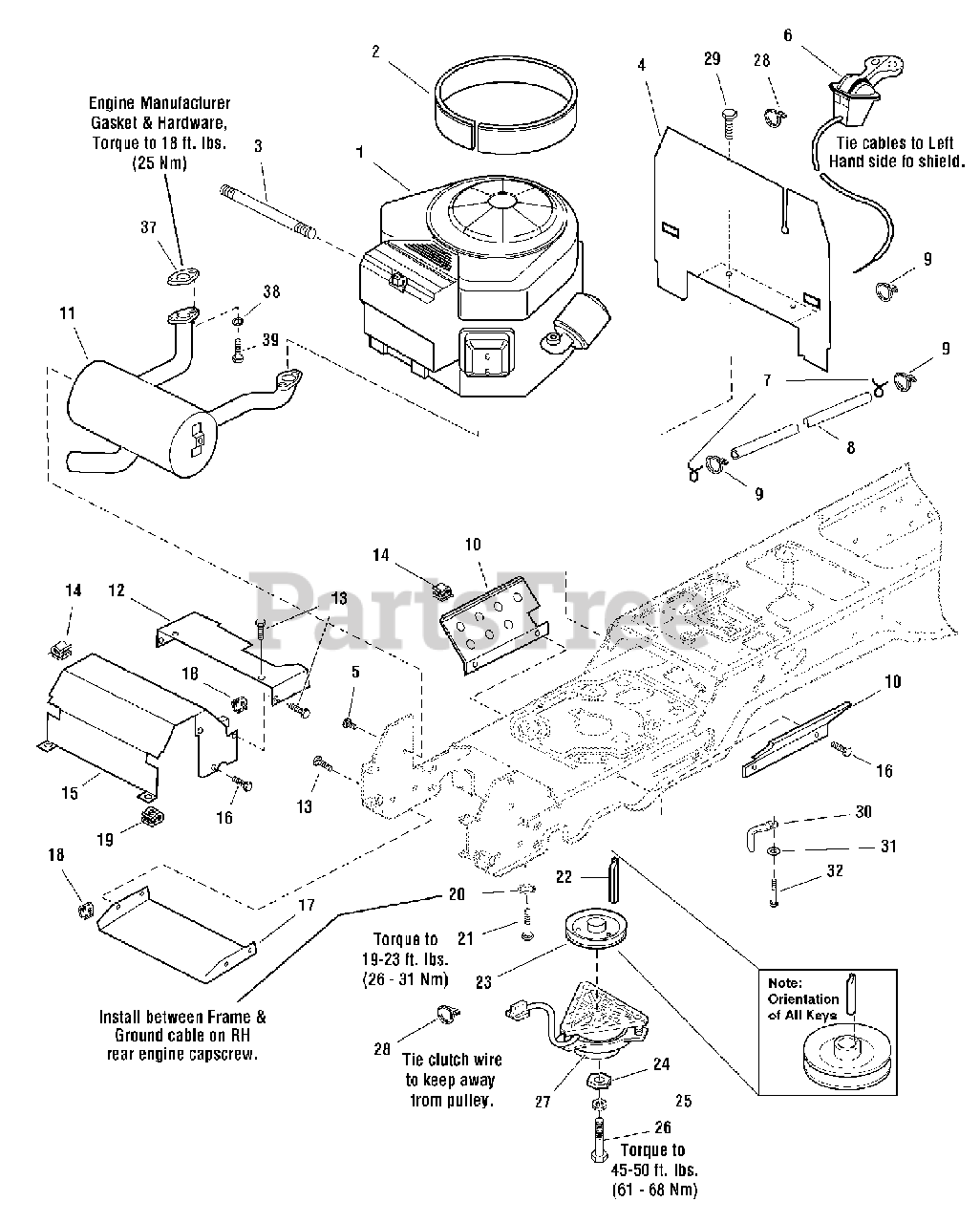

Engine Group - 23HP Briggs & Stratton, Vanguard Twin Parts Diagram

  • Title

1

Snapper 386777-0111-E1

* ENGINE, 23HP B&S VANGUARD Twin Mod. 386777-0111-E1

$

$

Not available

2

Snapper 1722949

SEAL, Circle
(Superseded to 1722949SM)

$35.99

$

In Stock, only 2 left!

0

3

Snapper 1723165

HOSE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

4

Snapper 1722388A

BULKHEAD
(Superseded to 1722388ASM)

$39.99

$

In Stock, only 1 left!

0

5

Snapper 1924856

CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

6

Snapper 1734506

CONTROL, Throttle Double
(Superseded to 1734506SM)

$97.99

$

Usually ships in 2-12 days

0

7

Snapper 93053

CLAMP, Hose, .50" DIA, Type E
(Superseded to 791850)

Note: (Was 2860112)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 1734985

HOSE, 59" Long
(Superseded to 1734985SM)

Note: (Was 1718678)

$20.99

$

Usually ships in 2-12 days

0

9

Snapper 2825094

TIE, Self Locking, .184" WD, 15.00" LG, Black
(Superseded to 1701011SM)

Note: (Was 1701011)

$5.49

$

In Stock, only 2 left!

0

10

Snapper 1722392A

SHIELD
(Superseded to 1722392ASM)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 1736543

MUFFLER
(Superseded to 1736543YP)

$234.99

$

Usually ships in 2-12 days

0

12

Snapper 1722390A

DUCT, Muffler Extension
(Superseded to 1722390ASM)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 1960295

CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 2834683

CLIP, Wire, .125 DIA, .035/.050
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 1722389A

DUCT, Muffler Top
(Superseded to 1722389ASM)

$80.99

$

Usually ships in 2-12 days

0

16

Snapper 1927428

SCREW, Hex Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

Note: (Was 1929000)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 1722414A

SHIELD, Muffler Bottom
(Superseded to 1722414ASM)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 1960368

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

19

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, Qty 6

0

20

Snapper 2820427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 2830598

CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

22

Snapper 1720463

KEY, HI-PRO, .250X2.500
(Superseded to 1720463SM)

$8.99

$

Usually ships in 2-12 days

0

23

Snapper 1722288

PULLEY & HUB ASSEMBLY, 4-1/2 OD
(Superseded to 1739847YP)

$42.99

$

In Stock, only 1 left!

0

24

Snapper 1708264

WASHER, Hex, .453" ID X 1.50" A/F, .250" TH
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 6

0

25

Snapper 1918199

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

26

Snapper 1960649

CAPSCREW, Hex Head, 7/16-20 x 2-3/4
(Superseded to 1960649SM)

Note: (Was 1960648)

$7.49

$

In Stock, only 1 left!

0

27

Snapper 1736105

CLUTCH, Electric, Big Brake OGURA
(Superseded to 1736105SM)

Note: (Was 1720532, or 1686883)

$387.99

$

Usually ships in 2-12 days

0

28

Snapper 2832747

TIE, Self Locking, .09" WD, 3.62" LG, Black Zytel
(Superseded to 2832747SM)

$3.99

$

Usually ships in 2-12 days

0

29

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2

Note: (Was 1925003)

$

$

Not available

30

Snapper 1732875

RETAINER, Clutch, .330" DIA, 2.85 X 2.67 Blk
(Superseded to 1737421AYP)

$12.99

$

In Stock, only 1 left!

0

31

Snapper 80003621

WASHER, .375" (0.41" ID X 0.87" OD X .08" THK) Blk
(Superseded to 703878)

Note: (Was 1924940)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 2827187

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

37

Snapper 691613

* GASKET, Muffler

$5.49

$

In Stock, Qty 15

0

38

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 2860660

CAPSCREW, Socket Head, 5/16-18 x 7/8, G8
(Superseded to 2860660SM)

$3.99

$

Usually ships in 2-12 days

0

--

Snapper 1736106

HARNESS, Jumper for Ogura Electric Clutch (Not Shown)
(Superseded to 1736106SM)

$11.99

$

Usually ships in 2-12 days

0
