YT 2350 (2690806) - Snapper YT400 Series 50" Yard Tractor, 23hp Frame & Front Axle Group Parts Diagram

YT400 Series 50" Yard Tractor, 23hp

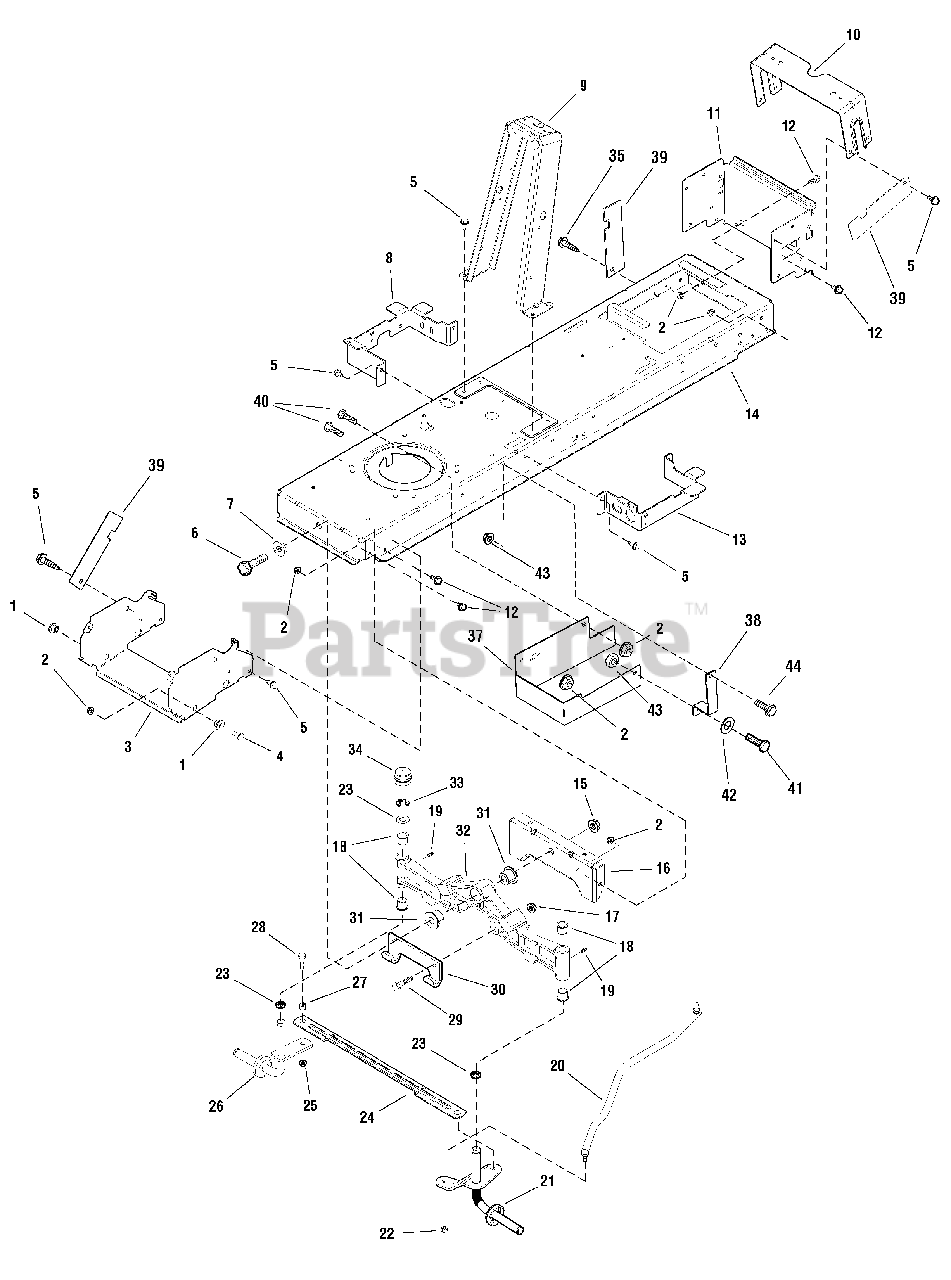

Frame & Front Axle Group Parts Diagram

  • Title

1

Snapper 1728086

PIVOT, Hood Powdered Metal
(Superseded to 1728086SM)

$5.99

$

In Stock, only 1 left!

0

2

Snapper 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Snapper 1727982A

SUPPORT, Muffler, Hood 14GA
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

4

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

5

Snapper 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

6

Snapper 2860744

CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

7

Snapper 1960035

WASHER, Flat, 5/8
(Superseded to 1960035SM)

$4.49

$

In Stock, Qty 13

0

8

Snapper 1727904A

SUPPORT, Front Footrest RH
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper 1738935A

TOWER, 12GA
(Superseded to 1738935AYP)

$51.99

$

Usually ships in 2-12 days

0

10

Snapper 1731310A

SUPPORT, Seat Deck 12GA
(Superseded to 1731310SM)

$36.99

$

Usually ships in 2-12 days

0

11

Snapper 1731309A

SUPPORT, Rear Frame 12GA

$

$

Not available

12

Snapper 1930591

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 13

0

13

Snapper 1727905A

SUPPORT, Front Footrest LH
(Superseded to 885536AYP)

$25.99

$

Usually ships in 2-12 days

0

14

Snapper 1727901A

FRAME, 12GA
(Superseded to 1756448YP)

$222.99

$

Usually ships in 2-12 days

0

15

Snapper 2860646

NUT, Hex Flange Two-Way Lock, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 7

0

16

Snapper 1727902A

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

17

Snapper 1930650

LOCKNUT, Hex, Flange, 7/16-14
(Superseded to 1930650SM)

$5.49

$

In Stock, only 1 left!

0

18

Snapper 2176440

BUSHING, Nylon, 3/4 Diameter
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

19

Snapper 1704214

FITTING, Zerk
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

20

Snapper 1727868

LINK, Drag
(Superseded to 1727868SM)

$75.99

$

Usually ships in 2-12 days

0

21

Snapper 1727873A

SPINDLE & ARM ASSEMBLY, LH
(Superseded to 1727873ASM)

$101.99

$

Usually ships in 2-12 days

0

22

Snapper 1960747

NUT, Hex Nylock 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 12

0

23

Snapper 1960160

WASHER, 3/4
(Superseded to 1960160SM)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 1728080A

ROD, Tie
(Superseded to 1728080ASM)

$35.99

$

In Stock, only 1 left!

0

25

Snapper 1930645

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Snapper 1727872A

SPINDLE & CUP ASSEMBLY, RH
(Superseded to 1727872ASM)

$98.99

$

In Stock, only 3 left!

0

27

Snapper 1731912

BUSHING, Powdered Metal
(Superseded to 1731912SM)

$4.49

$

In Stock, Qty 7

0

28

Snapper 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5
(Superseded to 1960032SM)

$5.49

$

In Stock, Qty 9

0

29

Snapper 1960652

CAPSCREW, 7/16-14 x 1.5
(Superseded to 1960652SM)

$5.49

$

Usually ships in 2-12 days

0

30

Snapper 1721918A

HOOK, "J"
(Superseded to 1721918ASM)

$31.99

$

In Stock, only 2 left!

0

31

Snapper 1730186

BUSHING, Axle Pivot Powdered Metal
(Superseded to 1730186SM)

$6.99

$

In Stock, only 2 left!

0

32

Snapper 1728018

AXLE, Front Iron Casting Machined
(Superseded to 1756386YP)

$185.99

$

In Stock, only 1 left!

0

33

Snapper 1611710

RING, Klipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 16

0

34

Snapper 1734135

CAP, Hub
(Superseded to 1734135SM)

$5.99

$

In Stock, Qty 11

0

35

Snapper 1664847

SCREW, Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 1736020A

GUARD, Clutch
(Superseded to 1736020BMYP)

Note: France Models Only

$53.99

$

Usually ships in 2-12 days

0

38

Snapper 1736023A

SUPPORT, Guard

Note: France Models Only

$

$

Not available

39

Snapper 1736025A

GUARD, Pulley Rear

Note: France Models Only

$

$

Not available

40

Snapper 1921332

CAPSCREW, Hex 5/16-18 x 3/4
(Superseded to 704287)

Note: France Models Only

$3.99

$

In Stock, Qty 19

0

41

Snapper 1921958

CAPSCREW, Hex 1/4-20 x 1/2
(Superseded to 1921958SM)

Note: France Models Only

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

Note: France Models Only

$4.49

$

In Stock, Qty 11

0

43

Snapper 1920397

NUT, Hex Lock 1/4-20
(Superseded to 703232)

Note: France Models Only

$4.49

$

In Stock, Qty 20+

0

44

Snapper 2860664

CAPSCREW, 1/4-20 x 3/4
(Superseded to 2860664SM)

Note: France Models Only

$5.99

$

In Stock, only 2 left!

0
