YT 23500 (2690752) - Snapper YT400 Series 50" Yard Tractor, 23hp 50" Mower Deck - Clutch & Support Group Parts Diagram

YT400 Series 50" Yard Tractor, 23hp

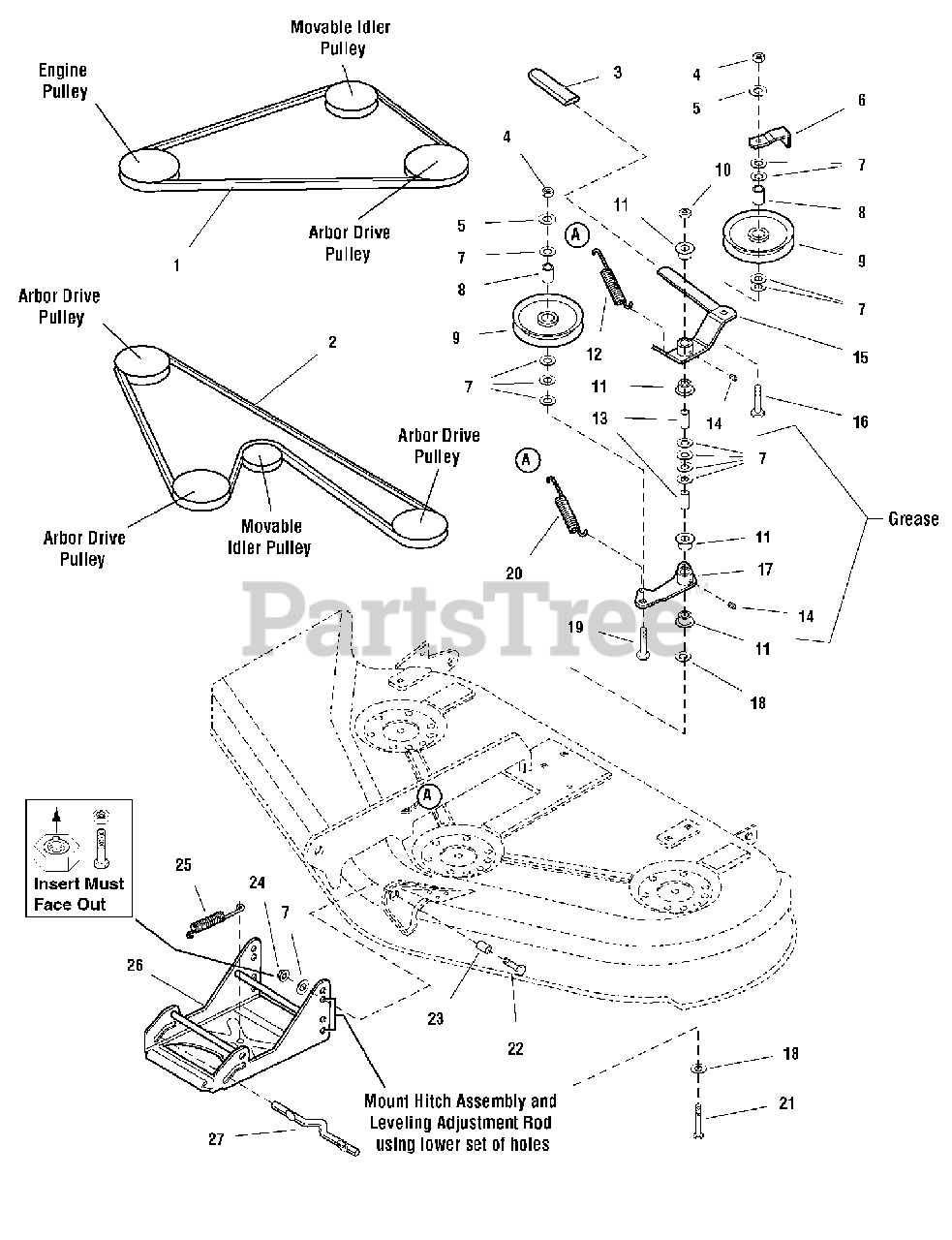

50" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Snapper 1707740

V-BELT, Mower Drive
(Superseded to 1707740SM)

$36.99

$

In Stock, Qty 12

0

2

Snapper 1703836

V-BELT, Arbor Drive
(Superseded to 1703836SM)

$45.99

$

In Stock, only 4 left!

0

3

Snapper 1665835

GRIP, Lever
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper 3031009

NUT, Hex, 3/8-16
(Superseded to 7091302SM)

Note: Was 1916950

$4.49

$

In Stock, Qty 5

0

5

Snapper 3031008

WASHER, Lock, 3/8
(Superseded to 703454)

Note: Was 1916965

$3.49

$

In Stock, Qty 7

0

6

Snapper 1677135A

BELT STOP, Idler
(Superseded to 1677135ASM)

$12.99

$

In Stock, only 1 left!

0

7

Snapper 7090122

WASHER, 3/8
(Superseded to 703878)

Note: Was 1924940

$3.99

$

In Stock, Qty 20+

0

8

Snapper 1716553

HUB, 25/64 x 3/4 x 63/64, Powder Metal
(Superseded to 1716553SM)

$4.99

$

In Stock, only 3 left!

0

9

Snapper 1685150

PULLEY, Idler
(Superseded to 1685150SM)

Note: (Includes Ref. No. 8)

$34.99

$

In Stock, Qty 19

0

10

Snapper 3031355

NUT, Hex Flange, 3/8-16, MAC Lock Large, Black
(Superseded to 703893)

Note: Was 1960339

$6.99

$

In Stock, Qty 20+

0

11

Snapper 1676148

BUSHING, 5/8 x 3/4 x 13/32, Powder Metal
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 12

0

12

Snapper 1715435

SPRING
(Superseded to 1715435SM)

$9.49

$

In Stock, only 4 left!

0

13

Snapper 1674669

SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened
(Superseded to 1674669SM)

$11.99

$

In Stock, only 3 left!

0

14

Snapper 2912808

GREASE FITTING
(Superseded to 2812808SM)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 1704658

LEVER ASSEMBLY, Idler
(Superseded to 1704658SM)

Note: (Includes Ref. Nos. 11 & 14)

$48.99

$

In Stock, Qty 7

0

16

Snapper 1960315

CARRIAGE BOLT, 3/8-16 x 2
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

17

Snapper 1718561

LEVER ASSEMBLY, Idler Arm
(Superseded to 1718561SM)

Note: (Includes Ref. Nos. 11 & 14)

$50.99

$

In Stock, Qty 6

0

18

Snapper 1924356

WASHER, 3/8, Black
(Superseded to 703591)

$5.49

$

In Stock, Qty 7

0

19

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

20

Snapper 1656936

SPRING
(Superseded to 1656936SM)

$9.99

$

In Stock, Qty 7

0

21

Snapper 1923938

CAPSCREW, Hex Head, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 1921968

CAPSCREW, Hex Head, 3/8-16 x 1-3/8
(Superseded to 1921968SM)

$4.49

$

In Stock, Qty 5

0

23

Snapper 2157081

SPACER, 3/8 x 3/4 x 1/2
(Superseded to 2157081SM)

$8.99

$

In Stock, Qty 12

0

24

Snapper 7960641

NUT, Hex Aluminum Insert Lock, 3/8-16

$

$

Currently unavailable

25

Snapper 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 10

0

26

Snapper 1707432A

HITCH ASSEMBLY
(Superseded to 1707432ASM)

$149.99

$

Usually ships in 2-12 days

0

27

Snapper 1715759

ROD, Latch
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 5

0
