YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Cruise Control Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

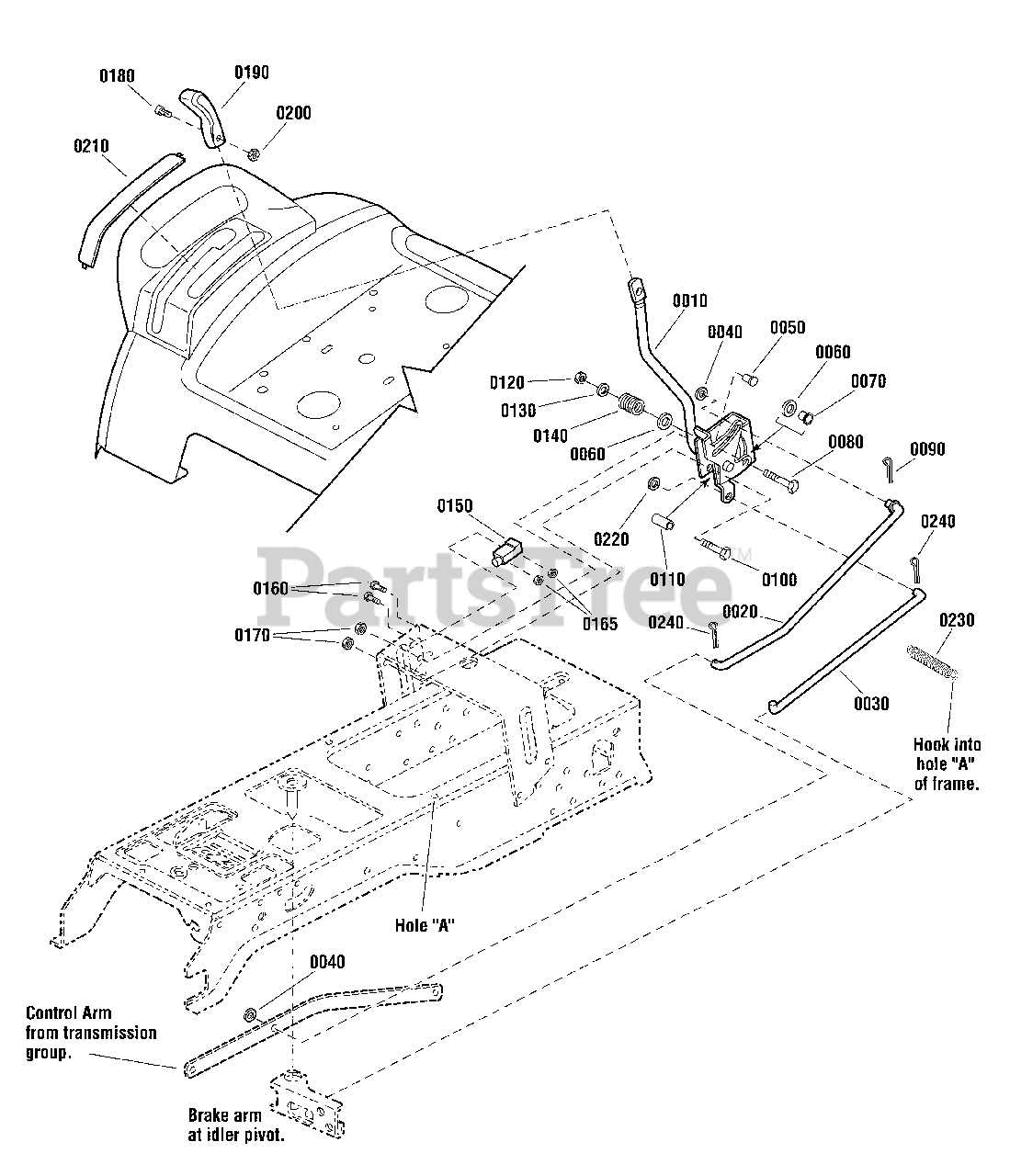

Cruise Control Group Parts Diagram

  • Title

0010

Snapper 1722003AYP

LEVER & BRACKET ASSEMBLY, Cruise
(Superseded to 1722003SM)

$78.99

$

Usually ships in 2-12 days

0

0020

Snapper 1722117SM

ROD, Cruise

$14.99

$

Usually ships in 2-12 days

0

0030

Snapper 1733719SM

ROD, Return

$14.99

$

Usually ships in 2-12 days

0

0040

Snapper 1960103SM

WASHER, 3/8"

$4.49

$

In Stock, only 2 left!

0

0050

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0060

Snapper 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 11

0

0070

Snapper 1709043SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

0080

Snapper 1931342SM

BOLT, Carriage, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

0090

Snapper 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1722080SM

SPACER, .357 x 5/8 x 1.4

$15.99

$

Usually ships in 2-12 days

0

0120

Snapper 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 9

0

0130

Snapper 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 11

0

0140

Snapper 1677746SM

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

0150

Snapper 1717050SM

SWITCH, Push, Neutral Start, Gray

$17.99

$

In Stock, Qty 11

0

0160

Snapper 1933737SM

SCREW, Hex Washer Head, 10-24 x 5/8

$3.49

$

In Stock, only 2 left!

0

0165

Snapper 1960591SM

NUT, Hex, 10-24

$3.49

$

In Stock, Qty 10

0

0170

Snapper 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0180

Snapper 1960666SM

SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1722303SM

HANDLE, Cruise

$13.99

$

In Stock, only 1 left!

0

0200

Snapper 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 1722314SM

COVER, w/Cruise Icon

$8.99

$

Usually ships in 2-12 days

0

0220

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 13

0

0230

Snapper 2159106SM

SPRING, Cruise Return to Frame
(Superseded to 703144)

$5.99

$

In Stock, Qty 8

0

0240

Snapper 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0
