YT 2452 (2691250-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Electrical Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

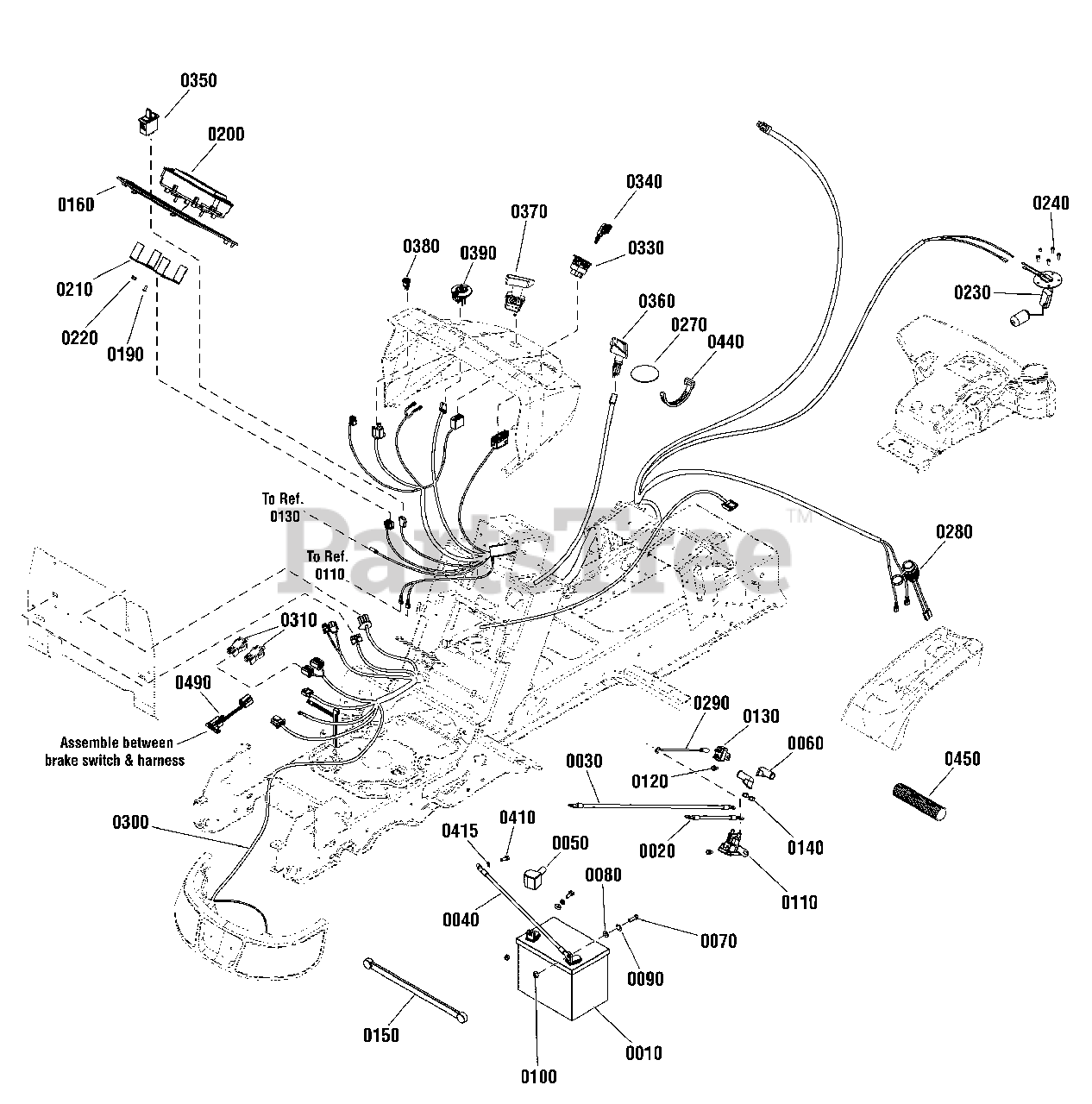

Electrical Group Parts Diagram

  • Title

0010

Battery

Note: (Not a serviceable part)

$

$

Not available

0020

Snapper 1755468YP

CABLE, Red

$9.99

$

Usually ships in 2-12 days

0

0030

Snapper 1721830SM

CABLE

$19.99

$

In Stock, only 1 left!

0

0040

Snapper 1755469YP

CABLE, Black

$12.99

$

Usually ships in 2-12 days

0

0050

Snapper 1677296SM

BOOT, Insulator

$6.49

$

In Stock, only 2 left!

0

0060

Snapper 1713535SM

BOOT, Insulator

$5.99

$

Usually ships in 2-12 days

0

0070

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 GR5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0080

Snapper 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 10

0

0090

Snapper 71059MA

LOCKWASHER, Split, 1/4

$3.99

$

In Stock, only 3 left!

0

0100

Snapper 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

0110

Snapper 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

0120

Snapper 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20X0.500
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 1665238SM

BREAKER, Circuit, 20 Amp

$14.99

$

In Stock, Qty 8

0

0140

Snapper 2860750SM

NUT, Hex KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0150

Snapper 1722009SM

STRAP, Rubber

$10.99

$

In Stock, only 1 left!

0

0160

Snapper 1754861YP

BEZEL, Premium Instrument

$8.99

$

Usually ships in 2-12 days

0

0200

Snapper 705979

PANEL, Instrument

$433.99

$

Usually ships in 2-12 days

0

0210

Snapper 1739681BMYP

BRACKET, Instrument Panel

$31.99

$

Usually ships in 2-12 days

0

0220

Snapper 67885GS

NUT, Nylock, M6-1

$6.99

$

In Stock, only 1 left!

0

0190

Snapper 1739329YP

SCREW, 5mm. x 12mm Lg

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 1737523YP

SENDER, Fuel

$75.99

$

Usually ships in 2-12 days

0

0240

Snapper 2860665SM

SCREW, Pan Head, #10-32 x 1/2

$3.49

$

Usually ships in 2-12 days

0

0270

Snapper 1722309SM

PLUG, Hole

$5.99

$

In Stock, Qty 11

0

0280

Snapper 1725302SM

OUTLET, 12 Volt

$26.99

$

Usually ships in 2-12 days

0

0290

Snapper 1665237SM

WIRE, 12GA, 5.9

$11.99

$

In Stock, only 1 left!

0

0300

Snapper 1757735YP

WIRING HARNESS, Main

$335.99

$

Usually ships in 2-12 days

0

0310

Snapper 1732006SM

SWITCH, Push Button, NO / NC
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0330

Snapper 1726556SM

SWITCH, Reverse Mow Option
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0340

Snapper 1726557SM

KEY, No Mow Module, Plastic

$5.49

$

In Stock, Qty 19

0

0350

Snapper 1738381YP

SWITCH, Height Of Cut

$38.99

$

In Stock, only 2 left!

0

0360

Snapper 1757736YP

SWITCH, PTO

$43.99

$

Usually ships in 2-12 days

0

0370

Snapper 1757737YP

SWITCH, Headlight

$39.99

$

In Stock, only 1 left!

0

0380

Snapper 282640

PLUG, Hole

$

$

Not available

0410

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

0390

Snapper 7106169YP

SWITCH, Ignition

$17.99

$

Usually ships in 2-12 days

0

0415

Snapper 1921880SM

LOCKWASHER, External Tooth, 1/4

$3.49

$

Usually ships in 2-12 days

0

0440

Snapper 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0450

Snapper 5050861X6YP

WIRE LOOM, 5/8 ID X 6 IN

$6.49

$

In Stock, only 1 left!

0

0490

Snapper 1734025SM

ASSEMBLY, Jumper

$14.99

$

Usually ships in 2-12 days

0
