YT 2452F (2690938-00) - Snapper YT400 Series 52" Yard Tractor, 24hp 52" Mower Deck - Clutch Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

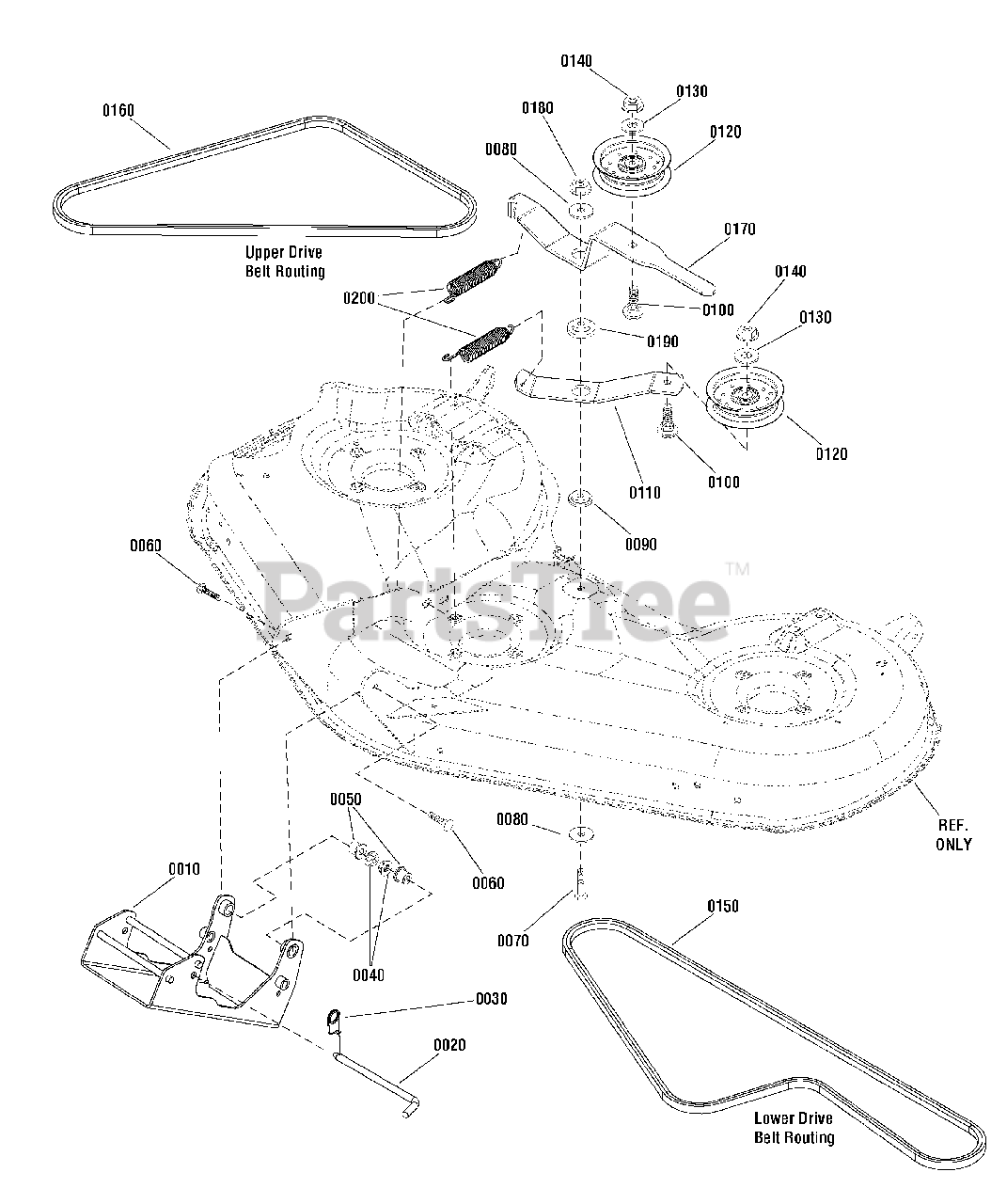

52" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Snapper 1737046ASM

HITCH ASSEMBLY, Mower

$168.99

$

Usually ships in 2-12 days

0

0020

Snapper 1731414SM

ROD, Latch, 1/2 Dia. X 9 Lg (42" Mower)

$14.99

$

In Stock, only 2 left!

0

0030

Snapper 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 1960687SM

NUT, Hex Flange, 3/8-16, ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 1736018SM

PIVOT, 3/4 OD x 3/4

$9.99

$

Usually ships in 2-12 days

0

0060

Snapper 7091945YP

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0080

Snapper 1924356SM

WASHER, 3/8, (13/32 ID x 1-1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 9

0

0090

Snapper 1714255SM

SPACER, 13/32 ID x 1-1/2 OD

$6.49

$

In Stock, Qty 6

0

0100

Snapper 7091810SM

BOLT, Carriage, 3/8 x 1-3/4, G5
(Superseded to 703879)

$3.99

$

In Stock, Qty 13

0

0110

Snapper 1735321AYP

ARM, Idler, Lower

$39.99

$

Usually ships in 2-12 days

0

0120

Snapper 1736540YP

PULLEY, Idler, (46, 52" Mowers)

$35.99

$

In Stock, Qty 9

0

0130

Snapper 7091528SM

WASHER, Flat,, 3/8 x 7/8

$3.99

$

In Stock, only 2 left!

0

0140

Snapper 7091619SM

NUT, Hex Flange Locking, 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 1665450SM

V-BELT, HA, 87.20

$47.99

$

In Stock, only 2 left!

0

0160

Snapper 1734130SM

V-BELT, A-Wedge, Drive, 69.97

$49.99

$

Usually ships in 2-12 days

0

0180

Snapper 1930645SM

NUT, Hex Flange, Two Way Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0170

Snapper 1739585AYP

ARM, Idler, Upper

$73.99

$

Usually ships in 2-12 days

0

0190

Snapper 1715772SM

SPACER, 1-3/4 OD

$13.99

$

In Stock, Qty 7

0

0200

Snapper 1739594YP

SPRING, Extension, 1 OD x 5-1/4

$31.99

$

Usually ships in 2-12 days

0
