YT 2452F (2690938-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Electrical Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

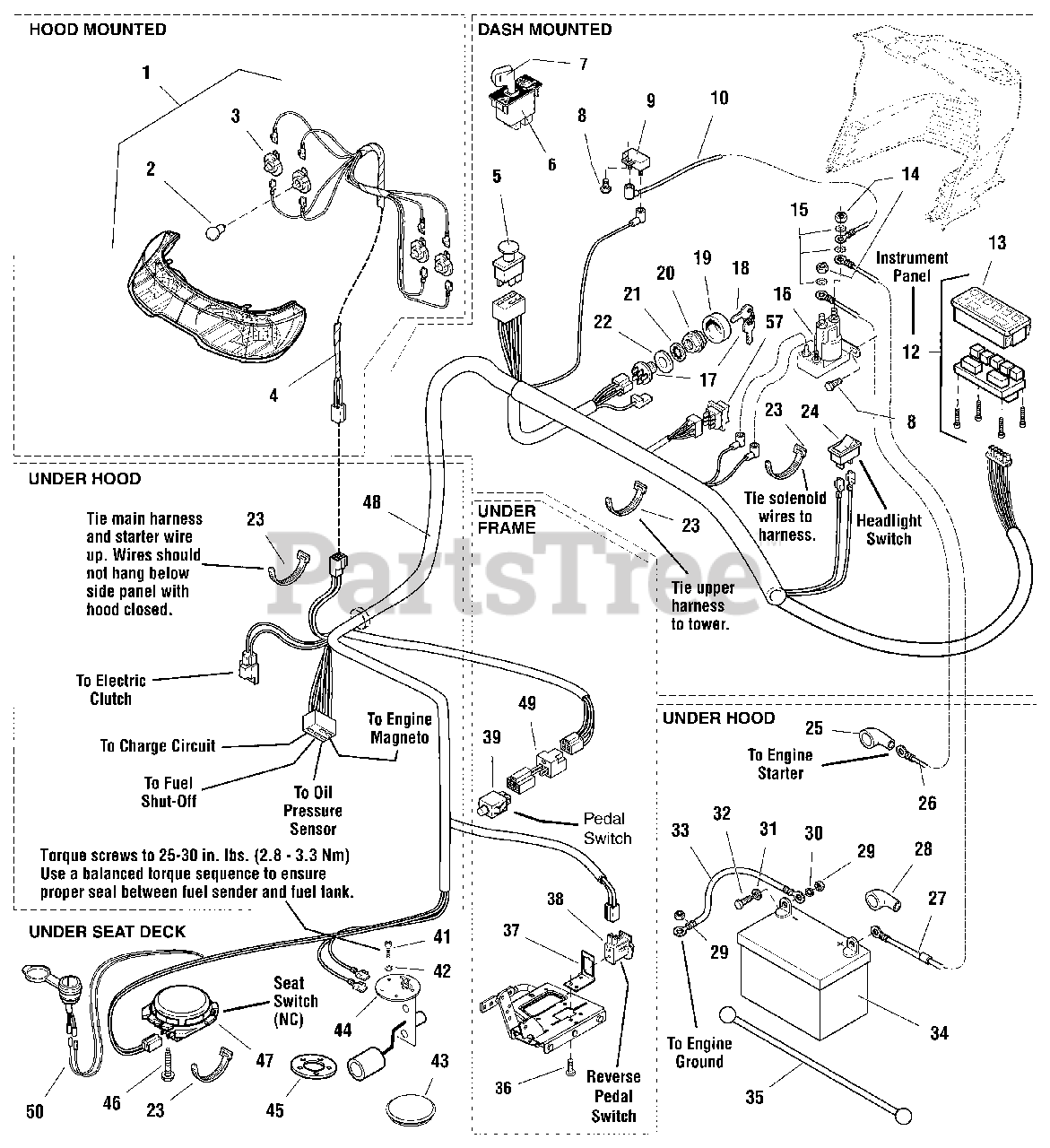

Electrical Group Parts Diagram

  • Title

1

Snapper 1721810

HEADLIGHT ASSEMBLY, 4 Bulb
(Superseded to 1721810SM)

Note: (Includes Ref. Nos. 2 & 3)

$174.99

$

Usually ships in 2-12 days

0

2

Snapper 1677371

BULB, Headlight, 12.8V
(Superseded to 1677371SM)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 1723451

SOCKET ASSEMBLY, Headlight, Sealed
(Superseded to 1723451SM)

$29.99

$

Usually ships in 2-12 days

0

4

Snapper 1722669

HARNESS, Headlight
(Superseded to 1722669SM)

$43.99

$

In Stock, only 1 left!

0

5

Snapper 5022180

SWITCH, PTO Push/Pull Symbols
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

6

Snapper 1726556

SWITCH, RMO Module Only
(Superseded to 1726556SM)

$

$

Not available

7

Snapper 1726557

KEY, RMO Module Plastic
(Superseded to 1726557SM)

$5.49

$

Usually ships in 2-12 days

0

8

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black

$

$

Not available

9

Snapper 1665238

BREAKER, Circuit, 12 Volt 20 Amps
(Superseded to 1665238SM)

$12.99

$

In Stock, Qty 20+

0

10

Snapper 1665237

WIRE, 12GA 5-15/16 Long, Red
(Superseded to 1665237SM)

$12.99

$

In Stock, only 2 left!

0

12

Snapper 1725074

PANEL, Instrument w/ Fuel Gage & Hour Meter
(Superseded to 1725074SM)

Note: (Includes Ref. No. 13)

$

$

Not available

13

Snapper 1724865

COVER, Instrument Panel
(Superseded to 1724865SM)

$14.99

$

Usually ships in 2-12 days

0

14

Snapper 80002726

NUT, Hex, 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

15

Snapper 2820426

LOCKWASHER, External Tooth, 5/16
(Superseded to 2820426SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 1728963

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

17

Snapper 1686734

SWITCH ASSEMBLY, Ignition, 6 Pin INDAK
(Superseded to 1686734SM)

Note: (Includes Ref. Nos. 18, 19, 20, 21 & 22)

$34.99

$

In Stock, Qty 20+

0

18

Snapper 1717163

KEYS, Set of 2
(Superseded to 1717163SM)

$9.49

$

In Stock, Qty 7

0

19

Snapper 1717550

COVER, For Ignition Switch, Plastic
(Superseded to 1717550SM)

$8.99

$

In Stock, Qty 8

0

20

Snapper 1717549

NUT, Hex Flange, 5/8-32, Ignition Switch
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

21

Snapper 1960547

LOCKWASHER, Internal Tooth, 5/8, Thin
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 8

0

22

Snapper 2101025

WASHER, Shim
(Superseded to 2101025SM)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 2825094

TIE, Strap, 7-5/16 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

24

Snapper 1716951

SWITCH, Headlights , 2 Terminal
(Superseded to 1716951SM)

$22.99

$

In Stock, only 2 left!

0

25

Snapper 1713535

BOOT, Insulator Cable Terminal, 1-15/16 Long, Red
(Superseded to 1713535SM)

$5.99

$

In Stock, only 1 left!

0

26

Snapper 1721830

CABLE, #6 x 25" Long, Ring Terminals
(Superseded to 1721830SM)

$20.99

$

Usually ships in 2-12 days

0

27

Snapper 1603618

CABLE, #6 x 8" Long, Ring Terminals
(Superseded to 1603618SM)

$12.99

$

In Stock, only 2 left!

0

28

Snapper 1677296

BOOT, Insulator Battery Terminal
(Superseded to 1677296SM)

$6.99

$

In Stock, Qty 6

0

29

Snapper 2816622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

30

Snapper 2816964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 2821319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 80002712

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 1713163

CABLE, #6 x 26 Long, Ring Terminal
(Superseded to 1713163SM)

$26.99

$

In Stock, only 1 left!

0

34

* BATTERY, 12 Volt, 340CCA, 11U1L

$

$

Not available

35

Snapper 1722009

STRAP, Battery, 14 Long, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

36

Snapper 1929000

CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

37

Snapper 1726810A

BRACKET, Switch Mount
(Superseded to 1726810ASM)

$13.99

$

Usually ships in 2-12 days

0

38

Snapper 1704379

SWITCH, Reverse Pedal
(Superseded to 1732004)

$9.49

$

In Stock, Qty 9

0

39

Snapper 1732006

SWITCH, Push Button, Foot Pedal
(Superseded to 7022886YP)

$15.99

$

In Stock, Qty 20+

0

41

Snapper 2860665

SCREW, Pan Head Torx, #10-32 x 1/2
(Superseded to 2860665SM)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 1917365

LOCKWASHER, 3/16 #10
(Superseded to 1917365SM)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 1722309

PLUG, Hole 3", Round
(Superseded to 1722309SM)

$6.49

$

In Stock, Qty 10

0

44

Snapper 1686921

SENDER, Fuel Tank
(Superseded to 1686921SM)

Note: (Includes Ref. 45)

$94.99

$

Usually ships in 2-12 days

0

45

Snapper 1685303

GASKET
(Superseded to 1685303SM)

$10.99

$

In Stock, only 4 left!

0

46

Snapper 1960536

CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

47

Snapper 1718981

SWITCH, Seat, Grey, NC
(Superseded to 1718981SM)

$23.99

$

In Stock, only 4 left!

0

48

Snapper 1739708

HARNESS, Wiring
(Superseded to 1739708YP)

$

$

Not available

49

Snapper 1734025

WIRING ASSEMBLY, All Conditions Shutdown
(Superseded to 1734025SM)

$15.99

$

In Stock, only 2 left!

0

50

Snapper 1725302

12-VOLT OUTLET
(Superseded to 1725302SM)

$27.99

$

Usually ships in 2-12 days

0

57

Snapper 1716329

SWITCH, EHOC
(Superseded to 1716329SM)

$50.99

$

In Stock, Qty 20+

0
