YT 2452F (2690938-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Frame & Front Axle Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

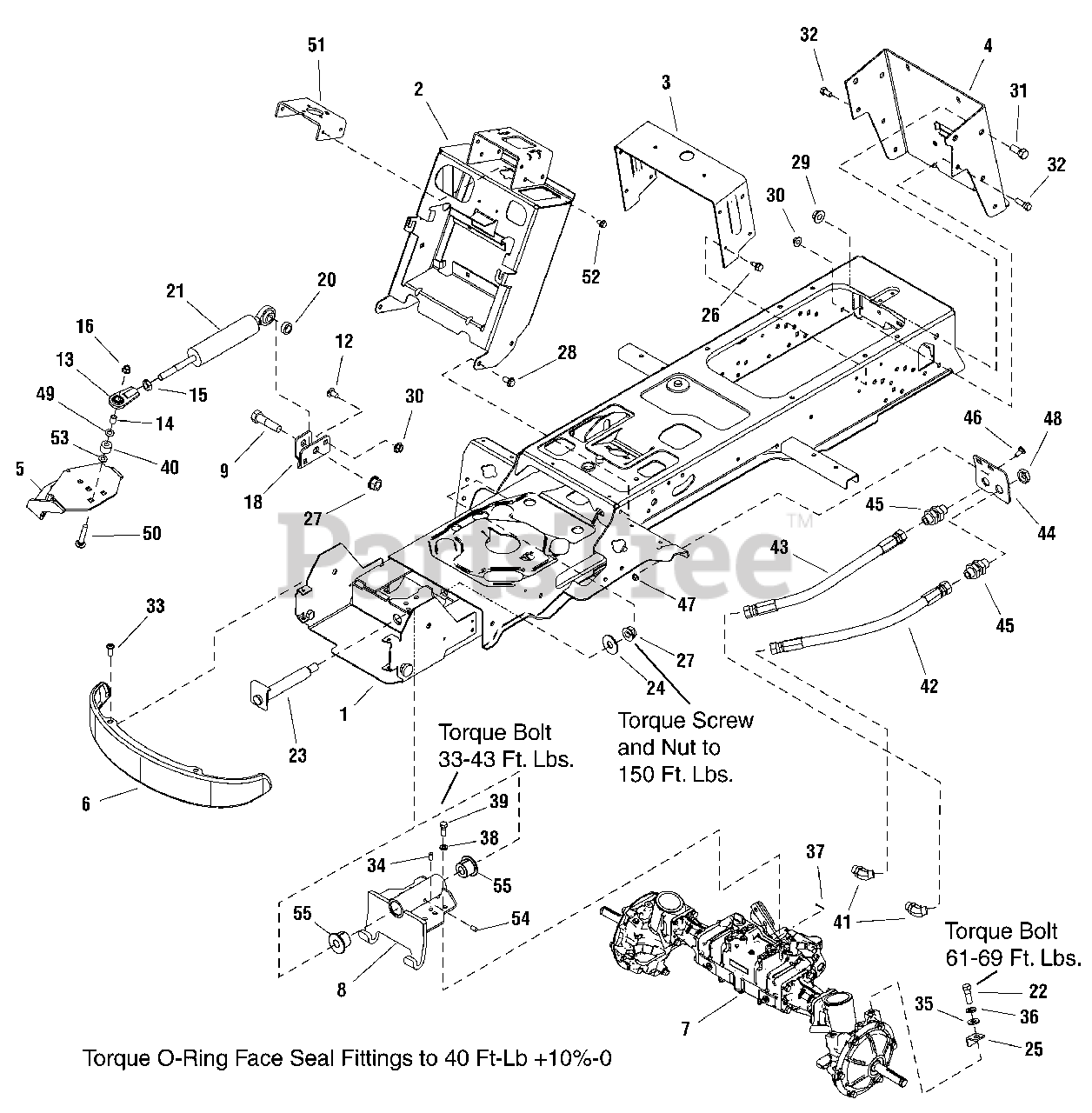

Frame & Front Axle Group Parts Diagram

  • Title

1

Snapper 1734731ASM

FRAME ASSEMBLY, Front & Rear 4WD

$2564.99

$

Usually ships in 2-12 days

0

2

Snapper 1733139ASM

TOWER & SUPPORT ASSEMBLY

$233.99

$

Usually ships in 2-12 days

0

3

Snapper 1752878AYP

SUPPORT, Seat Deck

$39.99

$

Usually ships in 2-12 days

0

4

Snapper 1722602ASM

BACKPLATE, Hitch

$122.99

$

Usually ships in 2-12 days

0

5

Snapper 1733918ASM

BRACKET ASSEMBLY, Steering 4WD

$

$

Not available

6

Snapper 1721805ASM

BUMPER, 4GA

$59.99

$

Usually ships in 2-12 days

0

7

Snapper 1733480SM

AXLE ASSEMBLY, Front

$3384.99

$

Usually ships in 2-12 days

0

8

Snapper 1733710ASM

PIVOT ASSEMBLY, Axle
(Superseded to 1734241SM)

$231.99

$

In Stock, only 1 left!

0

9

Snapper 1960755SM

CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G5

$6.49

$

Usually ships in 2-12 days

0

12

Snapper 1931348SM

BOLT, Carriage, 3/9-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 1702779SM

JOINT, Ball 1/2-20

$28.99

$

In Stock, only 2 left!

0

14

Snapper 1708236SM

SPACER

$8.99

$

In Stock, only 2 left!

0

15

Snapper 1919262SM

NUT, Hex Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, only 2 left!

0

16

Snapper 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

18

Snapper 1733166ASM

BRACKET, Cylinder Mounting

$21.99

$

Usually ships in 2-12 days

0

20

Snapper 2172914SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

21

Snapper 1737058YP

CYLINDER, Hydraulic Steering

$457.99

$

In Stock, only 2 left!

0

22

Snapper 197487SM

CAPSCREW, Hex Head, M12-1-3/4 x 35

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 1733863SM

SHAFT & BRACKET ASSEMBLY, Axle Pivot

$109.99

$

Usually ships in 2-12 days

0

24

Snapper 1960035SM

WASHER, 5/8

$4.49

$

In Stock, Qty 13

0

25

Snapper 1734511ASM

STOP, "L" Steering

$13.99

$

Usually ships in 2-12 days

0

26

Snapper 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 2860646SM

NUT, Hex Flange 5/8-11 Two-Way Lock

$10.99

$

In Stock, Qty 7

0

28

Snapper 1923683SM

SCREW, Hex Washer head, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

29

Snapper 2860668SM

NUT, Hex Flange 1/2-13 Whiz Lock

$2.49

$

Usually ships in 2-12 days

0

30

Snapper 1928352SM

NUT, Hex Flange 3/8-16 Whiz Lock
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

31

Snapper 1923114SM

CAPSCREW, Hex Head 1/2-13 x 1 G5

$3.99

$

In Stock, only 2 left!

0

32

Snapper 1921210SM

CAPSCREW, Hex Head 3/8-16 x 1 G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

33

Snapper 1960086SM

SCREW, Truss Head Torx Drive 5/16-18 x 7/8

$4.99

$

In Stock, Qty 5

0

34

Snapper 1733581SM

PIN, Dowel

$5.99

$

Usually ships in 2-12 days

0

35

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

36

Snapper 1916966SM

LOCKWASHER, Spring, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 1923360SM

PIN, Cotter
(Superseded to 703892)

$3.49

$

In Stock, Qty 5

0

38

Snapper 1960754SM

LOCKWASHER, Spring

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 1950036SM

CAPSCREW, Hex Head

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 1667812SM

SPACER, Powdered Metal

$5.99

$

In Stock, only 2 left!

0

41

Snapper 1733403SM

FITTING, Hose Elbow, 45 Degree, 13/16-16 x 3/4-16

$30.99

$

Usually ships in 2-12 days

0

42

Snapper 1737062SM

HOSE ASSEMBLY, Hydraulic

$100.99

$

Usually ships in 2-12 days

0

43

Snapper 1737063SM

HOSE ASSEMBLY, Hydraulic

$90.99

$

Usually ships in 2-12 days

0

44

Snapper 1733501ASM

BRACKET, Hose Mounting 10GA

$21.99

$

Usually ships in 2-12 days

0

45

Snapper 1733402SM

FITTING, Bulkhead Union 13/16-16

$41.99

$

Usually ships in 2-12 days

0

46

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

47

Snapper 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

48

Snapper 1733947SM

NUT, Jam 13/16-16

$12.99

$

Usually ships in 2-12 days

0

49

Snapper 1960103SM

WASHER, 3/8

$4.49

$

In Stock, only 2 left!

0

50

Snapper 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4

$3.99

$

In Stock, only 1 left!

0

51

Snapper 1733044ASM

SUPPORT, Steering Unit 7GA

$23.99

$

Usually ships in 2-12 days

0

52

Snapper 1924856SM

CAPSCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

53

Snapper 5025472YP

PUSHNUT, 3/8
(Superseded to 703986)

$4.49

$

In Stock, Qty 10

0

54

Snapper 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

55

Snapper 1721682SM

BUSHING

$5.49

$

In Stock, Qty 20+

0
