YT 2452F (2690938-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Hood, Grille & Dash Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

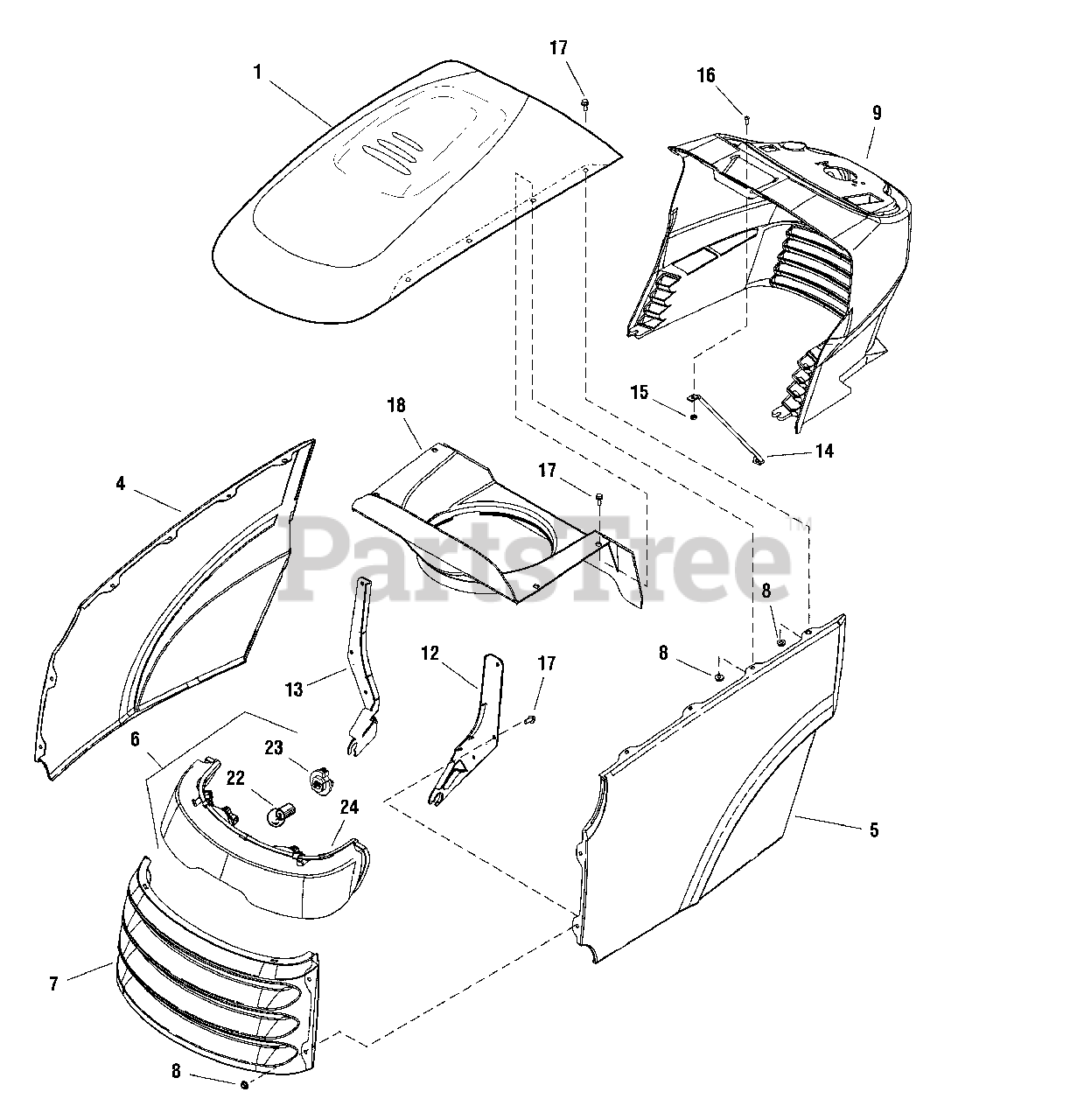

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Snapper 1722110D

HOOD, With Louvers
(Superseded to 1722110DSM)

$323.99

$

Usually ships in 2-12 days

0

4

Snapper 1721804D

PANEL, R.H. Side
(Superseded to 1721804DSM)

$181.99

$

Usually ships in 2-12 days

0

5

Snapper 1721803D

PANEL, L.H. Side
(Superseded to 1721803DSM)

$181.99

$

Usually ships in 2-12 days

0

6

Snapper 1721810

HEADLIGHT ASSEMBLY
(Superseded to 1721810SM)

Note: (Includes Ref. Nos. 22, 23 & 24)

$174.99

$

Usually ships in 2-12 days

0

7

Snapper 1721802D

GRILLE
(Superseded to 1721802DSM)

$128.99

$

Usually ships in 2-12 days

0

8

Snapper 1930641

NUT, Hex Flange 1/4-20 Whiz Lock
(Superseded to 703161)

$3.49

$

In Stock, Qty 19

0

9

Snapper 1726827

DASHBOARD
(Superseded to 1687054SM)

$184.99

$

Usually ships in 2-12 days

0

12

Snapper 5410606A

HINGE, Hood L.H.

$

$

Currently unavailable

13

Snapper 5410607A

HINGE, Hood R.H.

$

$

Currently unavailable

14

Snapper 1723123

ROD, Dash Support
(Superseded to 1723123SM)

$12.99

$

Usually ships in 2-12 days

0

15

Snapper 80002733

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

16

Snapper 1933737

SCREW, Hex Washer Head Slot #10-24 x .625
(Superseded to 1933737SM)

$3.49

$

In Stock, only 2 left!

0

17

Snapper 1960295

SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 2 left!

0

18

Snapper 7102326

DUCT, Air Inlet
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

22

Snapper 1677371

BULB, Headlight (#1156)
(Superseded to 1677371SM)

$32.99

$

Usually ships in 2-12 days

0

23

Snapper 1723451

SOCKET ASSEMBLY, Seal
(Superseded to 1723451SM)

$29.99

$

Usually ships in 2-12 days

0

24

Snapper 1722902

REFLECTOR, Headlight
(Superseded to 1721810SM)

$174.99

$

Usually ships in 2-12 days

0
