YT 2452F (2690938-00) - Snapper YT400 Series 52" Yard Tractor, 24hp Wheels & Tires Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

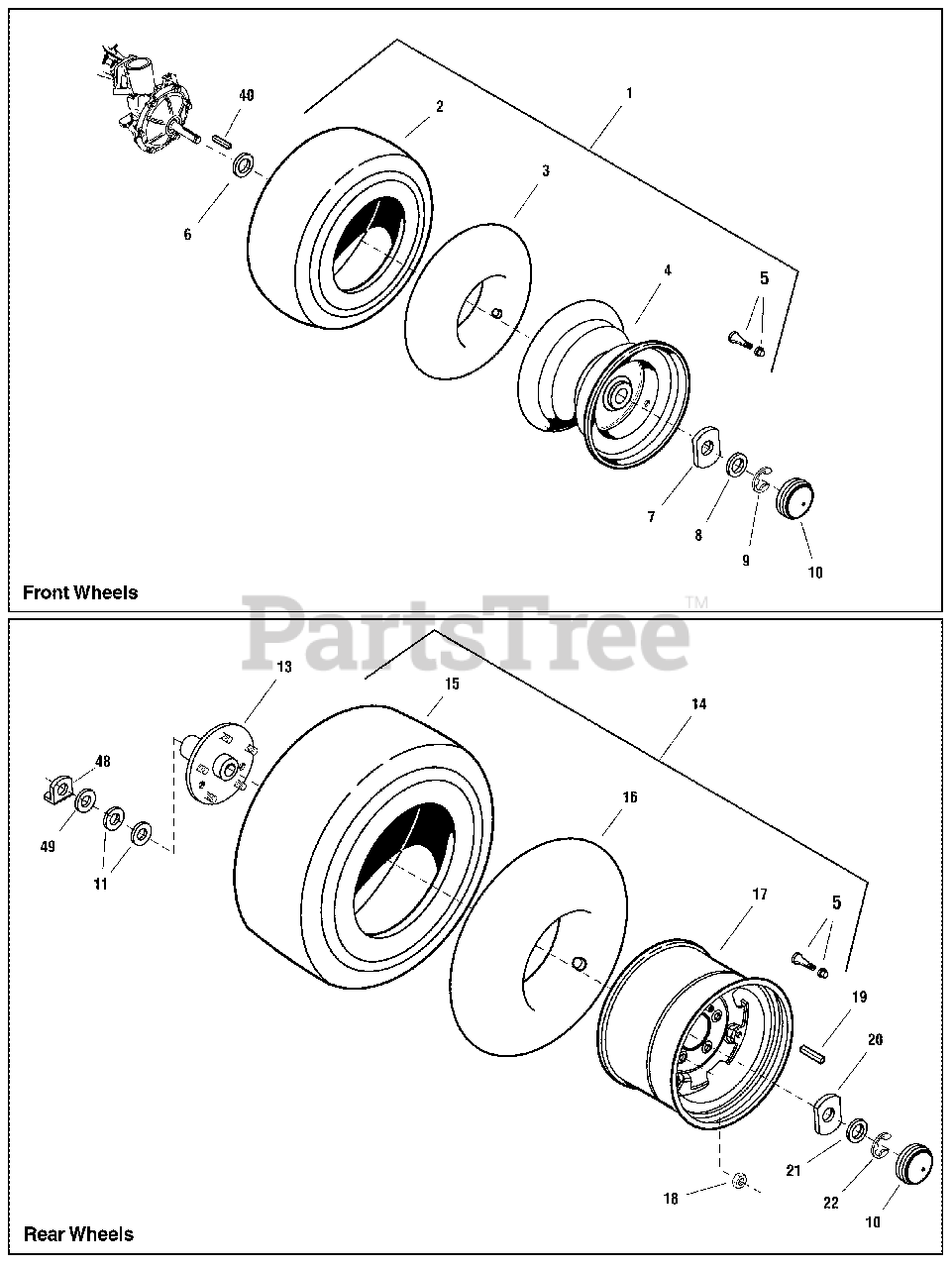

Wheels & Tires Group Parts Diagram

  • Title

1

Snapper 1735010

WHEEL & TIRE ASSEMBLY, 16X6.5-8, Front
(Superseded to 1735010SM)

Note: (Includes Ref. Nos. 2, 3, 4 & 5)

$199.99

$

Usually ships in 2-12 days

0

2

Snapper 1735706

TIRE, 16X6.5-8
(Superseded to 1735010SM)

$199.99

$

Usually ships in 2-12 days

0

3

Snapper 2153038

TUBE, Tire
(Superseded to 2153038SM)

$35.99

$

In Stock, only 2 left!

0

4

RIM, Wheel Assembly

Note: (Not a serviceable part. Order Ref. 1)

$

$

Not available

5

Snapper 2172353

VALVE STEM & CAP ASSEMBLY
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

6

Snapper 2860202

WASHER, Flat 3/4 x 1-5/8 x 1/8
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 13

0

7

Snapper 1722717

WASHER, Flat
(Superseded to 1722717SM)

$7.99

$

In Stock, only 1 left!

0

8

Snapper 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 16

0

9

Snapper 2827794

RING
(Superseded to 2827794SM)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 1722676

CAP, Hub
(Superseded to 1722676SM)

$5.49

$

In Stock, Qty 15

0

11

Snapper 1960701

WASHER, 1 x 2-1/4 x 1/8
(Superseded to 1960701SM)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 1721400

PLATE & HUB ASSEMBLY
(Superseded to 1721400SM)

$101.99

$

Usually ships in 2-12 days

0

14

Snapper 1735011

WHEEL & TIRE ASSEMBLY, 23X10.5-12, Rear
(Superseded to 1735011SM)

Note: (Includes Ref. Nos. 5, 15, 16 & 17)

$381.99

$

Usually ships in 2-12 days

0

15

Snapper 1735705

TIRE, 23X10.5-12
(Superseded to 1735011SM)

$381.99

$

Usually ships in 2-12 days

0

16

Snapper 2157638

TUBE, Tire
(Superseded to 2157638SM)

$86.99

$

In Stock, only 2 left!

0

17

WHEEL

Note: (Not a serviceable part. Order Ref. 14)

$

$

Not available

18

Snapper 2177725

NUT, Hex, 7/16-20
(Superseded to 2177725SM)

$6.49

$

In Stock, only 3 left!

0

19

Snapper 2105337

KEY, Hi-Pro 1/4 x 2
(Superseded to 2105337SM)

$8.49

$

In Stock, only 2 left!

0

20

Snapper 1722726

WASHER, Flat
(Superseded to 1722726SM)

$5.49

$

In Stock, only 3 left!

0

21

Snapper 1919394

WASHER, Flat
(Superseded to 703149)

$3.49

$

In Stock, only 1 left!

0

22

Snapper 2834712

RING
(Superseded to 2834712SM)

$4.99

$

In Stock, Qty 10

0

40

Snapper 1729279

KEY, Parallel, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

48

Snapper 1737043A

WASHER, Axle Seal
(Superseded to 1737043AYP)

$14.99

$

In Stock, only 1 left!

0

49

Snapper 2860200

WASHER, 1
(Superseded to 2860200SM)

$5.49

$

In Stock, only 1 left!

0
