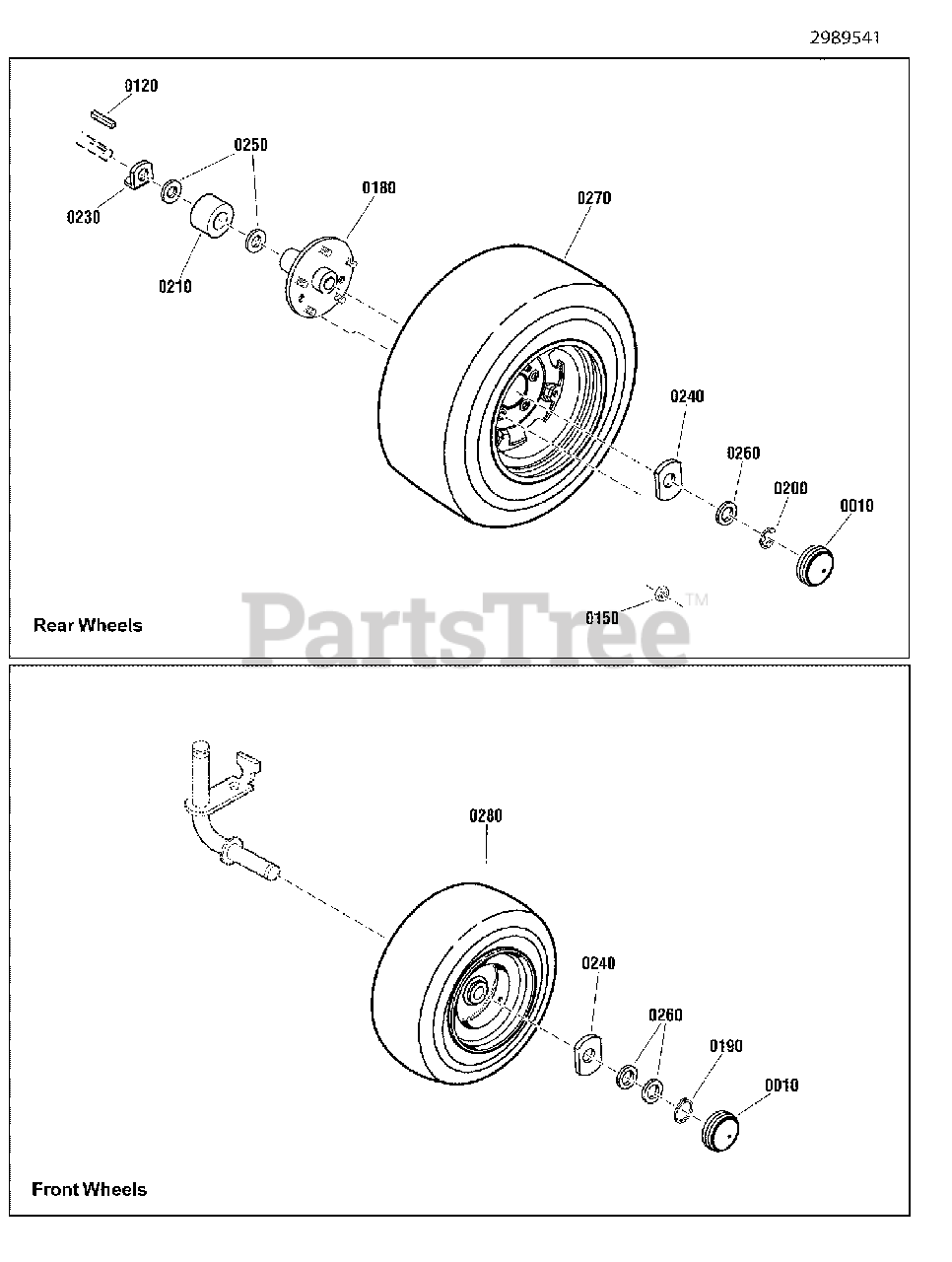

YT 2452F (2690938) - Snapper YT400 Series 52" Yard Tractor, 24hp Wheels & Tires Group Parts Diagram

YT400 Series 52" Yard Tractor, 24hp

Wheels & Tires Group Parts Diagram

  • Title

0010

Snapper 1722676SM

HUB CAP, 2.351 D, Grey Poly 1.3H

$5.49

$

In Stock, Qty 13

0

0120

Snapper 2105337SM

KEY, Hi-Pro, 1/4 x 2

$8.49

$

In Stock, only 2 left!

0

0150

Snapper 2177725SM

NUT, 7/16-20, Hex Lug

$6.49

$

In Stock, only 3 left!

0

0180

Snapper 1721400SM

PLATE & HUB ASSEMBLY, Rear Wheel w/Studs

$101.99

$

Usually ships in 2-12 days

0

0190

Snapper 2832577SM

RING, Retaining, External, #98, 0.984 Dia Shaft Yellow

$4.49

$

In Stock, Qty 18

0

0200

Snapper 2834712SM

RING-E, Retaining, External, #98, .984 Dia Shaft

$4.99

$

In Stock, Qty 10

0

0210

Snapper 1723112SM

SPACER, 1-1/16 ID, 1-1/2 OD, 1-23/32 LG

$9.99

$

Usually ships in 2-12 days

0

0230

Snapper 1737043AYP

WASHER Bracket, Axle Seal, 1.03 ID, Black

$14.99

$

In Stock, only 1 left!

0

0240

Snapper 1722726SM

WASHER, Hub Cap, 1 X 2.5

$5.49

$

In Stock, only 3 left!

0

0250

Snapper 2860200SM

WASHER, 1.05 ID X 2.25 OD X .17 Thk, Yellow

$5.49

$

In Stock, only 1 left!

0

0260

Snapper 703149

WASHER, 1.031 ID X 1.63 OD X .05, Flat, Zinc/Clear

Note: (Was 1919394 or 80003648)

$3.49

$

In Stock, only 1 left!

0

0270

Snapper 1738096YP

ASSEMBLY, Wheel & Tire, Rear, 23 X 10.50-12, Silver

$393.99

$

Usually ships in 2-12 days

0

0280

Snapper 1722305SM

ASSEMBLY, Wheel & Tire, Front, 16 X 6.50-8, Silver
(Superseded to 84002906)

$227.99

$

In Stock, only 1 left!

0

0280-10

Snapper 1717056SM

BEARING, Ball, .984 ID, 2.047 OD (Not Shown)

$33.99

$

Usually ships in 2-12 days

0

0280-20

Snapper 7012234SM

VALVE STEM & CAP, Air .453 Dia 0.88 Long (Not Shown)

Note: (Was 12172353)

$6.49

$

In Stock, only 2 left!

0
