YT 42 DXLS (960430262-00) - Husqvarna 42" Yard Tractor (2017-11) ENGINE Parts Diagram

42" Yard Tractor

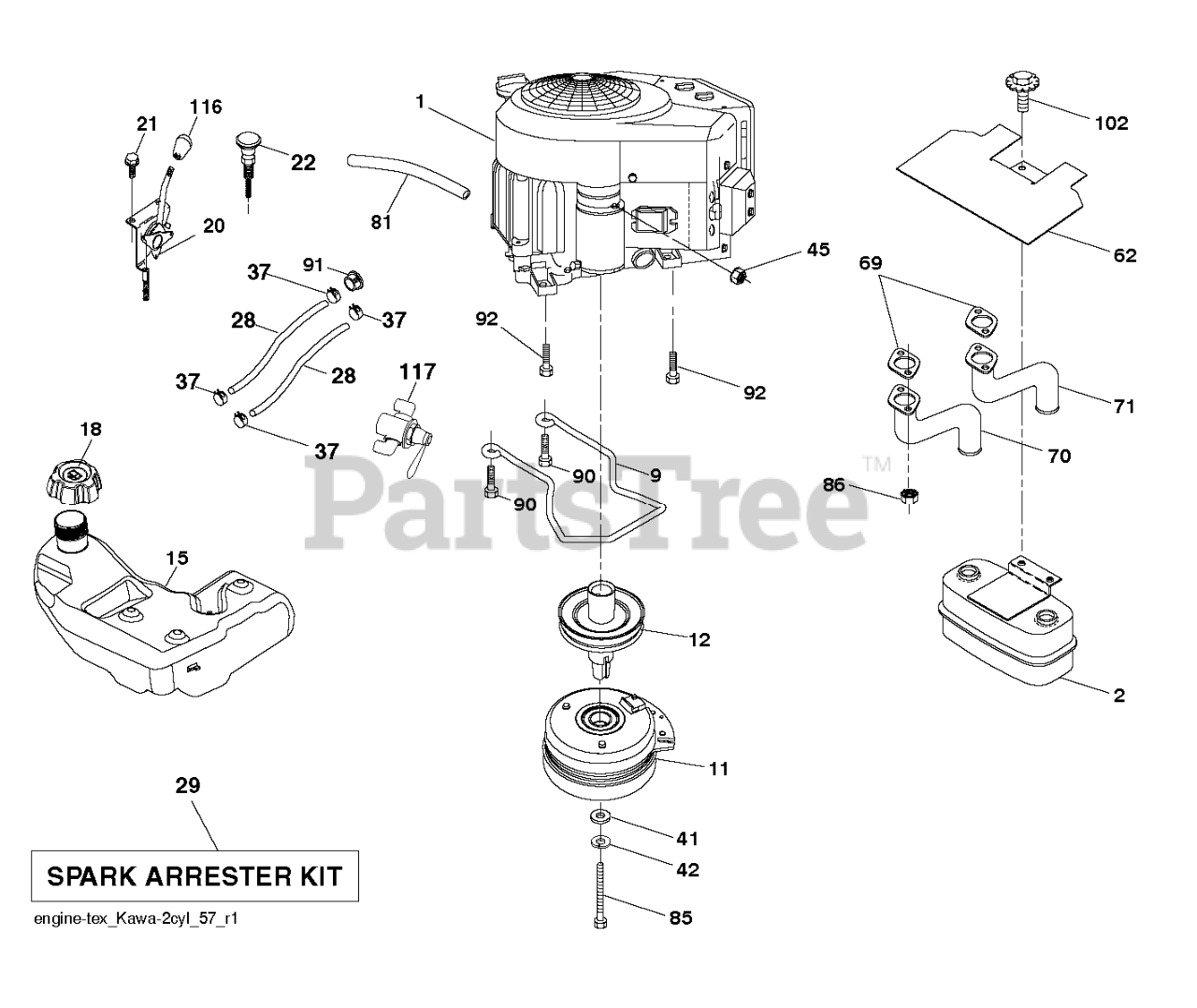

ENGINE Parts Diagram

  • Title

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$23.99

$

In Stock, only 4 left!

0

15

Husqvarna 532438022

TANK.ASM.FUEL.4R.GAL.EPA.18
(Superseded to 529999002)

$

$

Not available

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$33.99

$

In Stock, only 4 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$7.49

$

In Stock, only 1 left!

0

1

000000000

Note: Engine kaWA FR561V-AS28R (593006001) (Order parts from engine manufacter)

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$45.99

$

In Stock, only 2 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$39.99

$

In Stock, only 2 left!

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 17

0

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 3 left!

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$35.99

$

In Stock, only 1 left!

0

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$359.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$33.99

$

In Stock, only 2 left!

0
